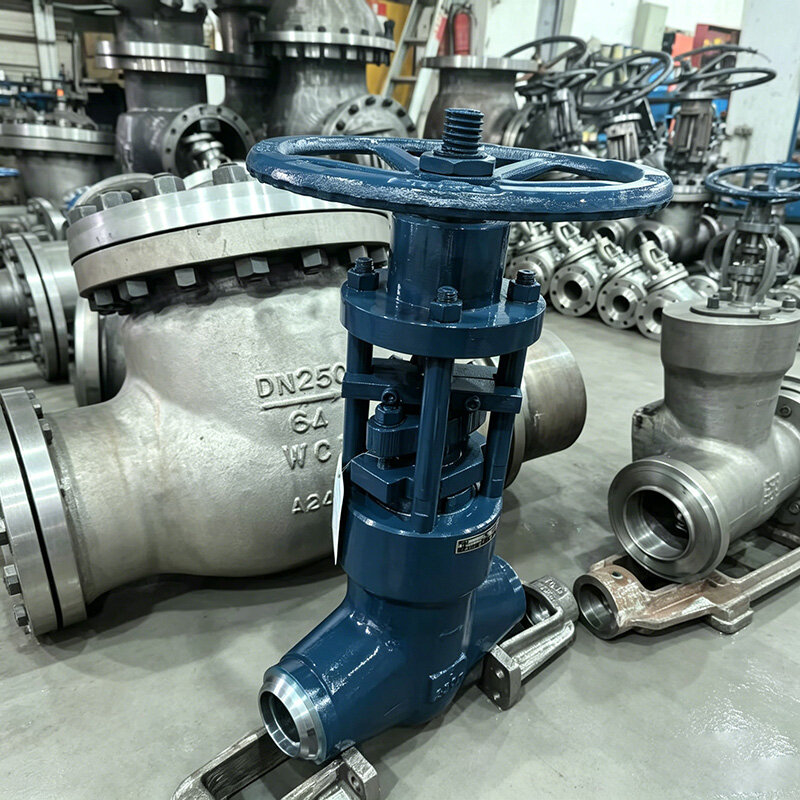

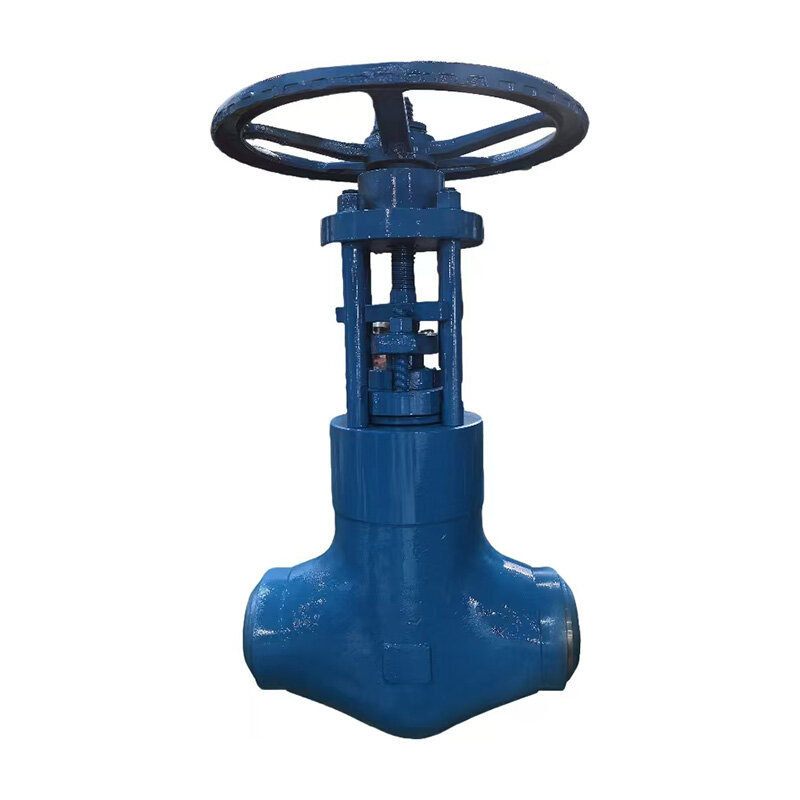

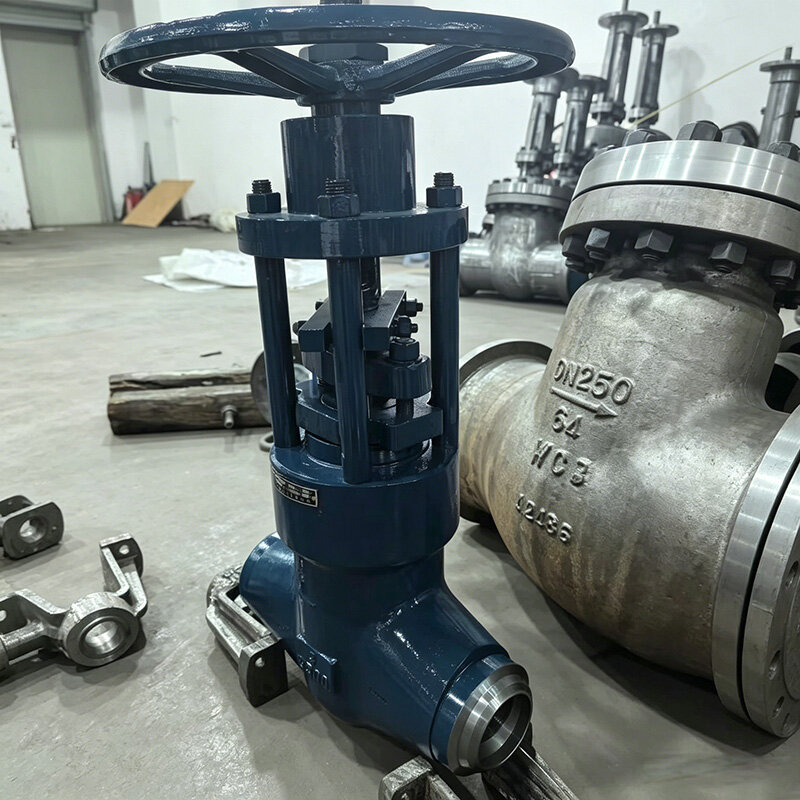

2500LB Forged BW High Pressure API600 Globe Valve - Industrial Extreme Pressure Flow Control Valve

Product Overview

The 2500LB Forged BW High Pressure API600 Globe Valve is an extreme-pressure industrial flow control valve engineered for critical high-pressure applications, combining the superior strength of forged steel with strict compliance to API 600 standards. Constructed from premium forged steel (ASTM A105 carbon steel as standard, optional ASTM A182 F22/F91 alloy steel for high-temperature services), this valve features butt-welded (BW) end connections (ASME B16.25) for permanent, leak-proof installation and a precision globe valve design for accurate flow regulation and tight shutoff. Rated for 2500LB (PN 420) pressure class, it operates seamlessly in temperatures ranging from -29℃ to 593℃ (-20°F to 1100°F) and pressures up to 42.0 MPa (6090 psi) , making it a trusted choice for oil & gas upstream/downstream, petrochemical, power generation, and nuclear auxiliary systems. Designed to withstand extreme pressure cycling and corrosive media, this valve delivers unparalleled reliability and durability in harsh industrial environments.

Core Product Features

1. API 600 Standard Compliance

Fully adheres to API 600 specifications for bolted bonnet steel globe valves, including heavy-wall forged body construction, full-port flow channels, and robust internal components designed for petroleum refinery and extreme-pressure services. Complies with API 598 (inspection and testing) and ASME B16.34 (pressure-temperature ratings), ensuring dimensional accuracy, interchangeability, and leak-free performance (ASME B16.104 Class VI leakage rating) . API certification guarantees compliance with global industrial requirements, facilitating cross-border procurement for critical projects.

2. 2500LB (PN 420) Extreme Pressure Rating

Rated for working pressures up to 42.0 MPa (6090 psi) at ambient temperatures, with pressure-temperature ratings aligned to ASME B16.34 standards . The forged steel body and reinforced internal structure handle extreme pressure cycling, making it suitable for high-pressure steam systems, chemical injection lines, and oil & gas wellhead applications. At 500℃ (932°F), the valve maintains a working pressure of 97.9 psig (6.75 MPa), ensuring performance stability in high-temperature 高压工况 .

3. Butt-Welded (BW) End Connection

Equipped with butt-welded ends per ASME B16.25 standards, eliminating flange-related leakage risks and ensuring a permanent, secure connection to industrial pipelines . The welded design is ideal for high-pressure, high-vibration, or corrosive environments where flanged connections may fail, while also reducing installation space and weight compared to flanged valves. Compatible with standard pipe sizes (1/2"–12" / DN15–DN300) for seamless integration into existing systems.

4. Premium Forged Steel Construction

Manufactured from ASTM A105 carbon steel forged components—offering superior mechanical strength (tensile strength ≥485MPa), impact resistance, and density compared to cast steel . Forged eliminates internal defects such as porosity and shrinkage, ensuring structural integrity in extreme pressure conditions. Optional alloy steel materials include ASTM A182 F22 (2.25Cr-1Mo) for high-temperature services up to 593℃ (1100°F) and F91 for ultra-high-temperature applications, providing excellent creep resistance and corrosion resistance .

5. Precise Flow Control & Tight Shutoff

Globe valve’s linear motion plug-and-seat design provides accurate throttling and flow regulation, ideal for applications requiring precise media control (e.g., pressure regulation, catalyst injection). The valve disc and seat feature Stellite-hardened sealing surfaces (API 598 Trim 8), ensuring tight shutoff (ASME B16.104 Class VI leakage standard) and resistance to wear, erosion, and high-temperature oxidation . The dual-sealing design (metal-to-metal + optional soft seal) guarantees zero leakage even in extreme pressure cycling.

6. Pressure Self-Sealing Bonnet Design

Features a pressure self-sealing bonnet structure that enhances sealing performance as pressure increases, eliminating the risk of bonnet leakage in high-pressure applications . The bolted bonnet with backseat design allows in-line maintenance—inspection, repair, or replacement of internal components (stem, plug, seat)—without removing the valve from the pipeline, reducing downtime and maintenance costs.

7. Wide Operating Temperature Range

Suitable for extreme temperature conditions from -29℃ (-20°F) to 593℃ (1100°F) (F22 alloy steel) , adapting to diverse industrial environments such as high-temperature steam systems, low-temperature process lines, and ambient-temperature fluid transfer. The forged steel material maintains toughness and mechanical strength across the entire temperature range, avoiding embrittlement or performance degradation.

Technical Specifications

Applications

The 2500LB Forged BW High Pressure API600 Globe Valve is widely used in extreme-pressure industrial systems, including:

• Oil & gas exploration and production (wellheads, high-pressure manifolds, hydraulic fracturing)

• Petrochemical and chemical processing (high-pressure reactors, chemical injection lines, molten salt systems)

• Power generation (supercritical thermal power plants, boiler feedwater systems, steam turbines)

• Nuclear auxiliary systems (high-pressure coolant lines, safety systems)

• Marine and offshore industrial systems (offshore platforms, subsea pipelines)

• Mining and mineral processing (high-pressure slurry pipelines, hydraulic systems)

Why Choose Our 2500LB Forged BW API600 Globe Valve?

✅ Extreme Pressure Capacity: 2500LB (PN 420) rating handles up to 42.0 MPa (6090 psi), suitable for critical high-pressure applications .

✅ Forged Steel Durability: Forged construction eliminates internal defects, offering superior strength and creep resistance compared to cast steel .

✅ Leak-Proof Welded Connections: BW ends per ASME B16.25 eliminate flange leakage risks, ideal for high-pressure cycling .

✅ API-Certified Reliability: Complies with global API 600 standards for consistent performance in critical industrial applications.

✅ Precise Flow Control: Globe valve design enables accurate throttling and tight shutoff, optimizing operational efficiency and safety.

✅ Customization Flexibility: Optional alloy steel materials (F22/F91) and actuation types (gear/electric/pneumatic) to meet specific

Order & Certification Information

Contact our technical sales team for personalized quotes, 2D/3D drawings, material certificates (ASTM A105/A182), or sample requests. We provide professional extreme-pressure valve solutions and global logistics support to ensure project success.

• Minimum Order Quantity (MOQ): 1 Unit

• Lead Time: 15-35 Working Days (Standard Sizes); Customized Orders: 35-50 Working Days

• Payment Terms: T/T (30% Advance + 70% Against B/L Copy), L/C, Western Union

• Shipping: Sea Freight (FCL/LCL), Air Freight, Express (DHL/FedEx/UPS)

• Packaging: Anti-corrosion Coating + Wooden Case + Custom Labeling (Meets Export Standards)

• After-Sales Service: 12-Month Warranty, Technical Support, and Spare Parts Supply

What Is a High Pressure API600 Globe Valve

A High Pressure API600 Globe Valve is a heavy duty flow control valve engineered for severe operating conditions involving elevated pressure and temperature. Designed according to API600 requirements, it uses a linear motion mechanism in which the disc moves against the seat to regulate or stop the flow of media. Its rugged construction and precision sealing surfaces provide reliable performance in demanding environments. These valves are commonly installed in power plants, refinery systems, petrochemical facilities, and steam service applications.

Why the High Pressure API600 Globe Valve Matters

The High Pressure API600 Globe Valve is important because it provides accurate flow regulation and dependable shutoff in critical process systems. Its robust design helps maintain stable operation while resisting thermal stress and pressure fluctuations. Reliable sealing performance minimizes leakage and protects valuable equipment from unstable flow conditions. In industries where safety and continuous operation are essential, this valve plays a key role in supporting efficient and secure process control.

Common Product Types by High Pressure API600 Globe Valve

High Pressure API600 Globe Valves are available in several configurations to accommodate different process requirements. Standard pattern designs are widely used for general flow regulation, while angle pattern valves are selected when changes in flow direction are necessary. Y pattern valves are preferred for applications requiring lower flow resistance. Depending on service conditions, the valves may feature bolted bonnets, pressure seal bonnets, or welded bonnets. Manual, electric, pneumatic, and gear operated versions are also available.

Key Advantages of High Pressure API600 Globe Valve

The High Pressure API600 Globe Valve offers outstanding flow control accuracy and reliable sealing capability. Its heavy duty structure provides excellent resistance to high pressure and elevated temperatures. Precision machined trim components contribute to smooth operation and extended service life. The valve supports various actuation methods, allowing easy integration into automated systems. Durable materials and wear resistant sealing surfaces help reduce maintenance requirements and ensure long term operational reliability.

High Pressure API600 Globe Valve Machine Structure and Core Stations

Production begins with forging or casting the body, bonnet, stem, and disc from materials selected for severe service applications. Core manufacturing stations include heat treatment, precision machining, and hardfacing of critical sealing surfaces to improve durability and wear resistance. Assembly stations install the stem, disc, packing system, bonnet, and operating mechanism. Final operations include pressure testing, leakage inspection, surface treatment, cleaning, marking, and packaging to guarantee reliable sealing performance and consistent product quality.
