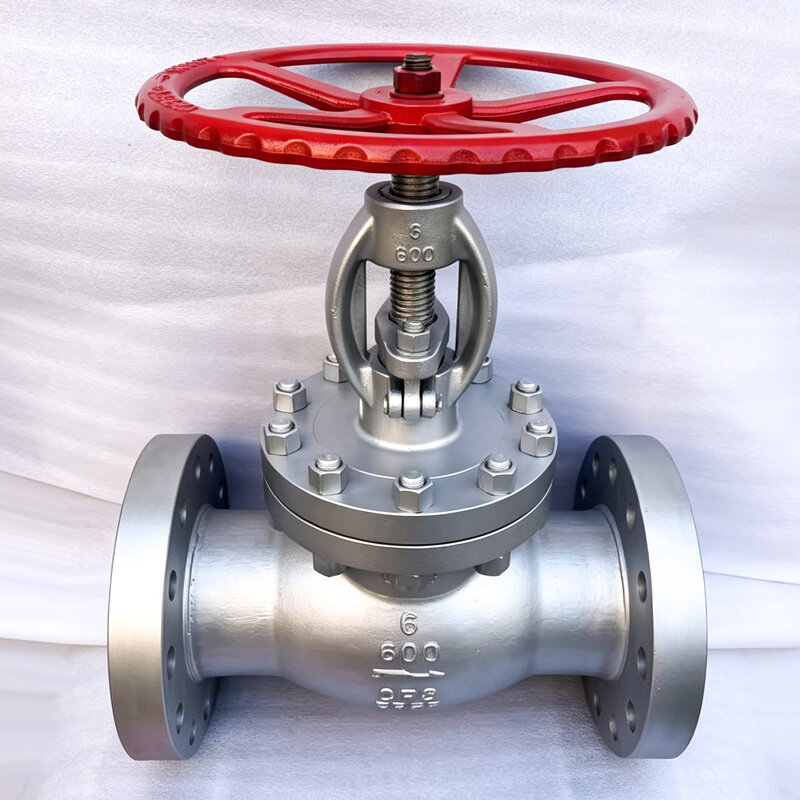

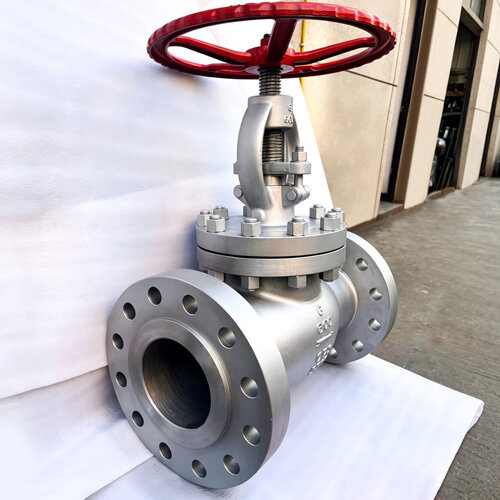

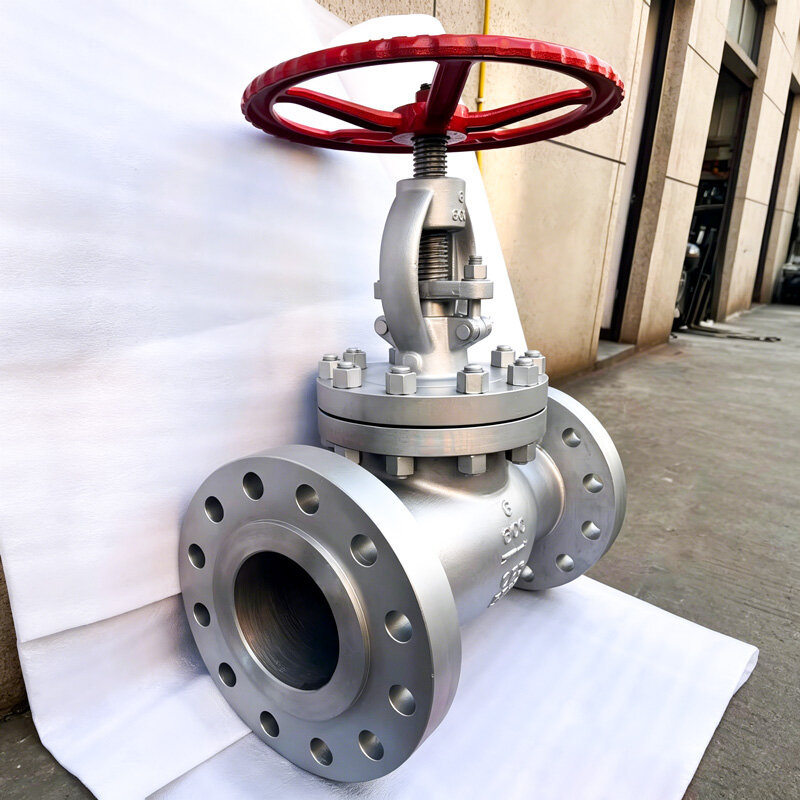

600LB 316L Stainless Steel Flanged API Globe Valve

Product Overview

The 600LB 316L Stainless Steel Flanged API Globe Valve is a high-performance industrial flow control valve engineered for high-pressure (600LB/PN100) and corrosive applications, integrating the superior anti-corrosion properties of 316L stainless steel with strict compliance to API 600 standards. As an austenitic stainless steel (ASTM A479 F316L for wrought components, ASTM A351 CF8M for cast parts) , 316L features ultra-low carbon content (≤0.03%) and 2.0-3.0% molybdenum, delivering exceptional resistance to chloride pitting, crevice corrosion, and intergranular corrosion — critical for harsh media such as seawater, acids, and chemical solvents. Rated for 600LB (10.2 MPa / 1480 psi) working pressure and equipped with ASME B16.5 flanged connections, this valve operates reliably in temperatures ranging from -196℃ to 450℃ (-320°F to 842°F), providing precise throttling, tight shutoff (API 598 Class IV), and long-term durability. Widely trusted in oil & gas, chemical processing, marine, and pharmaceutical industries, it excels in handling corrosive, high-purity, and high-pressure media.

Key Features & Advantages

1.Premium 316L Stainless Steel Construction

Manufactured from 316L stainless steel (UNS S31603) — the industry standard for corrosion resistance — with chemical composition including 16.0-18.0% chromium, 10.0-14.0% nickel, 2.0-3.0% molybdenum, and ≤0.03% carbon . The molybdenum addition enhances resistance to chloride-containing media (e.g., seawater, brine, bleach) and organic/inorganic acids, while the ultra-low carbon content prevents sensitization during welding, eliminating intergranular corrosion risks without post-weld heat treatment (PWHT) . Mechanical properties include tensile strength ≥485 MPa, yield strength ≥170 MPa, and elongation ≥40% , ensuring structural integrity under high-pressure cycling. The material maintains toughness in cryogenic conditions down to -196℃ and resists oxidation at temperatures up to 450℃.

2.API 600 Standard Compliance

Fully adheres to API 600 specifications for bolted bonnet steel globe valves, including heavy-wall body construction, precision stem guiding, and strict dimensional tolerances . Complies with API 598 (inspection and testing) and ASME B16.34 (pressure-temperature ratings), ensuring interchangeability with API 600-compliant valves and leak-free performance . The valve’s structure length meets ASME B16.10 standards, while flanged connections align with ASME B16.5, facilitating seamless integration into global industrial piping systems . API certification guarantees compliance with oil & gas, chemical, and power generation industry requirements.

3.600LB (PN100) High-Pressure Rating

Rated for working pressures up to 10.2 MPa (1480 psi) at ambient temperatures, with pressure-temperature ratings strictly aligned to ASME B16.34 standards . At 300℃ (572°F), the valve retains a working pressure of 7.6 MPa (1102 psi), ensuring stable performance in high-pressure corrosive systems such as chemical reactors, offshore pipelines, and high-pressure pump discharge lines . The reinforced 316L body and forged stem (ASTM A479 F316L) handle pressure cycling without deformation, while the pressure self-sealing bonnet design enhances sealing reliability at extreme pressures .

4.ASME B16.5 Flanged Connections

Equipped with flanged ends per ASME B16.5 standards, available in RF (Raised Face) or RTJ (Ring Type Joint) configurations for secure, leak-proof installation . The flanged design enables easy assembly, disassembly, and maintenance, compatible with standard industrial flanges across sizes from 1/2" to 20" (DN15 to DN500) . Ideal for applications requiring frequent inspection or system modifications, the flanged connection ensures reliable sealing even in cyclic pressure conditions, with gasket compatibility for high-temperature high-pressure (HTHP) services.

5.Precise Flow Control & Tight Shutoff

Features a linear motion plug-and-seat design optimized for throttling and on-off service, with a cone-shaped valve disc that provides precise flow regulation . The valve disc and seat are precision-machined, with optional Stellite 6 overlay welding (hardness HRC ≥55) for enhanced wear, erosion, and high-temperature resistance . The metal-to-metal seal meets API 598 Class IV leakage standards, preventing media waste and environmental hazards in critical applications . The streamlined flow channel minimizes pressure drop while reducing cavitation and noise in high-pressure systems .

6.Robust & Low-Maintenance Design

Bolted bonnet construction with a backseat design allows in-line maintenance — inspection, repair, or replacement of internal components (stem, disc, seat) — without removing the valve from the pipeline . The one-piece forged 316L stainless steel stem ensures corrosion resistance and structural integrity, while the rising stem design provides visual confirmation of valve position for easy operation monitoring . All wetted parts are manufactured from 316L or compatible corrosion-resistant materials, extending service life in harsh environments. The valve’s heavy-wall construction (per API 600) resists external impact and pressure surges .

7.Wide Operating Temperature Range

Suitable for extreme temperature conditions from -196℃ (-320°F) to 450℃ (842°F) . The austenitic structure of 316L stainless steel maintains toughness in cryogenic services (e.g., liquid nitrogen, LNG) and resists oxidation at high temperatures, adapting to diverse industrial environments from pharmaceutical cleanrooms to offshore oil rigs.

Technical Specifications

Applications

The 600LB 316L Stainless Steel Flanged API Globe Valve is ideally suited for:

•Oil & gas upstream/downstream (offshore platforms, wellhead manifolds, product pipelines)

•Chemical & petrochemical processing (acids, alkalis, solvents, chloride-containing media)

•Marine and offshore systems (seawater cooling, ballast lines, offshore utilities)

•Pharmaceutical & biotechnology (sterile process lines, clean-in-place (CIP) systems)

•Water treatment (desalination plants, brine handling, corrosive wastewater systems)

•Power generation (auxiliary systems, high-pressure chemical feed lines)

•Food & beverage industry (high-purity fluid transfer, corrosive cleaning agents)

Why Choose Our 600LB 316L API Globe Valve?

✅ Superior Corrosion Resistance: 316L’s molybdenum content and ultra-low carbon eliminate chloride pitting and intergranular corrosion .

✅ API 600 High-Pressure Reliability: Complies with global standards for HTHP critical applications, ensuring safe operation at 600LB .

✅ Precise Flow Regulation: Globe valve design enables accurate throttling, ideal for pressure control and high-pressure differential systems .

✅ Easy Installation & Maintenance: ASME B16.5 flanged connections and bolted bonnet facilitate quick assembly and in-line service .

✅ Wide Temperature Adaptability: Operates from cryogenic -196℃ to 450℃, adapting to diverse harsh .

✅ Durable Construction: Forged 316L stem and Stellite-hardened seats resist wear and erosion, extending service life.

Order Information

•Minimum Order Quantity (MOQ): 1 Unit

•Lead Time: 12-30 Working Days (Standard Sizes); Customized Orders: 30-45 Working Days

•Payment Terms: T/T (30% Advance + 70% Against B/L Copy), L/C, Western Union

•Shipping: Sea Freight (FCL/LCL), Air Freight, Express (DHL/FedEx/UPS)

•Packaging: Anti-corrosion Coating + Wooden Case + Custom Labeling (Meets Export Standards)

•After-Sales Service: 12-Month Warranty, Technical Support, Spare Parts Supply

•Certifications Provided: Material Mill Test Certificate (EN 10204 3.1), API 598 Test Report, ISO 9001 Certificate, NACE MR0175 (Optional), FDA Compliance (for Sanitary Applications)

Contact our technical sales team for personalized quotes, 2D/3D drawings, ASTM A479/A351 material certificates, or sample requests. We provide tailored high-pressure corrosion-resistant valve solutions to meet your specific application needs.

What Is a 600LB 316L Stainless Steel Flanged API Globe Valve

A 600LB 316L Stainless Steel Flanged API Globe Valve is a precision control valve designed to start, stop, and regulate fluid flow in industrial pipelines. It features a globe style body with a movable disc that travels vertically onto a seat to create tight shutoff and accurate throttling. Manufactured from 316L stainless steel, the valve provides excellent corrosion resistance and cleanliness. Flanged ends allow secure installation, and API design standards ensure dependable performance in demanding applications.

Why the 600LB 316L Stainless Steel Flanged API Globe Valve Matters

This valve is important because it combines precise flow regulation with strong sealing in corrosive and high pressure systems. The 316L stainless steel material resists pitting, crevice corrosion, and contamination, making it suitable for aggressive chemicals and high purity processes. The flanged connection offers easy maintenance and reliable sealing. API compliant construction ensures consistent quality, helping protect equipment and maintain stable operation in critical industrial environments.

Common Product Types by 600LB 316L Stainless Steel Flanged API Globe Valve

Common product types include standard pattern globe valves for general shutoff and throttling, angle globe valves for changing flow direction, and Y pattern globe valves for reduced pressure loss. Bellows sealed versions are used where fugitive emissions must be minimized. Outside screw and yoke designs are widely selected for easy visual stem position indication. Various trim materials and seat configurations are available to suit different media and service conditions.

Key Advantages of 600LB 316L Stainless Steel Flanged API Globe Valve

The valve offers excellent corrosion resistance, precise flow control, and dependable shutoff. The low carbon content of 316L stainless steel reduces the risk of weld related corrosion and supports long service life. Flanged ends simplify installation and replacement. The robust disc and seat design withstand frequent operation, while API compliant construction provides consistent performance, reduced maintenance requirements, and reliable sealing in harsh process conditions.

600LB 316L Stainless Steel Flanged API Globe Valve Machine Structure and Core Stations

Production begins with casting or forging the body, bonnet, disc, and stem from 316L stainless steel. Core stations include CNC machining of flange faces, seat pockets, stem threads, and sealing surfaces. Assembly stations install the stem, disc, packing, gasket, and handwheel. Final operations include seat lapping, pressure testing, surface cleaning, passivation, marking, and packaging. Each station ensures dimensional accuracy, corrosion resistance, and leak tight performance.
