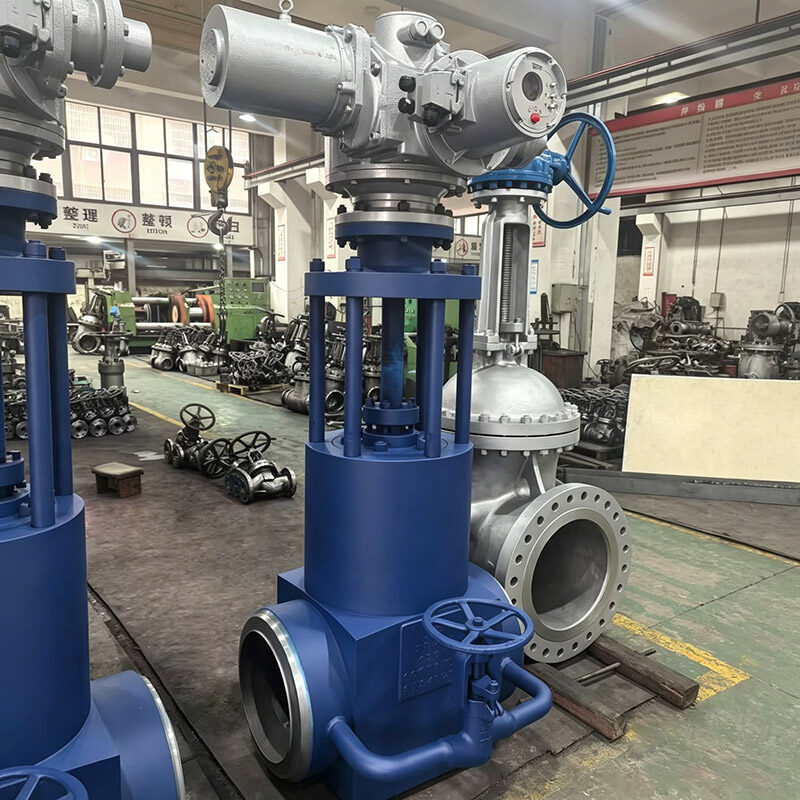

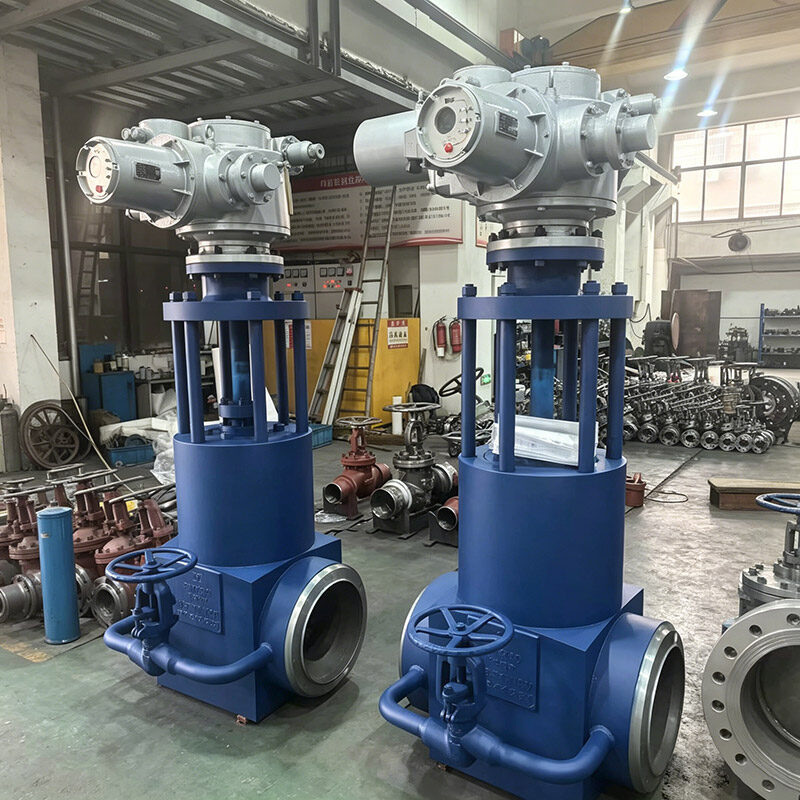

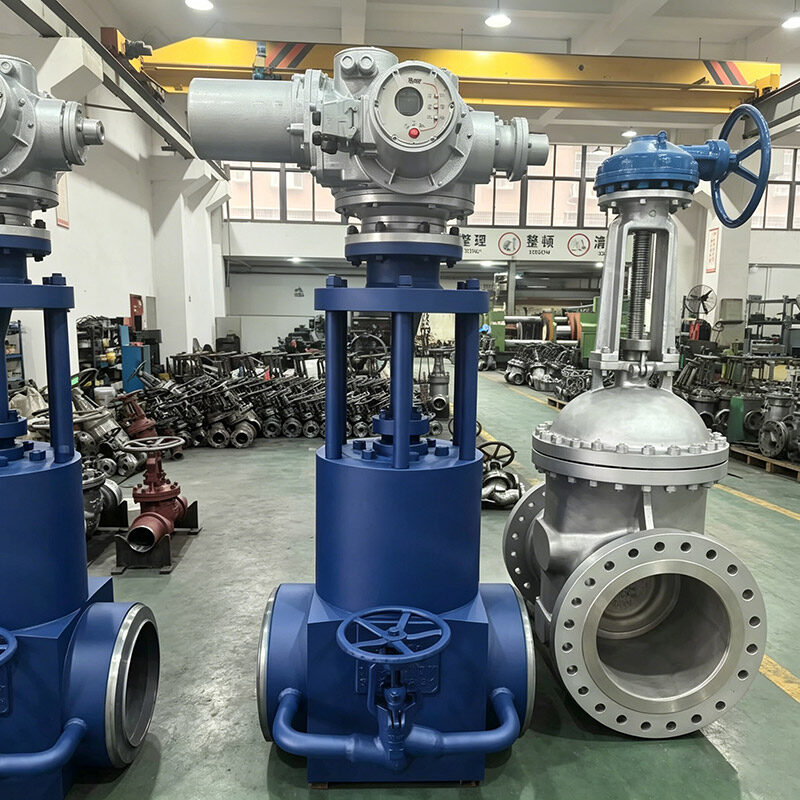

2500LB Integrally Forged High Temperature High Pressure Gate Valve

Product Overview

The 2500LB Integrally Forged High Temperature High Pressure Gate Valve is an extreme-service industrial valve engineered for critical high-pressure (2500LB/PN420) and high-temperature applications, featuring integrally forged construction for unparalleled structural integrity. Manufactured from premium forged alloy steel (ASTM A182 F22/F91 as standard, optional Inconel for ultra-corrosive services), this valve delivers exceptional creep resistance, pressure-bearing capacity, and thermal stability, operating reliably up to 650℃ (1200°F) and 42.0 MPa (6090 psi). Designed with a bolted bonnet, rigid wedge disc, and full-port flow channel, it ensures tight shutoff (API 598 Class IV) and minimal flow resistance, fully complying with API 600, ASME B16.34, and ASME B16.25 standards. Widely adopted in oil & gas wellheads, petrochemical high-pressure reactors, power generation supercritical systems, and hydrogen service pipelines, it provides long-term durability in extreme temperature-pressure cycling environments.

Key Features & Advantages

1.Integrally Forged Construction

Adopts one-piece integral forging process (ASTM A182 standard) for body, bonnet, and internal components, eliminating internal defects such as porosity, shrinkage, and weld seams. The forged structure ensures uniform material density, tensile strength ≥690 MPa, and yield strength ≥415 MPa, enabling superior resistance to high-pressure impact and thermal fatigue compared to cast valves. Ideal for extreme service conditions where structural failure is intolerable.

2.2500LB (PN420) Extreme Pressure Rating

Rated for working pressures up to 42.0 MPa (6090 psi) at ambient temperatures, with pressure-temperature ratings strictly aligned to ASME B16.34 standards. At 538℃ (1000°F), the valve retains a working pressure of 24.1 MPa (3495 psi), ensuring stable performance in high-temperature high-pressure (HTHP) systems such as supercritical steam lines and high-pressure hydrogen pipelines.

3.High Temperature Tolerance Up to 650℃

Constructed from F22 (2.25Cr-1Mo) alloy steel for standard high-temperature service (up to 595℃/1100°F) or F91 (9Cr-1Mo-V-Nb) alloy steel for ultra-high-temperature applications (up to 650℃/1200°F). Both materials offer excellent creep resistance and oxidation resistance, preventing deformation or failure during long-term exposure to high-heat media (e.g., molten salt, superheated steam, hot hydrogen).

4.API 600 Standard Compliance

Fully adheres to API 600 specifications for heavy-duty bolted bonnet gate valves, including heavy-wall forging design, full-port flow channels, and pressure self-sealing bonnet. Complies with API 598 (inspection and testing) and NACE MR0175 (optional for sour service), ensuring dimensional accuracy, interchangeability, and leak-free performance (API 598 Class IV leakage rating). API certification facilitates cross-border procurement for critical industrial projects.

5.Reliable Shutoff & Flow Efficiency

Features a rigid wedge disc design with precision-machined seating surfaces, overlay-welded with Stellite 6 for enhanced wear, erosion, and corrosion resistance. The full-port flow channel minimizes pressure drop (Cv value optimized) when fully open, reducing energy consumption for large-volume fluid transfer. The metal-to-metal seal with backseat design ensures tight shutoff and prevents bonnet leakage in extreme pressure cycling.

6.Flexible End Connections & Low Maintenance

End connections available in butt-welded (ASME B16.25) or flanged (ASME B16.5, RTJ face) configurations, adapting to diverse installation requirements. The bolted bonnet design allows in-line maintenance—inspection, repair, or replacement of internal components (stem, disc, seat)—without removing the valve from the pipeline, reducing downtime and operational costs. Optional electric/pneumatic actuation is available for remote control in inaccessible locations.

Technical Specifications

Applications

The 2500LB Integrally Forged High Temperature High Pressure Gate Valve is ideally suited for extreme HTHP industrial systems, including:

•Oil & gas exploration and production (wellheads, high-pressure manifolds, hydraulic fracturing)

•Petrochemical and chemical processing (high-pressure reactors, molten salt systems, chemical injection lines)

•Power generation (supercritical thermal power plants, main steam lines, boiler feedwater systems)

•Hydrogen service systems (high-pressure hydrogen pipelines, hydrogen reformers)

•Sour gas processing (NACE MR0175 compliant configurations for H2S-containing media)

•Nuclear auxiliary systems (high-pressure coolant lines, safety systems)

Why Choose Our 2500LB Integrally Forged Gate Valve?

✅ Superior Structural Integrity: Integral forging eliminates internal defects, offering unmatched pressure-bearing capacity and durability.

✅ Extreme Temperature-Pressure Tolerance: 2500LB (PN420) rating + 650℃ max temperature, adapting to HTHP critical applications.

✅ API-Certified Reliability: Complies with API 600/ASME standards for consistent performance in harsh industrial environments.

✅ Corrosion & Creep Resistance: F22/F91 alloy steel prevents oxidation, creep deformation, and hydrogen attack.

✅ Tight Shutoff Performance: Stellite-hardened seating surfaces ensure leak-free operation, protecting personnel and equipment.

✅ Global Compatibility: International standards and diverse end connections facilitate cross-border project integration.

Order Information

•Minimum Order Quantity (MOQ): 1 Unit

•Lead Time: 15-35 Working Days (Standard Sizes); Customized Orders: 35-50 Working Days

•Payment Terms: T/T (30% Advance + 70% Against B/L Copy), L/C, Western Union

•Shipping: Sea Freight (FCL/LCL), Air Freight, Express (DHL/FedEx/UPS)

•Packaging: Anti-corrosion Coating + Wooden Case + Custom Labeling (Meets Export Standards)

•After-Sales Service: 12-Month Warranty, Technical Support, Spare Parts Supply

•Certifications Provided: Material Mill Test Certificate (EN 10204 3.1), API 598 Test Report, ISO 9001 Certificate, NACE MR0175 (Optional)

Contact our technical sales team for personalized quotes, 2D/3D drawings, material certificates, or sample requests. We provide tailored extreme-pressure valve solutions to meet your specific application needs.

What Is a 2500LB Integrally Forged High Temperature High Pressure Gate Valve

A 2500LB Integrally Forged High Temperature High Pressure Gate Valve is a heavy duty isolation valve designed for severe operating conditions. The body and bonnet are produced from forged steel, creating a dense and highly durable structure with excellent mechanical strength. The valve uses a rising gate to provide full open or full closed service with minimal flow resistance. It is widely used in steam, power generation, refinery, and petrochemical systems where extreme pressure and temperature are present.

Why the 2500LB Integrally Forged High Temperature High Pressure Gate Valve Matters

This valve is critical in applications where system integrity and operational safety are essential. High temperature and pressure can place intense stress on pipeline components, making forged construction a valuable feature for resisting deformation and cracking. The valve delivers reliable shutoff, protects downstream equipment, and supports stable process control. Its rugged design helps reduce maintenance requirements and ensures dependable performance during long term continuous operation.

Common Product Types by 2500LB Integrally Forged High Temperature High Pressure Gate Valve

Common product types include bolted bonnet gate valves, pressure seal gate valves, and welded bonnet gate valves. Solid wedge designs are used for high temperature service, while flexible wedge designs compensate for thermal expansion. Outside screw and yoke configurations provide visible stem movement and easier maintenance. Different seat and trim materials are available to improve resistance to wear, erosion, and corrosion in specialized applications.

Key Advantages of 2500LB Integrally Forged High Temperature High Pressure Gate Valve

The valve offers exceptional structural strength, excellent resistance to thermal stress, and dependable shutoff performance. Forged steel construction provides a uniform grain structure that improves toughness and durability. Full bore flow minimizes pressure loss when the valve is fully open. The robust seating surfaces withstand repeated cycling, while the heavy duty design supports long service life in demanding industrial environments.

2500LB Integrally Forged High Temperature High Pressure Gate Valve Machine Structure and Core Stations

Manufacturing begins with forging the body, bonnet, wedge, and stem to create high strength components. Core stations include heat treatment, rough machining, precision machining of sealing surfaces and threads, and hardfacing of seats and wedge surfaces. Assembly stations install the stem, wedge, packing, and bonnet. Final stations conduct pressure testing, high temperature inspection, surface treatment, marking, and packaging to ensure sealing integrity and dimensional accuracy.
