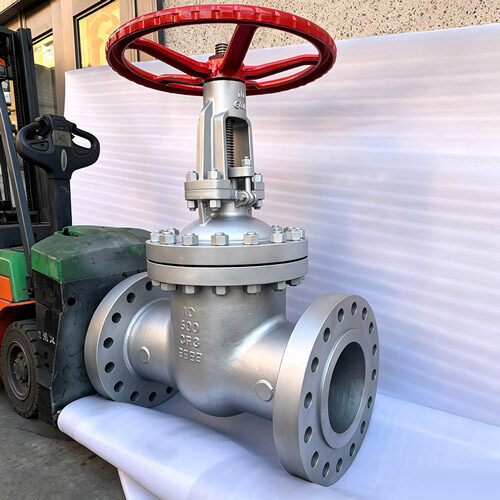

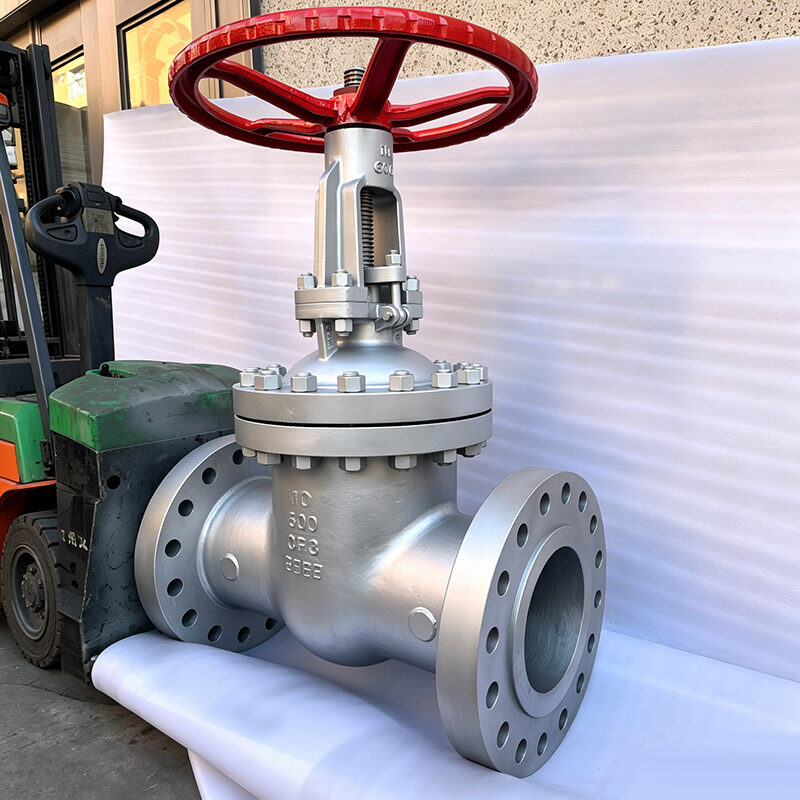

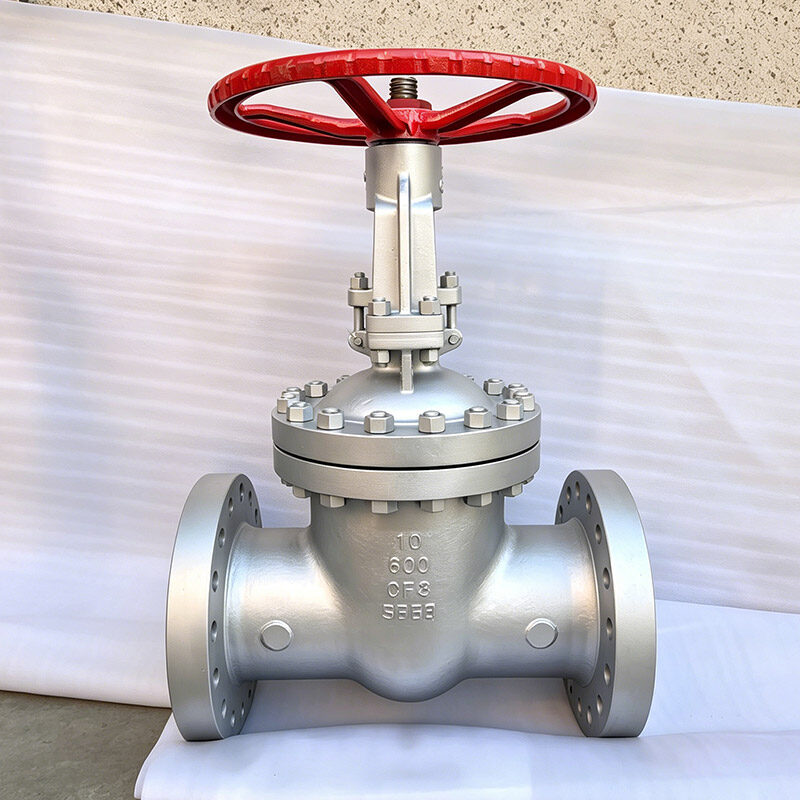

600LB CF3 Stainless Steel Flanged API600 Gate Valve - High Pressure Corrosion Resistant Valve

Product Overview

The 600LB CF3 Stainless Steel Flanged API600 Gate Valve is a high-performance industrial valve engineered for medium-to-high pressure corrosive applications, combining the superior corrosion resistance of CF3 stainless steel with strict compliance to API 600 standards. As the cast equivalent of 304L stainless steel (ASTM A351), CF3 features a low carbon content (≤0.03%) that eliminates intergranular corrosion risks, making it ideal for handling mildly corrosive media, organic chemicals, and high-purity fluids. Rated for 600LB (PN 100) pressure class and flanged end connections, this gate valve delivers reliable shutoff and minimal flow resistance, adhering to API 600, ASME B16.34, and API 598 standards. It is widely trusted in chemical processing, petrochemical, food & beverage, and water treatment industries, operating seamlessly in temperatures ranging from -196℃ to 427℃ (-320°F to 800°F).

Key Features & Advantages

1.Premium CF3 Stainless Steel Construction

Manufactured from ASTM A351 CF3 stainless steel—an austenitic low-carbon alloy (equivalent to 304L wrought steel)—offering exceptional corrosion resistance to general acids, organic chemicals, and non-chloride bearing media . The low carbon content (≤0.03%) prevents sensitization and intergranular corrosion, even after welding or long-term exposure to high temperatures, ensuring structural integrity in harsh environments .

2.API600 Standard Compliance

Fully adheres to API 600 specifications for bolted bonnet steel gate valves, including heavy-wall sections, full-port openings, and large stem diameters designed for petroleum refinery and critical industrial applications . Complies with API 598 inspection and testing standards, guaranteeing dimensional accuracy, interchangeability, and leak-free performance (API 598 Class IV leakage rating) .

3.600LB (PN 100) Pressure Class Rating

Rated for working pressures up to 10.0 MPa (1450 psi) at ambient temperatures, with pressure-temperature ratings aligned to ASME B16.34 standards . The robust design handles medium-to-high pressure systems, making it suitable for critical pipelines in refineries, chemical plants, and power generation facilities .

4.Flanged End Connection for Global Compatibility

Flanged ends comply with ASME B16.5 standards, featuring a 1/4" (7 mm) raised face (RF) design specific to 600LB class valves for secure, leak-proof installation . Compatible with standard industrial flanges, enabling easy integration into existing pipelines and convenient disassembly for maintenance .

5.Efficient Flow Control & Tight Shutoff

Gate valve’s wedge disc design and full-port opening ensure minimal flow resistance when fully open, optimizing energy efficiency for large-volume fluid transfer . Precision-machined metallic seating surfaces (with optional Stellite overlay) provide tight shutoff, meeting API 598 Class IV leakage standards to prevent media waste and environmental hazards .

6.Robust & Low-Maintenance Design

Bolted bonnet construction with a backseat design allows in-line maintenance—inspection, repair, or replacement of internal components (stem, disc, seat)—without removing the valve from the pipeline . The one-piece forged 304L stainless steel stem ensures structural strength and corrosion resistance, while the handwheel (or optional gear/electric actuation) offers smooth operation with minimal friction .

7.Wide Operating Temperature Range

Suitable for extreme temperature conditions from -196℃ (-320°F) to 427℃ (800°F), adapting to cryogenic applications (e.g., liquid nitrogen) and high-temperature fluid systems (e.g., steam) . The austenitic structure of CF3 stainless steel maintains toughness even at ultra-low temperatures.

Technical Specifications

Applications

The 600LB CF3 Stainless Steel Flanged API600 Gate Valve is ideally suited for:

•Chemical processing plants (handling organic acids, non-chloride corrosive media)

•Petrochemical and oil & gas downstream operations (refineries, product pipelines)

•Food & beverage and pharmaceutical industries (high-purity, sanitary applications)

•Water treatment and desalination plants (deionized water, mild corrosive fluids)

•Cryogenic systems (liquid nitrogen, liquid oxygen transfer)

•Power generation (high-temperature steam auxiliary pipelines)

Why Choose Our CF3 600LB API600 Gate Valve?

✅ Superior Corrosion Resistance: CF3’s low carbon content and austenitic structure prevent intergranular corrosion, extending service life in corrosive environments .

✅ API600 Reliability: Complies with global API standards for heavy-duty industrial applications, ensuring performance consistency .

✅ 600LB Pressure Capacity: Rated for PN 100 high-pressure systems, suitable for critical process pipelines .

✅ Global Compatibility: ASME B16.5 flanged connections fit international piping systems, facilitating cross-border projects .

✅ Versatile Temperature Range: Operates from cryogenic (-196℃) to high-temperature (427℃) conditions, adapting to diverse.

✅ Sanitary & High-Purity Compliance: Non-reactive CF3 material meets food, pharmaceutical, and high-purity fluid requirements .

Order Information

Contact our technical sales team for personalized quotes, 2D/3D drawings, ASTM A351 CF3 material certificates, or sample requests. We provide professional valve solutions and global logistics support.

•Minimum Order Quantity (MOQ): 1 Unit

•Lead Time: 10-25 Working Days (Standard Sizes); Customized Orders: 25-40 Working Days

•Payment Terms: T/T (30% Advance + 70% Against B/L Copy), L/C, Western Union

•Shipping: Sea Freight (FCL/LCL), Air Freight, Express (DHL/FedEx/UPS)

•Packaging: Anti-corrosion Coating + Wooden Case + Custom Labeling (Meets Export Standards)

•After-Sales Service: 12-Month Warranty, Technical Support, and Spare Parts Supply

1. What Is a 600LB CF3 Stainless Steel Flanged API600 Gate Valve

This valve is a high-pressure gate valve rated for Class 600 service and manufactured from CF3 stainless steel, a low-carbon cast grade equivalent to wrought 304L with excellent resistance to intergranular corrosion. The flanged ends allow secure bolted connections to pipeline systems, while the design strictly follows API600, which is the industry standard for steel gate valves used in refining, petrochemical, and power generation applications. The valve typically features a rising or non‑rising stem and a wedge or parallel disc to either fully stop or fully start flow, making it ideal for on‑off isolation duties under demanding conditions.

2. Why the 600LB CF3 Stainless Steel Flanged API600 Gate Valve Matters

This valve is critically important because it provides reliable flow isolation in severe corrosion and moderate‑to‑high pressure environments. The CF3 material resists intergranular corrosion after welding or heat exposure, which is essential for services involving chlorides, seawater, acidic media, or high‑purity water. The 600LB pressure class handles working pressures up to around 1440 psi at ambient temperature, covering many industrial processes. Moreover, the API600 construction mandates robust body‑bonnet joints, rigorous sealing tests, and durable trim components, ensuring long service life, low leakage, and safe operation in critical applications such as offshore platforms, chemical plants, and power stations.

3. Common Product Types by 600LB CF3 Stainless Steel Flanged API600 Gate Valve

Several common variations exist under this specification. The rising stem or outside screw and yoke design allows visual position indication and is preferred where maintenance access is easy. The non‑rising stem type is used when vertical space is limited. The solid wedge gate valve offers simple strength for general service, while the flexible wedge version helps prevent thermal binding in high‑temperature lines. Split wedge or double‑disc designs reduce operating torque and work well with non‑condensing fluids. Finally, the bonnet can be bolted for moderate pressures or pressure‑seal for high‑temperature and high‑pressure applications where leak‑tight performance is paramount.

4. Key Advantages of 600LB CF3 Stainless Steel Flanged API600 Gate Valve

The main advantages include outstanding corrosion resistance from the CF3 low‑carbon stainless steel, which prevents intergranular attack and stress corrosion cracking even in welded conditions. The Class 600 rating enables safe use in medium‑to‑high pressure systems without requiring heavier classes. Flanged ends simplify installation, removal, and maintenance compared to welded or threaded connections. API600 certification ensures tight shut‑off through rigorous shell, seat, and backseat tests. Additionally, the valve typically features renewable seat rings and hardfaced sealing surfaces, extending service life. The design also allows easy adaptation to various actuators, including handwheels, gear operators, or electric drives.

5. 600LB CF3 Stainless Steel Flanged API600 Gate Valve Machine Structure and Core Stations

The machine structure consists of a cast CF3 stainless steel body with integral flanges and a bonnet attached by bolts or a pressure‑seal joint. Inside, the gate can be a solid wedge, flexible wedge, or parallel disc, riding between two seat rings that are often hardfaced with cobalt‑based alloy for wear resistance. The stem connects to the gate via a T‑slot or threaded mechanism and passes through a packing chamber containing graphite or PTFE rings sealed by a gland follower. A backseat allows stem sealing when the valve is fully open. Core functional stations include the seat‑gate interface where shut‑off occurs, the packing‑stem interface for emission control, and the stem‑nut or actuator interface for motion transmission.
