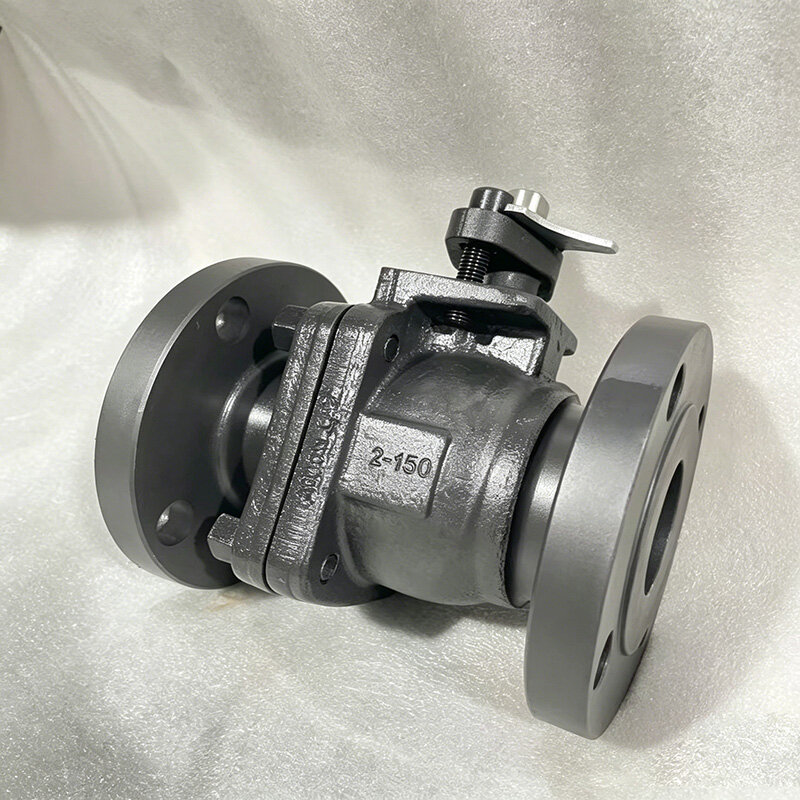

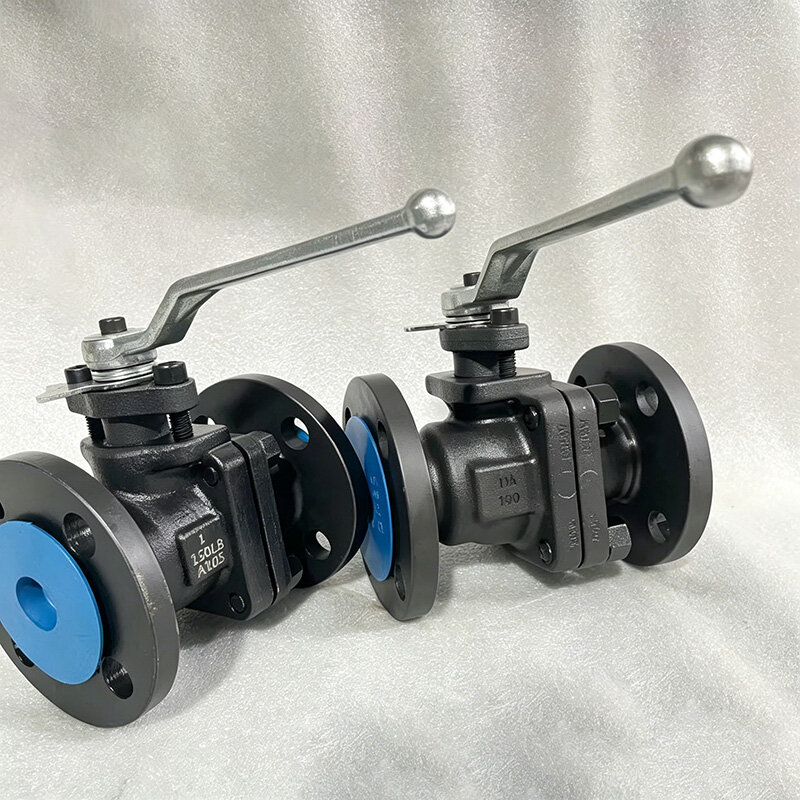

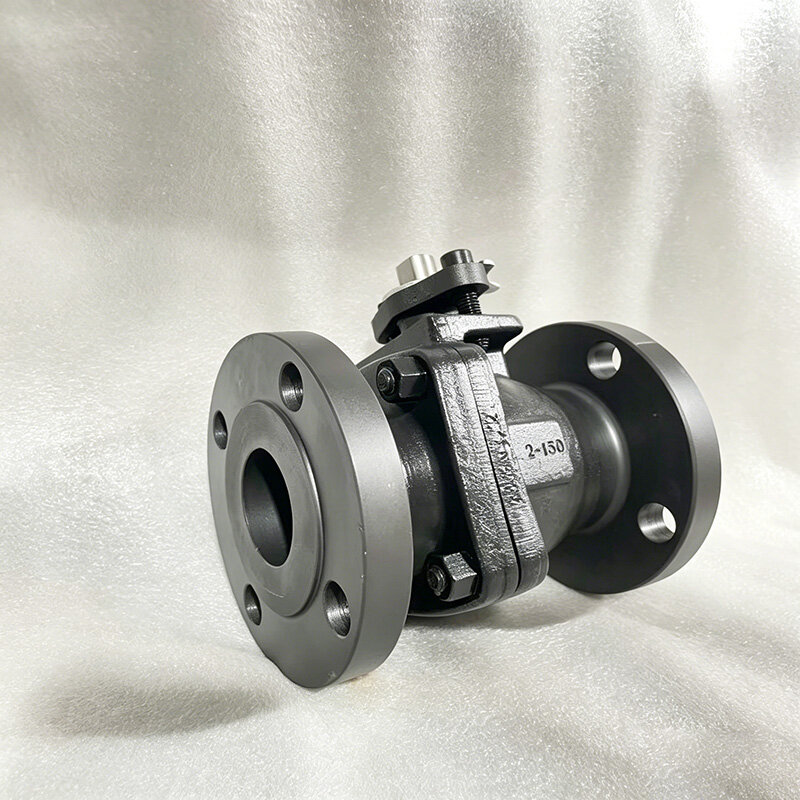

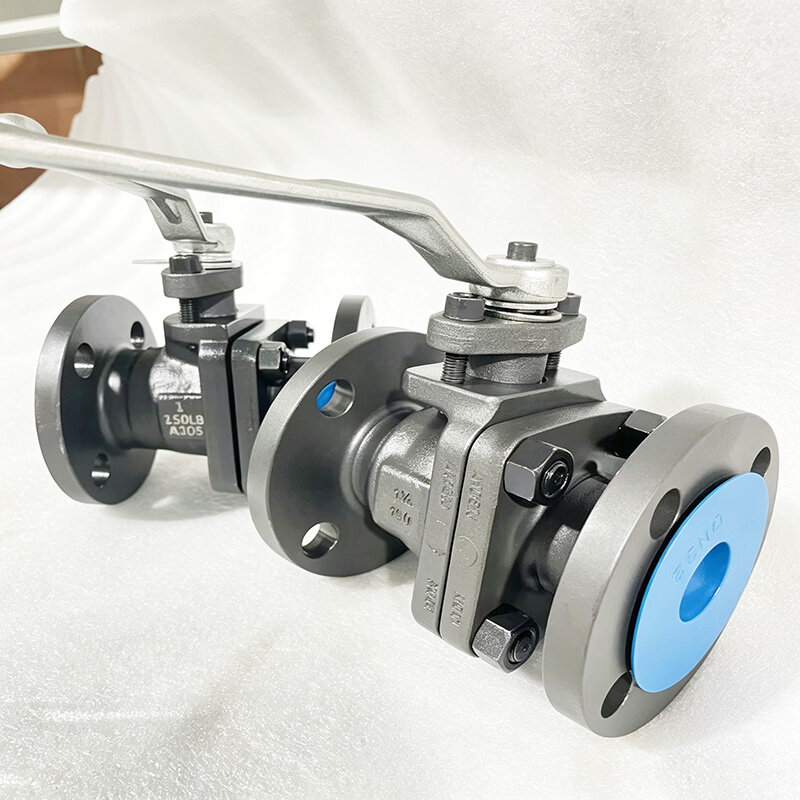

API 6D ASTM A105 Forged Steel ANSI Flanged Soft Seat Ball Valve

Product Overview

The API 6D ASTM A105 Forged Steel ANSI Flanged Soft Seat Ball Valve is a high-performance pipeline isolation valve strictly designed and manufactured in accordance with API 6D pipeline valve standards and ASME B16 series international specifications. Different from traditional cast steel valves, this ball valve adopts integral ASTM A105 forged steel body, featuring denser metal texture, higher structural strength and better pressure and temperature resistance, effectively avoiding casting defects such as porosity and sand holes.

Equipped with standard ANSI flanged connection and high-quality soft seat sealing materials (PTFE, RPTFE, NYLON), the valve achieves absolute bubble-tight zero leakage under rated working conditions. The optimized full bore flow channel ensures unobstructed medium transmission and supports pipeline pigging cleaning. With flexible opening and closing, low operating torque and excellent anti-corrosion performance, this API 6D forged ball valve is an ideal safety isolation solution for medium and low-pressure clean medium pipelines in oil, gas and petrochemical industries.

Key Features & Advantages

1.Premium A105 Forged Steel Body

Adopts ASTM A216 A105 integral forged carbon steel, the mainstream high-strength pipeline valve material. Compared with cast steel, forged steel has uniform internal structure, higher density, stronger pressure resistance and impact resistance, no casting defects, and more stable performance under long-term cyclic operation. It effectively resists pipeline pressure surge and mechanical vibration, extending valve service life greatly.

2.Strict API 6D Pipeline Grade Standard

Fully compliant with API 6D pipeline valve specifications, matched with ASME B16.34 pressure-temperature rating, ASME B16.5 flange dimension, ASME B16.10 face-to-face dimension and API 598 test standards. It meets full-cycle safety operation requirements of industrial pipelines and passes strict pipeline-level anti-fatigue and leakage tests, suitable for global standard energy and chemical engineering projects.

3.Soft Seat Zero Leakage Performance

Adopts high-performance polymer soft sealing materials such as PTFE and RPTFE. The flexible sealing pair fits tightly with the precision polished ball surface, realizing bidirectional bubble-tight zero leakage. The soft seat has good wear resistance, low friction coefficient and excellent sealing stability, completely solving the leakage problem of traditional hard seal valves under low pressure and clean medium working conditions.

4.Standard ANSI Flanged Connection

Comes with ANSI B16.5 standard raised face (RF) flange with unified international installation dimensions. The flange sealing surface is precisely processed with flat and smooth texture, ensuring stable installation and reliable sealing. The flanged structure is easy to assemble, disassemble and maintain, adapting to fixed laying and daily overhaul of various ANSI standard pipeline systems.

5.Full Bore Smooth Flow Design

Full bore through structure ensures consistent inner diameter with the pipeline, zero flow resistance in fully open state, no medium retention and dead angle. It supports pipeline pigging cleaning, reduces pipeline transmission resistance and energy consumption, and improves overall pipeline operation efficiency, perfectly matching long-distance medium transmission pipelines.

6.Flexible Operation & Wide Adaptability

Low torque floating ball structure ensures flexible and labor-saving opening and closing. Multiple driving modes including manual lever, gear box, electric and pneumatic are optional. The valve is suitable for various clean medium working conditions, with stable sealing performance and low failure rate, greatly reducing later operation and maintenance costs.

Technical Specifications

Applications

•Oil & Gas Industry: Medium and low pressure gas transmission pipelines, oilfield auxiliary gathering and transportation pipelines, station safety isolation systems

•Petrochemical Industry: Refinery clean medium pipelines, light oil delivery systems, chemical non-corrosive fluid cut-off equipment

•Power Generation: Power plant auxiliary water and gas pipelines, circulating water systems, low-pressure fluid safety control pipelines

•Industrial Manufacturing: Factory compressed air pipelines, clean process water systems, industrial fluid switch and isolation equipment

•Urban Pipeline Network: Municipal gas supply and water supply pipelines, public engineering medium-pressure pipeline protection systems

Why Choose Our API 6D A105 Soft Seat Ball Valve?

✅ High-Strength A105 Forged Steel — Integral forging process, denser texture, higher structural strength than cast steel, anti-vibration and anti-deformation, durable for long-term pipeline operation.

✅ Genuine API 6D Pipeline Standard — Pipeline-level professional valve, fully compliant with international API and ASME standards, meeting overseas engineering acceptance and bidding requirements.

✅ Soft Seat 100% Zero Leakage — High-performance polymer soft sealing, bidirectional tight shutoff, no medium loss, solving low-pressure sealing failure problems effectively.

✅ Full Bore Energy Saving Design — Zero flow resistance, support pipeline pigging, reduce system energy consumption and improve pipeline transmission efficiency.

✅ Cost-Effective & Low Maintenance — Flexible operation, stable sealing performance, low failure rate, convenient installation and maintenance, saving long-term operating costs.

Order & Certification Information

MOQ: 1 Unit

Lead Time: 15-30 working days for standard sizes

Certificates: EN10204 3.1 Material Certificate, API 598 Test Report, ISO 9001 Quality Certificate

Packing: Anti-rust treatment + Standard export wooden case

Warranty: 18-month quality warranty and lifelong technical support

Contact Us for customized pressure grades, sealing materials and bulk quotation of API 6D A105 forged steel soft seat ball valves.

What Is an API 6D Ball Valve

An API 6D Ball Valve is a quarter turn isolation valve designed for pipeline applications involving oil, gas, petrochemical products, and other process media. It features a spherical closure element with a bore that aligns with the flow path when open and blocks the passage when closed. Manufactured in accordance with API 6D requirements, the valve provides dependable sealing and structural integrity. Its design supports reliable operation in demanding environments where safe and efficient flow control is essential.

Why the API 6D Ball Valve Matters

An API 6D Ball Valve is important because it provides tight shutoff and dependable performance in critical pipeline systems. API 6D requirements ensure consistent design, material selection, and testing procedures, helping maintain operational safety and reliability. The quarter turn mechanism enables fast opening and closing, reducing response time during system control. Its ability to handle a wide range of media and service conditions makes it a preferred choice for industrial transmission and processing applications.

Common Product Types by API 6D Ball Valve

Common product types include floating ball valves, trunnion mounted ball valves, top entry ball valves, and side entry ball valves. Full port designs are used where unrestricted flow is required, while reduced port versions are selected for space and cost considerations. Manual, pneumatic, electric, and gear operated configurations are available. Various seat materials and body constructions can be chosen to suit corrosive, high temperature, or severe service environments.

Key Advantages of API 6D Ball Valve

The valve offers excellent sealing performance, low operating torque, and rapid quarter turn operation. Its streamlined flow path minimizes pressure loss and improves efficiency. API 6D compliant construction ensures reliable performance and long service life. The valve can be equipped with different actuation methods and specialized materials to meet demanding operating conditions. Its simple structure also contributes to convenient maintenance and dependable operation.

API 6D Ball Valve Machine Structure and Core Stations

Manufacturing begins with forging or casting the body, ball, stem, and end connections using selected materials. Core stations include heat treatment, precision machining of sealing surfaces, ball cavities, stem interfaces, and body components. Assembly stations install the ball, seats, stem, seals, and operating mechanism. Final operations include pressure testing, torque verification, surface treatment, marking, cleaning, and packaging to ensure dimensional accuracy, reliable sealing, and consistent product quality.
