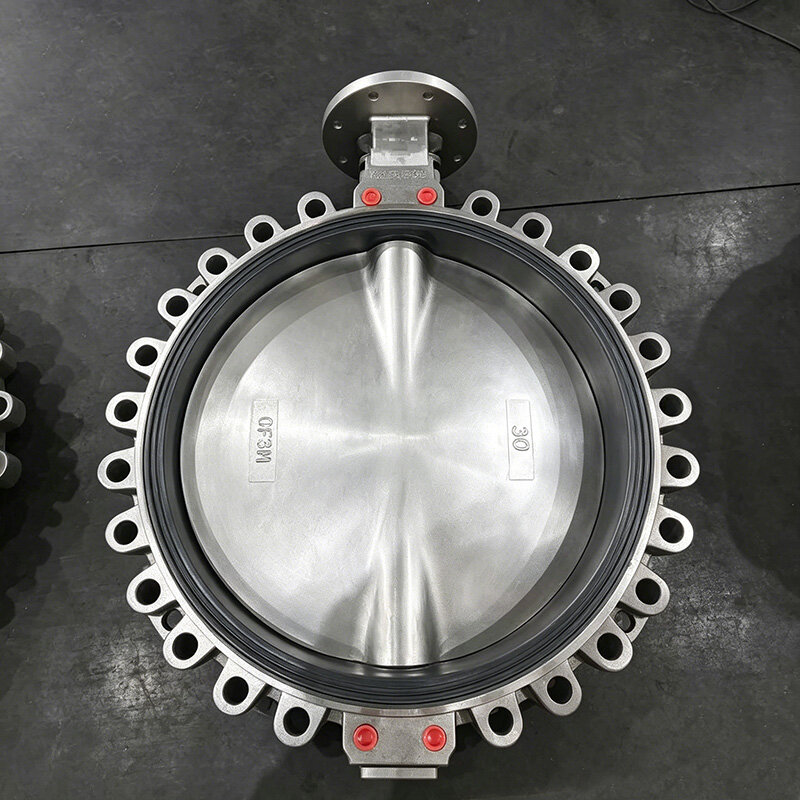

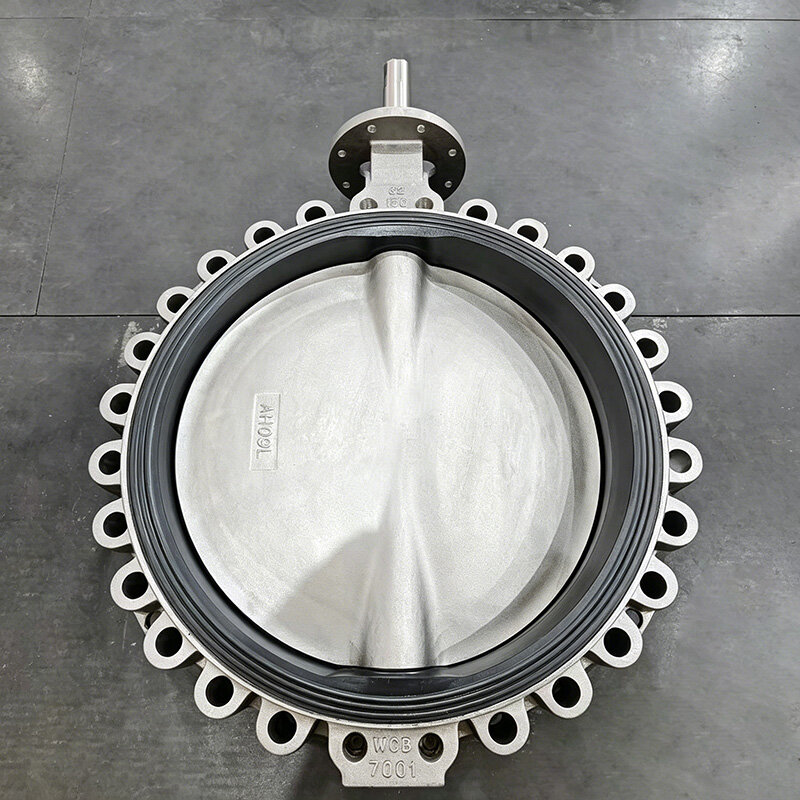

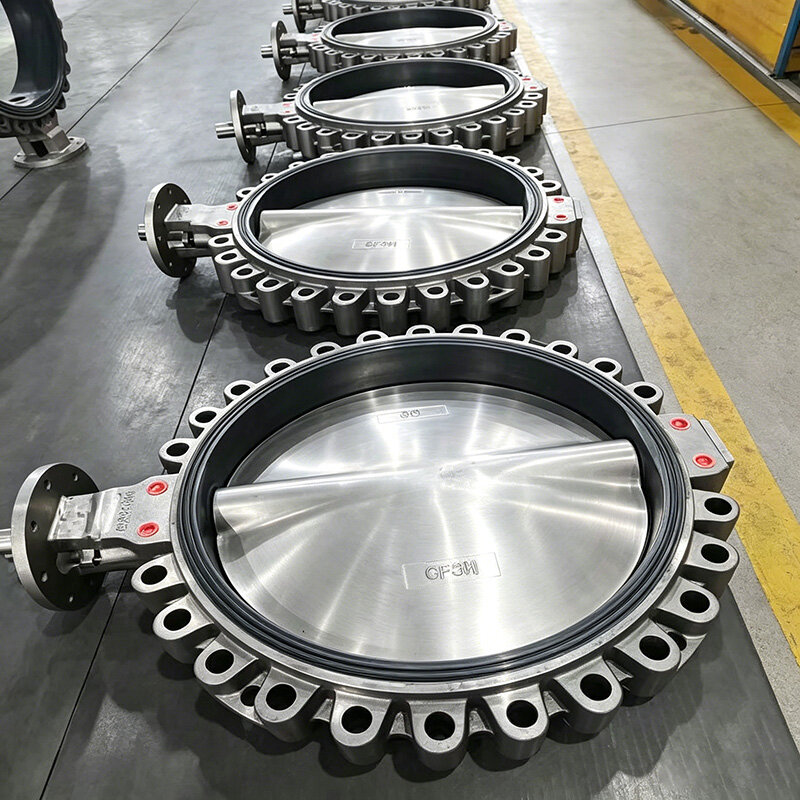

API609 Soft Seated American Standard Lug Type Butterfly Valve

Product Overview

The API609 Soft Seated American Standard Lug Type Butterfly Valve is a high-performance centerline resilient seated industrial butterfly valve manufactured strictly in accordance with American API609 industrial specifications. Adopting classic American standard lug ear connection structure, this valve features threaded lug design on both sides, enabling single-sided installation, blind end isolation and free disassembly without removing pipeline flanges, which is incomparably flexible compared with ordinary wafer butterfly valves. The whole valve adopts centerline structural design, matching high-elasticity soft sealing material to achieve ANSI Class VI bubble-tight zero leakage bidirectional shutoff performance.

All structural dimensions, pressure grades and factory test procedures fully comply with ASME B16.10 structural length, ASME B16.5 pressure standard and API598 hydrostatic testing specifications. It supports ANSI Class150 and Class300 pressure grades, with stable sealing and low operating torque. Suitable for frequent opening and closing and long-term pipeline isolation working conditions, it is widely used in petrochemical, thermal power, municipal water supply, HVAC and general industrial medium pipeline shutoff and flow control systems, being a versatile core valve for American standard pipeline projects.

Core Product Features

1. Full API609 American Standard Compliance
Designed, produced and inspected strictly in accordance with API609 Category B butterfly valve standards, fully matching ASME B16.10 face-to-face dimension and ASME B16.5 pressure grade specifications. All finished valves pass 100% API598 shell pressure test and zero-leakage sealing test, completely meeting international industrial pipeline engineering design standards and third-party acceptance requirements.

2. Unique American Standard Lug Connection Design
Adopts integral threaded lug ear structure, which can be installed and fixed on single-side flanges, realizing blind plate isolation and unilateral pipeline sealing. The valve can be disassembled independently without overall pipeline shutdown and flange removal, greatly improving pipeline maintenance efficiency. The lug structure has strong bearing capacity and vibration resistance, adapting to complex pipeline installation environments.

3. High-Performance Soft Seal Zero Leakage
Equipped with high-elastic resilient soft seat (EPDM/NBR/Viton optional), the centerline valve plate fits the sealing surface perfectly with uniform compression. It achieves bidirectional ANSI Class VI bubble-tight zero leakage shutoff, effectively solving the medium leakage problem of traditional industrial butterfly valves, ensuring pipeline sealing safety and operational stability.

4. Labor-Saving & Flexible Operation Performance
The optimized centerline flow channel structure minimizes medium flow resistance and operating torque. It supports manual, worm gear, pneumatic and electric multi-driving modes, realizing flexible and labor-saving opening and closing. The valve plate operates stably without jitter, suitable for frequent switching and continuous flow regulation working conditions.

5. Bidirectional Sealing & Pipeline Isolation
Different from one-way sealing valves, this lug butterfly valve supports bidirectional medium sealing and pressure bearing, meeting diverse pipeline installation and fluid flow direction requirements. It can be used as an effective pipeline isolation valve for equipment maintenance and pipeline segmented cut-off, improving industrial pipeline system safety.

6. Wide Working Condition Adaptability
Stable structural and sealing performance in the temperature range of -29℃ to 230℃, adapting to normal temperature and medium-temperature industrial media. It is resistant to dry friction and medium scouring, with excellent aging resistance and fatigue resistance, suitable for long-term continuous industrial pipeline operation.

7. High Versatility & Easy Maintenance
Standard American standard size specification, highly compatible with global ANSI standard pipeline systems. The overall structure is simple with few vulnerable parts, and the sealing ring can be replaced independently on site. The later maintenance cost is low, and the service cycle is long.

Technical Specifications

Installation, Operation & Maintenance Notes

1. Standard Operation Guidelines
This API609 soft seat lug butterfly valve is designed for pipeline full openclosed isolation and stable flow regulation. Long-term small-opening throttling operation is prohibited to prevent high-speed medium scouring and damage to the soft sealing seat. Operate strictly within rated ANSI pressure and temperature range to avoid sealing aging and failure.

2. Professional Lug Type Installation Requirements
The lug ear structure supports unilateral flange installation and bilateral flange clamping installation. Install the valve on straight pipeline sections, keep away from pump outlets and elbow turbulent areas. Align the valve lug holes with pipeline flange bolts accurately, tighten bolts diagonally and evenly to ensure uniform stress. Clean pipeline welding slag and hard impurities before installation to protect the soft sealing surface.

3. Independent Disassembly & Maintenance
The unique lug design allows single-side disassembly and replacement of the valve without removing the entire pipeline flange, which is convenient for rapid on-site maintenance. Avoid forced extrusion and impact on the lug ears during installation to prevent structural deformation and thread damage.

4. Daily Sealing Inspection & Protection
Regularly check the soft seat for aging, wear and deformation. Replace the sealing ring in time if leakage occurs. Inspect the lug thread integrity and connection tightness regularly to ensure no loosening or medium leakage during long-term pipeline operation.

Wide Application Scenarios

• Petrochemical Industry: Refined oil, fuel oil and mild medium pipeline isolation and flow control systems

• Thermal Power & Energy Plants: Power plant circulating water, auxiliary gas and medium-temperature steam pipeline valves

• Municipal Water Treatment: Urban water supply, sewage treatment and large-flow water circulation pipeline equipment

• HVAC & Building Engineering: Central air conditioning, heating ventilation and fire protection pipeline control valves

• General Industrial Factory: Factory compressed air, process circulating water and public engineering pipeline systems

Product Competitive Advantages

✅ Genuine API609 American Standard — Fully compliant with American industrial standards, compatible with global ANSI Class150/300 standard pipelines.

✅ Special Lug Ear Connection — Support unilateral installation and blind end isolation, independent disassembly, convenient pipeline maintenance and strong practicability.

✅ ANSI VI Zero Leakage Soft Seal — High-elastic resilient seat, bidirectional tight shutoff, no medium leakage, excellent sealing performance.

✅ Bidirectional Pressure Resistance — Support two-way medium sealing and pressure bearing, adapting to various pipeline installation modes.

✅ Flexible Multi-Mode Operation — Multiple driving options available, labor-saving switching, stable and sensitive flow regulation.

✅ Low Maintenance & High Versatility — Mature structure, strong compatibility, low failure rate and long service life for industrial scenarios.

Order & Certification Information

MOQ: 1 Unit
Production Lead Time: 10–20 working days for standard specifications
Supporting Documents: Factory Test Report, API609 Compliance Certificate, API598 Inspection Report, ISO9001 Quality Certificate
Export Packaging: Internal anti-rust protection + Plastic wrap + Reinforced fumigation-free wooden export case
Warranty Service: 12-month quality warranty + lifelong professional after-sales technical support

Contact Us for customized sizes, pressure grades and bulk preferential prices of API609 Soft Seated American Standard Lug Type Butterfly Valves.

What Is an API Manual Flanged Butterfly Valve

An API Manual Flanged Butterfly Valve is a quarter turn valve designed to isolate or regulate the flow of liquids, gases, and other media in industrial pipelines. The valve uses a circular disc mounted on a shaft, which rotates to control the flow passage. Manual operation is achieved through a lever handle or gear operator without the need for external power. Flanged ends provide secure connections, while API standards ensure reliable performance and structural integrity.

Why the API Manual Flanged Butterfly Valve Matters

This valve is important because it offers dependable flow control with a simple and efficient operating method. Manual actuation eliminates the need for electrical or pneumatic systems, making the valve suitable for a wide range of industrial environments. API compliant construction provides confidence in sealing performance and durability. Its compact structure and low operating torque help improve installation flexibility and support stable process operation.

Common Product Types by API Manual Flanged Butterfly Valve

Common product types include concentric butterfly valves, double offset butterfly valves, and triple offset butterfly valves. Soft seated designs are commonly selected for water and general industrial services, while metal seated versions are preferred for high temperature and abrasive media. Manual operation can be provided by a hand lever or worm gear mechanism. Various body materials and seat options are available for different process conditions and fluid characteristics.

Key Advantages of API Manual Flanged Butterfly Valve

The valve offers simple operation, reliable sealing, and compact construction. Manual control requires no external energy source, reducing maintenance complexity and operating costs. The quarter turn mechanism enables quick opening and closing, while the lightweight structure simplifies installation. Flanged connections provide secure sealing and easy maintenance. With suitable materials, the valve performs effectively in corrosive, high temperature, and demanding industrial applications.

API Manual Flanged Butterfly Valve Machine Structure and Core Stations

Manufacturing begins with casting or forging the body, disc, and shaft components from selected materials. Core stations include heat treatment, CNC machining of flange faces, shaft holes, disc profiles, and sealing surfaces. Assembly stations install the shaft, seat, bearings, seals, and manual operating mechanism. Final operations include pressure testing, surface treatment, marking, cleaning, and packaging to ensure dimensional accuracy, smooth operation, and dependable sealing performance.
