As a type of American-standard steel gate valve, the API 600 gate valve is widely used in high-temperature, high-pressure process pipelines. During the design phase, engineers must clearly understand the standard definitions, structural configurations, and operational limits of API 600 gate valves to avoid selection errors that could lead to future maintenance and operational risks.
API 600 is the standard governing steel gate valves with flanged or butt-welded connections, establishing uniform requirements for body materials, stem designs, sealing configurations, pressure-temperature ratings, and shell pressure testing. The predominant design for API 600 gate valves is the rising-stem wedge gate configuration—available in both solid wedge and flexible (split) wedge types—with body materials such as carbon steel, stainless steel, and alloy steel to suit various temperature ranges and fluid corrosivity levels. The rising-stem design allows the stem to move vertically during opening and closing, enabling operators to visually verify the valve's status and reducing the risk of misinterpretation during field inspections.
Regarding fluid characteristics, API 600 gate valves are full-bore valves; when fully open, the internal flow path is free of significant obstructions, resulting in low flow resistance and minimal pressure loss, making them ideal for long-distance pipelines transporting oil, steam, or gas. It is important to note that API 600 gate valves are designed primarily for isolation (on/off service) rather than flow throttling or regulation. Prolonged operation in a partially open position exposes the metal sealing surfaces of the gate and seat to high-velocity fluid erosion, leading to wear and subsequent internal leakage—a common cause of failure in field applications.

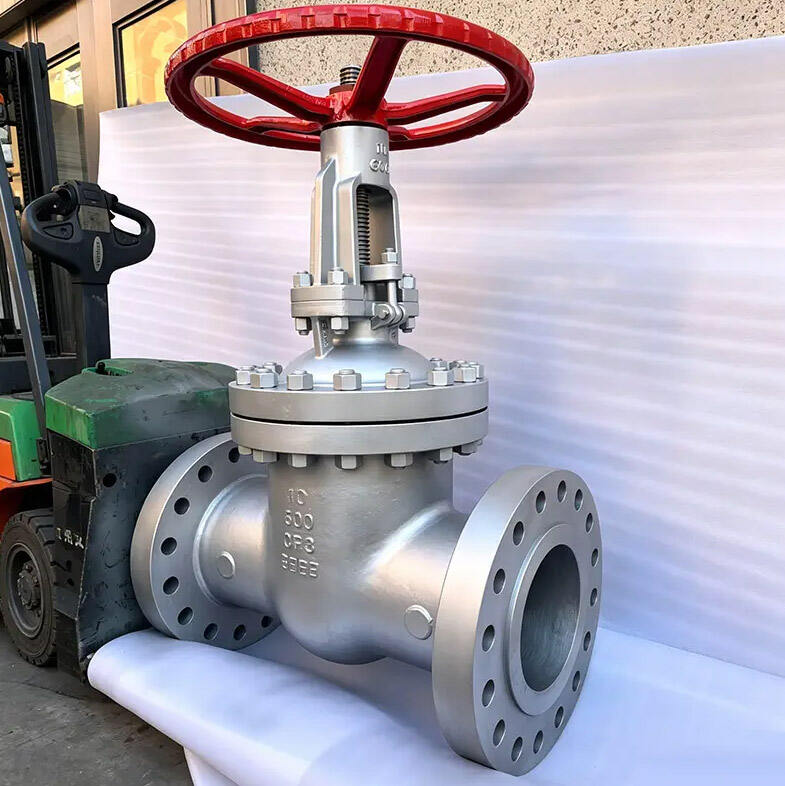

Connection types include flanged ends and butt-welded ends. Flanged connections facilitate easy disassembly and maintenance, making them suitable for pipeline sections requiring frequent servicing; butt-welded connections offer superior structural integrity and resistance to external loads, making them ideal for process pipelines subject to high temperatures, high pressures, or significant vibration. API 600 gate valves cover pressure ratings from Class 150 to Class 2500, with each rating corresponding to specific pressure-temperature curves. Selection must not rely solely on nominal pressure; the operating temperature of the medium must be considered alongside standard pressure-temperature ratings to prevent structural failure of the valve body under excessive temperature or pressure conditions.
Valve sealing surfaces typically utilize hard-facing (stellite overlay) techniques to enhance resistance to erosion and galling. However, when handling media containing small amounts of solid particles, metal sealing surfaces remain susceptible to wear; consequently, filtration devices should be installed upstream to minimize direct impact from impurities on the sealing interface. Flexible graphite packing is used to accommodate high-temperature conditions and reduce the risk of stem leakage; routine maintenance allows for fine-tuning via the packing gland to mitigate stem seepage.
When comparing options for engineering applications, there are distinct differences in the suitability of API 600 gate valves versus API globe valves. API globe valves feature tortuous flow paths and higher flow resistance, making them suitable for applications requiring fine throttling control. In contrast, the low flow resistance of API 600 gate valves makes them ideal for large-diameter, high-flow long-distance pipelines. API 600 gate valves require a long travel distance and high operating torque to open and close; large-diameter models are often equipped with gear operators, while electric actuators may be used in certain applications to enable remote operation.
Installation is also subject to specific standards. API 600 gate valves should ideally be installed with the stem pointing vertically upward; lateral installation should be avoided to prevent the gate's weight from causing misalignment and uneven loading on the sealing interface. During pipeline pressure testing, the valve should be kept fully open, allowing the medium to fill the valve body gradually to prevent pressure surges from damaging internal components. To ensure that thermal expansion stresses from the pipeline are not transferred to the valve body, pipe supports and hangers must be properly positioned to minimize additional tensile loads on the valve casing. Regarding ongoing operation and maintenance, API 600 gate valves require periodic tightness testing to check for stem packing leakage and to ensure the operating mechanism does not bind or stick. For valves that remain static for extended periods, regular cycling (opening and closing) is necessary to prevent the gate and seat from sticking or seizing together. Internal leakage is most often caused by debris adhering to the sealing surfaces or erosion damage; resolving this requires disassembling the valve, lapping the sealing surfaces, and reassembling and testing the unit.
In summary, API 600 gate valves serve as fundamental isolation valves in petrochemical and refining process piping. Their selection requires a comprehensive assessment of multiple factors, including the type of medium, temperature and pressure parameters, piping installation conditions, and maintenance intervals. Long-term, stable operation of the piping system can only be ensured by strictly adhering to the API 600 standard, matching specifications to actual operating conditions, and ensuring proper installation and regular maintenance.
