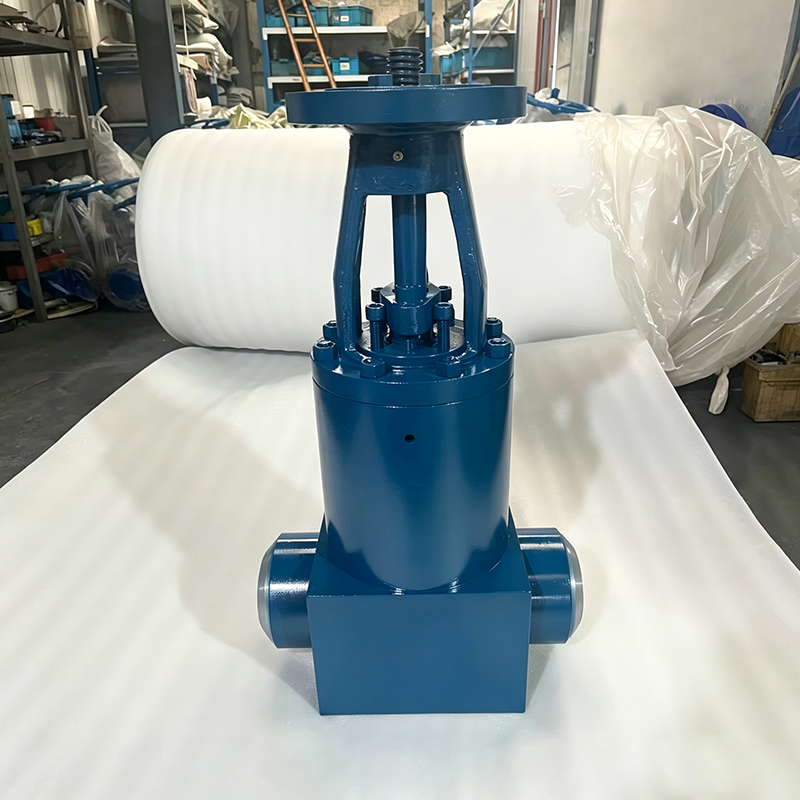

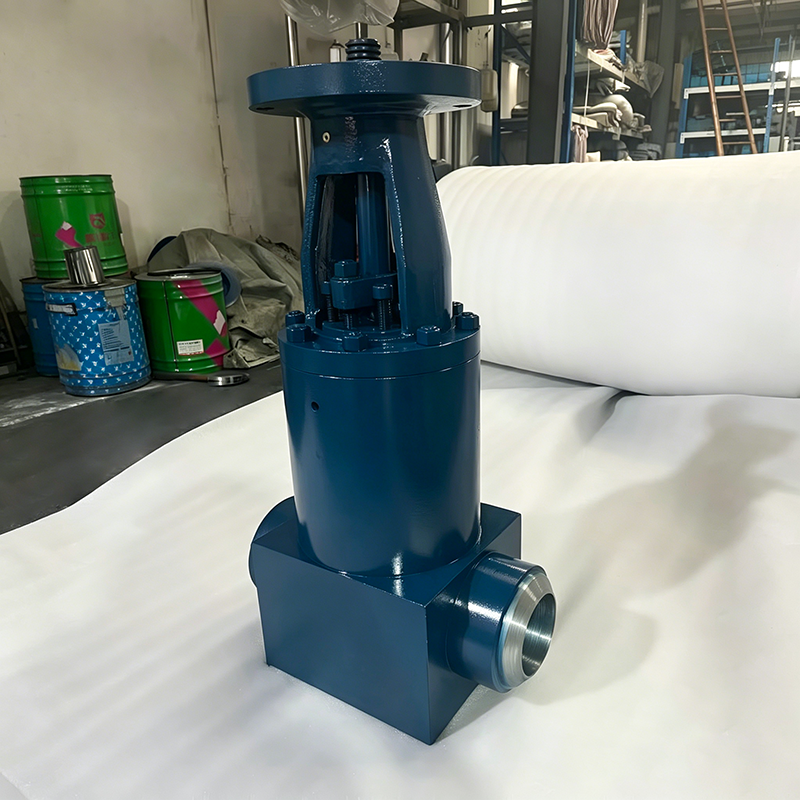

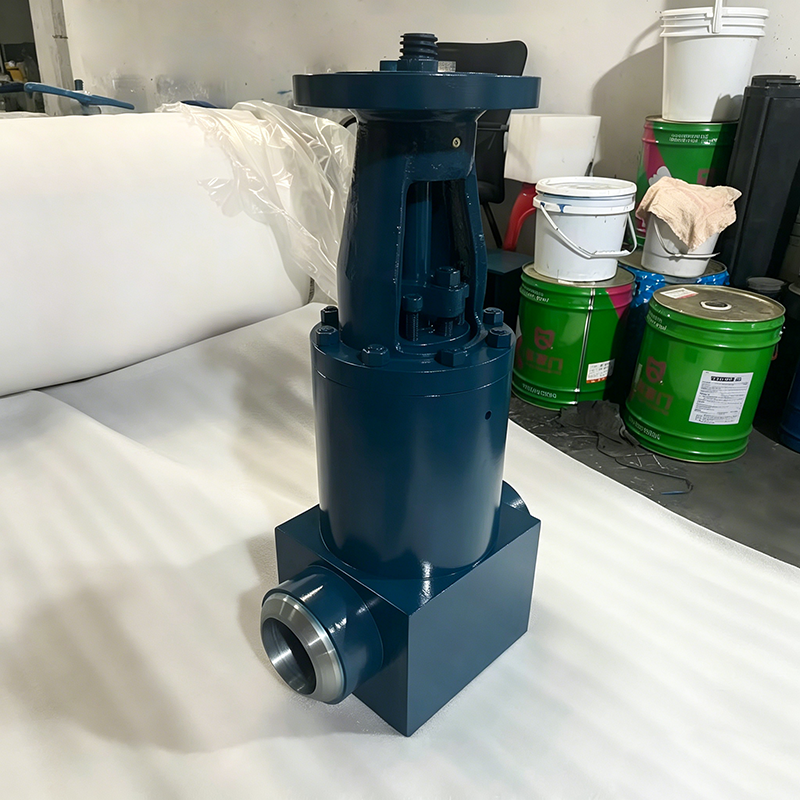

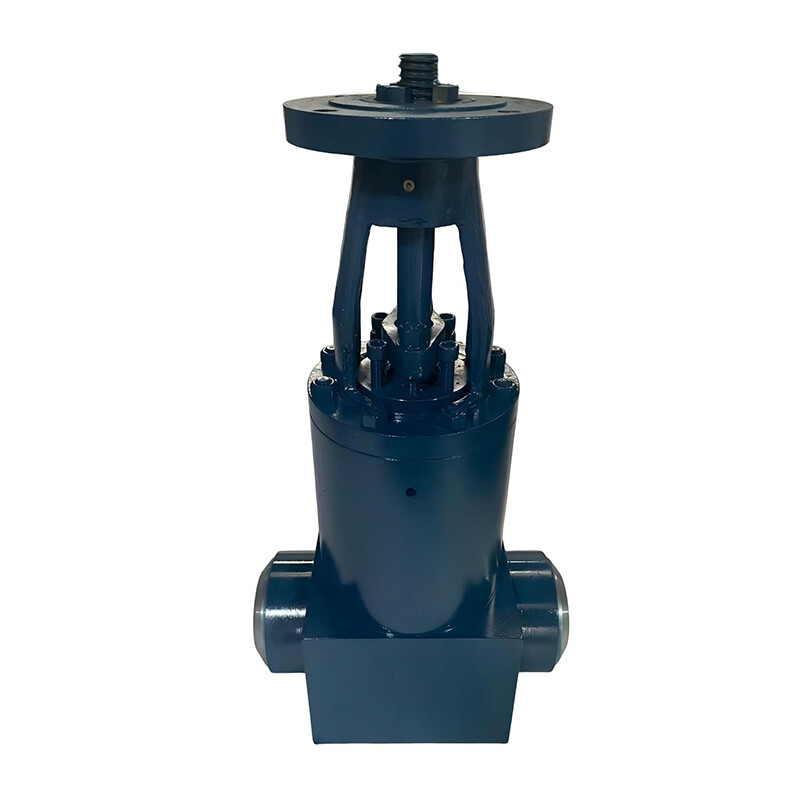

1500LB A182F22 American Standard Integral Forged Pressure Seal API600 Power Plant Gate Valve

Product Overview

The 1500LB A182F22 American Standard Integral Forged Pressure Seal API600 Power Plant Gate Valve is a heavy-duty chrome-moly alloy steel isolation valve tailored for power station high-temperature steam and extreme pressure systems. Built strictly to API600 and ASME B16 series American standards, this valve adopts one-piece integral forging from ASTM A182 F22 (2.25Cr-1Mo) alloy steel, delivering outstanding creep resistance, high-temperature oxidation resistance and hydrogen attack resistance. The advanced pressure seal bonnet (self-sealing) design ensures tighter sealing as pipeline pressure rises, while the BW butt welded end enables a robust, leak-proof connection with high-temperature process piping. Ideal for power plant main steam lines, boiler feedwater systems and petrochemical high-temperature loops, this API600 gate valve provides stable zero-leakage isolation under 1500LB (PN250) high pressure and up to 550°C continuous service.

Key Features & Advantages

1. API600 Certified for Power Plant Critical Service

Fully compliant with API600 steel valve design criteria, ASME B16.34 pressure-temperature ratings, ASME B16.10 face-to-face dimensions and ASME B16.25 welded end specifications. Every unit undergoes rigorous API598 hydrostatic testing and bubble-tight sealing inspection, meeting the most stringent international standards for power plant and high-temperature industrial piping.

2. A182F22 Chrome-Moly Alloy Integral Forged Body

Constructed from ASTM A182 F22 (2.25Cr-1Mo) low-alloy heat-resistant steel via hot integral forging process. The refined grain structure eliminates casting defects, providing superior high-temperature creep strength, oxidation resistance and long-term structural integrity. Far more reliable than carbon steel valves under sustained high-temperature and pressure cycling.

3. 1500LB High Pressure Rating (PN250)

Designed for Class 1500LB (3705 PSI  255 Bar) maximum working pressure. Thickened forged body with finite element optimized pressure distribution ensures stable performance under pressure surges and long-term high-load operation. The robust structure resists deformation, fatigue and sealing failure in critical power plant systems.

4. Pressure Seal Bonnet (Self-Sealing) Technology

Adopts high-pressure dedicated pressure seal bonnet structure, replacing traditional bolted bonnet design. Relies on medium pressure to drive the sealing assembly for automatic compensation—higher pressure = tighter seal, completely eliminating packing leakage under high pressure. Ideal for zero-emission, zero-leakage requirements in power plant steam lines.

5. BW Butt Welded End for High-Temperature Piping

Comes with ASME B16.25 standard BW butt welded ends. Enables full penetration welding with on-site pipelines, creating a monolithic structure with exceptional rigidity, vibration resistance and thermal shock resistance. Eliminates flange leakage risks, perfect for buried, high-vibration and continuous-operation power plant piping systems.

6. Stellite Hardfaced Zero Leakage Sealing

Wedge and seat sealing surfaces are overlaid with Stellite 612 hard alloy and precision ground. Provides outstanding wear resistance, erosion resistance and high-temperature hardness, maintaining bubble-tight sealing performance even after thousands of cycles. Optimized wedge guidance reduces friction and extends service life in high-temperature steam service.

7. OS&Y Rising Stem with High-Temp Packing

Features Outside Screw and Yoke (OS&Y) rising stem design, isolating threads from high-temperature media to prevent oxidation, corrosion and jamming. Visible stem travel clearly indicates open/closed status for safe operation. Equipped with flexible graphite packing for reliable external sealing under extreme temperature fluctuations.

8. Wide Temperature Adaptability (-29°C ~ 550°C)

Engineered for continuous high-temperature service up to 550°C. All internal components—stem, seal, trim—are selected and tested for high-temperature stability, compatible with superheated steam, high-temperature oil, gas and petrochemical process media.

Technical Specifications

Installation, Operation & Maintenance Notes

1. Strict Operating Limits for Power Plant Service

This 1500LB A182F22 gate valve is designed for full-open/full-closed isolation only. Throttling is strictly prohibited to avoid high-velocity media erosion of hard sealing surfaces. Operation beyond 1500LB pressure or 550°C temperature is forbidden to prevent A182F22 creep damage and seal failure.

2. Professional BW Welding Installation Required

BW butt welding must be performed by certified high-temperature welders. Pre-weld preheating (150–300°C) and post-weld stress relief (700–760°C) are mandatory to avoid cracking of the A182F22 forged body. Install with stem vertical upward, align with flow direction, and reserve sufficient space for insulation and maintenance.

3. Regular Inspection of Pressure Seal System

Periodically check the pressure seal bonnet and packing box for tightness. Replace aged gaskets and packing to maintain dynamic self-sealing performance. Lubricate the OS&Y stem threads with high-temperature anti-seize grease every 3–6 months to ensure smooth operation.

4. Safety Maintenance Under Pressure

Never disassemble pressure-bearing or self-sealing components while the pipeline is under pressure. All maintenance must be done after depressurization and purging. Avoid frequent on/off cycling to minimize mechanical wear and extend service life.

Applications

•Power Plant & Thermal Power: Main steam lines, boiler feedwater systems, high-temperature reheat piping, power station critical isolation valves

•High-Temperature Petrochemical: Hydrocracking units, high-temperature reactors, thermal oil loops, heavy oil transfer lines

•Energy & Process Industry: Industrial boiler systems, high-pressure steam distribution, combined cycle power plant piping

•High-Pressure Steam Systems: Superheated steam transmission, compressed gas lines, synthetic ammonia plant high-pressure loops

•Critical Industrial Piping: Zero-leakage high-temperature isolation, long-term continuous operation systems, extreme condition safety cut-off valves

Product Competitive Advantages

✅ A182F22 Chrome-Moly Forged Construction — Superior creep & oxidation resistance at 550°C, ideal for power plant steam service.

✅ 1500LB High Pressure Rating — Engineered for PN250 high pressure, reliable in demanding power plant and industrial conditions.

✅ API600 Full Compliance & API598 Tested — Global standard recognition, suitable for international power and petrochemical projects.

✅ Pressure Seal Bonnet (Self-Sealing) — Higher pressure = tighter seal, eliminates high-pressure leakage issues.

✅ BW Welded Monolithic Connection — Leak-proof, vibration-resistant, ideal for high-temperature steam and buried lines.

✅ Stellite Hardfaced Sealing — Long service life, minimal maintenance, zero leakage performance.

Order & Certification Information

MOQ: 1 Unit

Production Lead Time: 18–30 working days for standard sizes; customized specifications negotiable

Supporting Documents: EN10204 3.1 Material Certificate, API598 Test Report, ISO9001 Quality Certificate, A182F22 Material Traceability Report

Export Packaging: Anti-rust & high-temperature corrosion protection + Reinforced fumigation-free wooden case

Warranty: 12-month quality warranty + lifelong technical support

Contact Us for customized operation modes, special pressure/temperature parameters and bulk pricing of 1500LB A182F22 API600 pressure seal gate valves.

What Is an API Power Station Gate Valve

An API Power Station Gate Valve is a heavy duty isolation valve designed for power generation systems handling steam, water, and other process media under demanding conditions. It operates through a wedge gate that moves vertically to fully open or completely block the flow path. Manufactured according to API requirements, the valve provides dependable sealing and high structural strength. It is commonly used in thermal power plants, steam pipelines, and auxiliary process systems where reliable shutoff is essential.

Why the API Power Station Gate Valve Matters

This valve is important because it provides secure isolation and stable performance in high temperature and high pressure environments. API standards help ensure reliable construction, material integrity, and operational safety. The valve protects critical equipment by maintaining controlled flow conditions and minimizing leakage risks. Its robust design and durable components contribute to the long term reliability of power station systems and help support continuous plant operation.

Common Product Types by API Power Station Gate Valve

Common product types include flexible wedge gate valves, solid wedge gate valves, and pressure seal gate valves designed for severe service applications. Bonnet configurations may include bolted bonnet, welded bonnet, and pressure seal bonnet structures. Manual handwheel, bevel gear, electric actuator, and pneumatic actuator options are available. Different alloy steel and stainless steel materials are selected to meet high temperature and corrosion resistance requirements.

Key Advantages of API Power Station Gate Valve

The valve offers reliable shutoff performance, low flow resistance, and excellent resistance to pressure and temperature stress. API compliant construction enhances durability and operational stability. Strong body materials and hardened sealing surfaces provide long service life and improved wear resistance. Multiple actuation methods allow flexible control options, making the valve suitable for demanding power generation environments requiring dependable and continuous operation.

API Power Station Gate Valve Machine Structure and Core Stations
