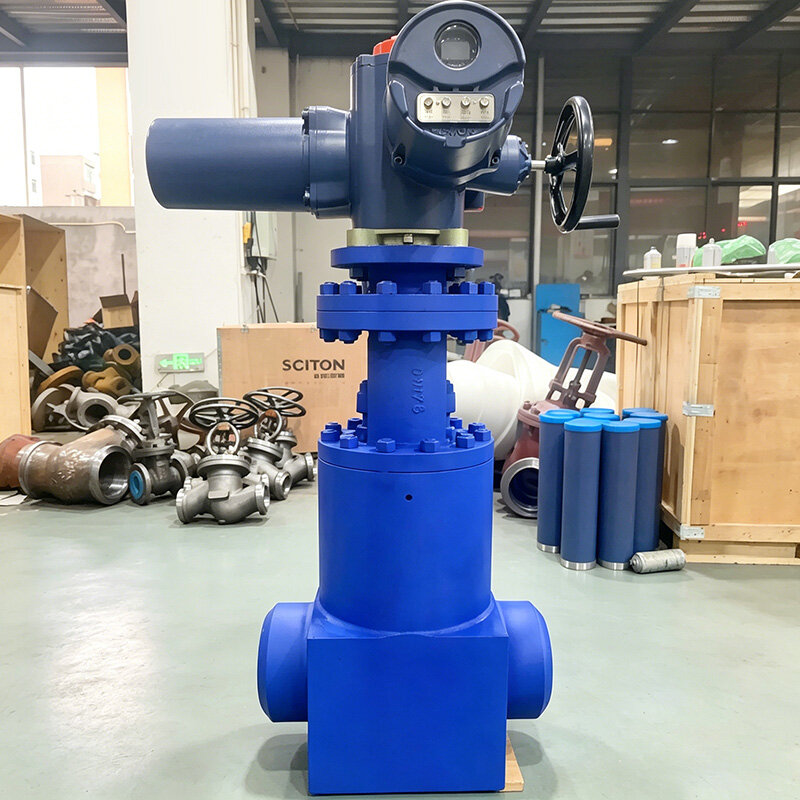

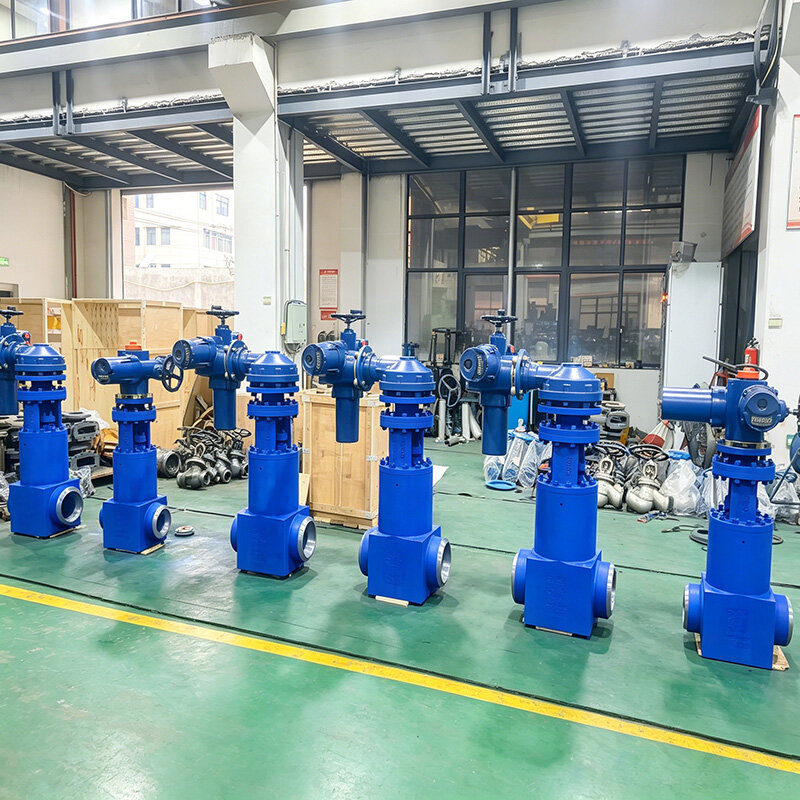

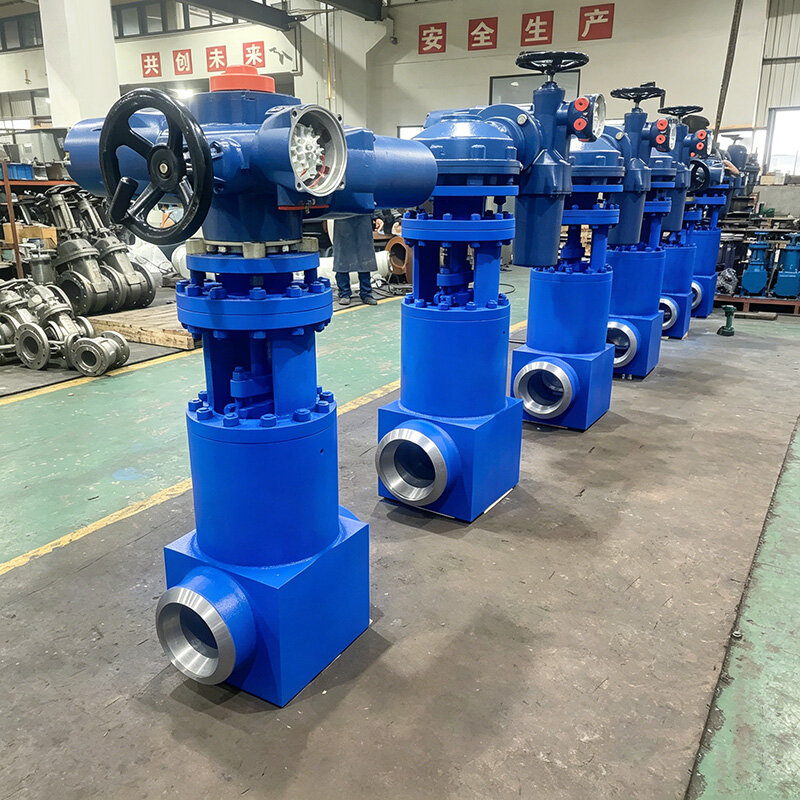

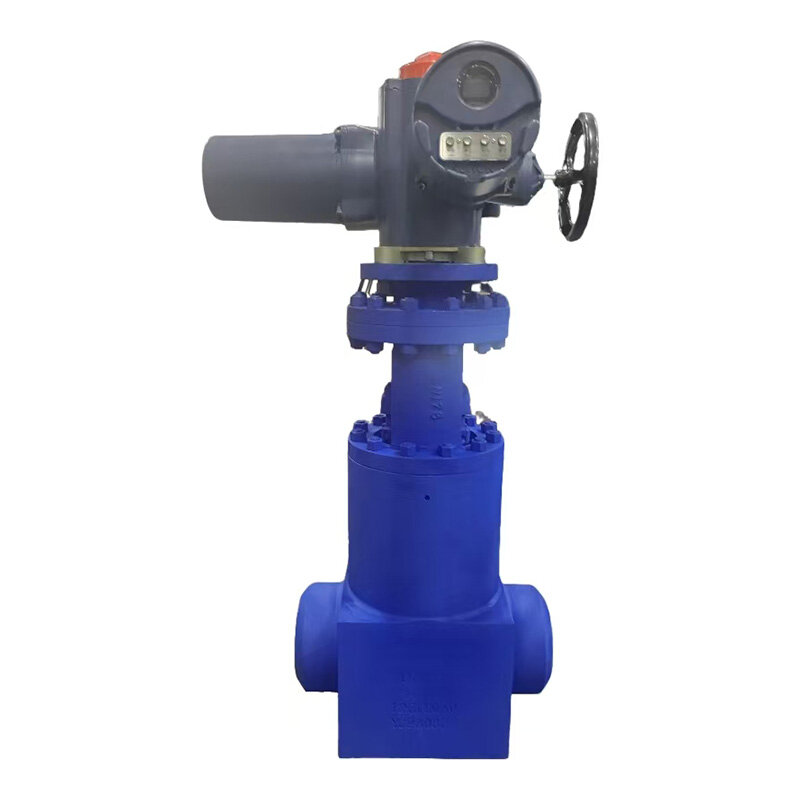

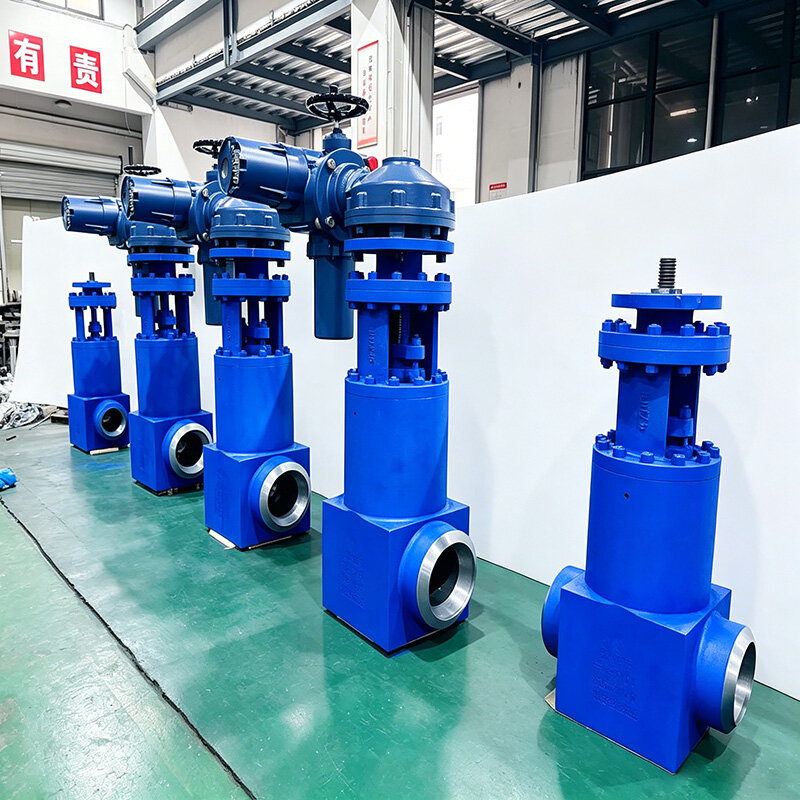

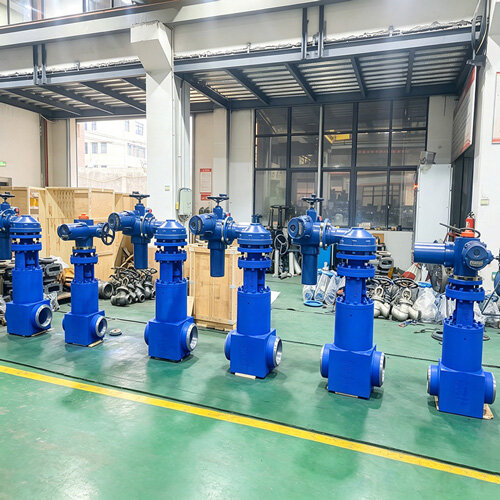

1500LB Electric Welded Self-Sealing Integral Forged High Temperature High Pressure API600 Gate Valve

Product Overview

The 1500LB Electric Welded Self-Sealing Integral Forged High Temperature High Pressure API600 Gate Valve is a full-standard American pipeline-grade gate valve strictly manufactured per API600 and ASME B16 series industrial specifications. As a high-end heavy-duty isolation valve, it integrates seven core advantages: 1500LB ultra-high pressure rating, electric automatic operation, welded BW connection, pressure self-sealing, integral forging molding, A182 F11 high-temperature alloy steel and American standard high-temperature high-pressure resistance, perfectly solving the leakage, deformation and short service life defects of ordinary cast steel gate valves under extreme working conditions.

Different from conventional spliced valves, this API600 gate valve adopts one-piece integral forging process with no pressure-bearing welding seams, featuring dense metal structure and zero casting defects. Equipped with advanced pressure self-sealing bonnet, the valve achieves tighter sealing under higher medium pressure, realizing long-term bidirectional zero leakage. The ASME standard welded connection integrates seamlessly with pipelines, eliminating flange loosening risks. Matched with intelligent electric actuator and OS&Y rising stem hard seal structure, this 1500LB high-pressure gate valve stably operates under -29℃ to 550℃ high-temperature and ultra-high pressure environments, becoming the preferred safety control valve for high-standard thermal power, petrochemical and heavy industrial pipeline systems.

Core Product Features

1. Standard API600 American Standard Certification

This 1500LB high-pressure gate valve fully complies with API600 steel valve standards, matching ASME B16.34 pressure-temperature parameters, ASME B16.10 face-to-face dimensions and ASME B16.25 welded end specifications. All products pass API598 strict hydrostatic and sealing tests, fully meeting international American standard pipeline engineering acceptance standards, suitable for global high-temperature high-pressure industrial pipeline supporting projects.

2. 1500LB Ultra-High Pressure Resistant Performance

Customized for 1500LB (PN260) extreme ultra-high pressure working conditions, the thickened integral forged valve body adopts optimized pressure-bearing structure design. It effectively resists long-term high-pressure medium impact and pipeline pressure fluctuation, avoids valve body deformation and sealing failure, and maintains stable isolation performance in ultra-high pressure pipeline systems.

3. Integral Forged Steel Body, Higher Structural Stability

The whole valve body adopts A182 F11 chromium-molybdenum alloy integral forging molding, abandoning traditional cast steel structure. The one-piece forging process ensures uniform and dense metal texture, no pores, sand holes and structural defects. It has excellent mechanical strength and anti-fatigue performance, adapting to long-cycle continuous operation of high-temperature high-pressure pipelines.

4. Pressure Self-Sealing Structure, Zero Leakage

Featured with professional self-sealing pressure bonnet design exclusive for high-pressure valves. Different from ordinary bolted bonnets, it realizes automatic pressure compensation — the higher the medium pressure, the tighter the sealing fit. The wedge and valve seat are overlaid with Stellite hard alloy, which is wear-resistant, scouring-resistant and high-temperature resistant, achieving permanent bubble-tight zero leakage for high-pressure medium.

5. BW Welded Connection, Pipeline Integrated Design

Adopts American standard butt welded (BW) connection, which can be integrally welded with industrial pipelines. The welded integrated structure has higher connection strength and excellent anti-vibration and anti-pressure performance, completely eliminating the hidden leakage danger of traditional flange connection loosening. It is applicable to buried, high-vibration and uninterrupted operating high-pressure pipelines.

6. Electric Automatic Intelligent Control

Equipped with high-performance industrial electric actuator, supporting remote automatic opening and closing, precise stroke positioning and DCS system integration. It realizes intelligent pipeline remote control, reduces manual operation cost, and is equipped with emergency manual handwheel to ensure safe switching under power failure or fault conditions, meeting modern automated industrial pipeline operation requirements.

7. Superb High Temperature Resistance

Made of professional A182 F11 high-temperature resistant alloy steel, it has outstanding high-temperature oxidation resistance and creep resistance, stably adapting to 550℃ ultra-high temperature working environment. It effectively avoids structural aging and sealing failure caused by long-term high-temperature scouring, ensuring long-term stable operation of high-temperature process pipelines.

Complete Technical Specifications

Installation, Operation & Maintenance Notes

1. Standard Operation Specifications

This 1500LB API600 gate valve is only designed for full-open and full-closed pipeline isolation, strictly prohibited for flow throttling. Long-term partial opening will cause high-speed medium scouring on hard sealing surfaces and lead to internal leakage. Over-pressure and over-temperature operation beyond 1500LB pressure and 550℃ temperature range is forbidden to prevent valve body deformation and sealing failure. Cut off power supply completely before manual emergency operation to avoid motor burnout and safety accidents.

2. Professional Welding & Installation

The welded connection construction must be operated by certified professional welders. Post-weld heat treatment is mandatory to eliminate welding stress and prevent forged valve body cracking. During installation, strictly protect self-sealing components and electric actuators from collision, scratch and rain erosion. Reserve sufficient maintenance space for electric control parts to facilitate daily inspection and overhaul.

3. Daily Maintenance Management

Regularly lubricate OS&Y rising stem threads with high-temperature special grease to prevent thread galling and jamming. Avoid over-tightening the packing gland to prevent increased stem friction and electric motor damage. All pressure-bearing components are forbidden to disassemble under pressure; all maintenance work must be carried out after pipeline depressurization and medium purging.

4. Long-Term Anti-Corrosion Protection

For valves serving in high-temperature steam pipelines, regularly detect the tightness of self-sealing bonnet and packing box to prevent high-temperature medium leakage. For long-term idle equipment, keep the valve half-open, dry the inner cavity with nitrogen and apply anti-rust treatment to avoid residual medium corrosion and structural damage.

Applications

•Thermal Power Industry: 1500LB ultra-high pressure main steam pipelines, boiler high-temperature auxiliary systems, thermal cycle high-pressure pipeline safety isolation equipment

•Petrochemical Refinery: High-temperature cracking process pipelines, heavy oil high-pressure delivery systems, high-temperature reaction pipeline cut-off protection devices

•High-Pressure Chemical Industry: Ultra-high temperature and pressure medium transmission pipelines, high-pressure gas purification and delivery systems

•Heavy Industrial Engineering: Extreme working condition pipeline safety isolation, long-cycle uninterrupted operation intelligent pipeline control systems

•High-End Energy Projects: American standard high-temperature high-pressure pipeline supporting equipment for overseas thermal power and chemical energy projects

Advantages of Our 1500LB API600 Forged Electric Gate Valve

✅ Full Keyword Matching & Standard Compliance — 100% compliant with API600 American standard, covering 1500LB high pressure, high temperature resistance, electric drive, welded connection and self-sealing core attributes, highly matched with Google user search intent.

✅ A182 F11 Integral Forged Molding — One-piece forging without pressure-bearing seams, dense structure, no casting defects, far more stable than cast steel valves for long-term high-temperature and high-pressure operation.

✅ Self-Sealing Zero Leakage Technology — Pressure self-compensating sealing design, tighter sealing under higher pressure, solving the leakage pain point of traditional high-pressure valves.

✅ BW Welded Integrated Structure — Seamless pipeline integration, super high structural strength, anti-vibration and anti-leakage, suitable for harsh industrial pipeline environments.

✅ Intelligent Electric Control System — Remote automatic control + manual backup, realizing intelligent pipeline management, saving operation and maintenance costs.

✅ Extreme Working Condition Adaptability — Stably resist 1500LB ultra-high pressure and 550℃ high temperature, professional for heavy-duty thermal power and petrochemical extreme working conditions.

Order & Certification Information

MOQ: 1 Unit

Production Lead Time: 20-35 working days for standard 1500LB sizes

Supporting Certificates: EN10204 3.1 Material Certificate, API598 Test Report, ISO9001 Quality Management Certificate

Export Packaging: Anti-rust oil treatment + Reinforced fumigation-free export wooden case

Quality Warranty: 18-month professional warranty + lifelong technical support

Contact Us for customized parameters, special actuator types and bulk preferential quotation of 1500LB electric welded self-sealing integral forged API600 high temperature high pressure gate valves.

What Is an API Power Station Gate Valve

An API Power Station Gate Valve is a heavy duty isolation valve designed for demanding power generation applications involving steam, water, and other process media. It operates by raising or lowering a wedge gate to completely open or shut off the flow path. Manufactured in accordance with API standards, the valve is engineered to withstand elevated temperatures and severe pressure conditions. It is widely used in thermal power plants, boiler systems, and main steam pipelines where dependable sealing is essential.

Why the API Power Station Gate Valve Matters

This valve is important because it ensures safe and reliable isolation in critical power station systems. API standards provide confidence in material quality, structural strength, and sealing performance. The valve helps protect boilers, turbines, and auxiliary equipment by maintaining stable flow conditions and preventing leakage. Its ability to perform under demanding operating environments makes it an essential component for continuous and efficient power generation processes.

Common Product Types by API Power Station Gate Valve

Common product types include flexible wedge gate valves, solid wedge gate valves, and pressure seal gate valves. Different bonnet structures such as bolted bonnet, welded bonnet, and pressure seal designs are selected according to service requirements. Operation methods include manual handwheel, bevel gear, electric actuator, and pneumatic actuator configurations. Various alloy steel and stainless steel materials are available to meet high temperature, high pressure, and corrosive service conditions.

Key Advantages of API Power Station Gate Valve

The valve offers reliable shutoff capability, low pressure loss, and excellent resistance to thermal and mechanical stress. API compliant construction ensures durability and operational stability. Hardened sealing surfaces improve wear resistance and extend service life. The full bore flow path minimizes turbulence when the valve is fully open. Multiple actuation options provide flexibility for different control systems used in modern power generation facilities.

API Power Station Gate Valve Machine Structure and Core Stations

Manufacturing begins with forging or casting the body, bonnet, wedge, and stem using high strength materials. Core stations include heat treatment and precision CNC machining of guide slots, sealing surfaces, stem threads, and connection ends. Hardfacing processes are applied to the seat and wedge areas to enhance wear resistance. Assembly stations install the wedge, stem, packing components, bonnet, and operating mechanism. Final operations include pressure testing, surface treatment, cleaning, marking, and packaging to ensure reliable sealing and dimensional accuracy.
