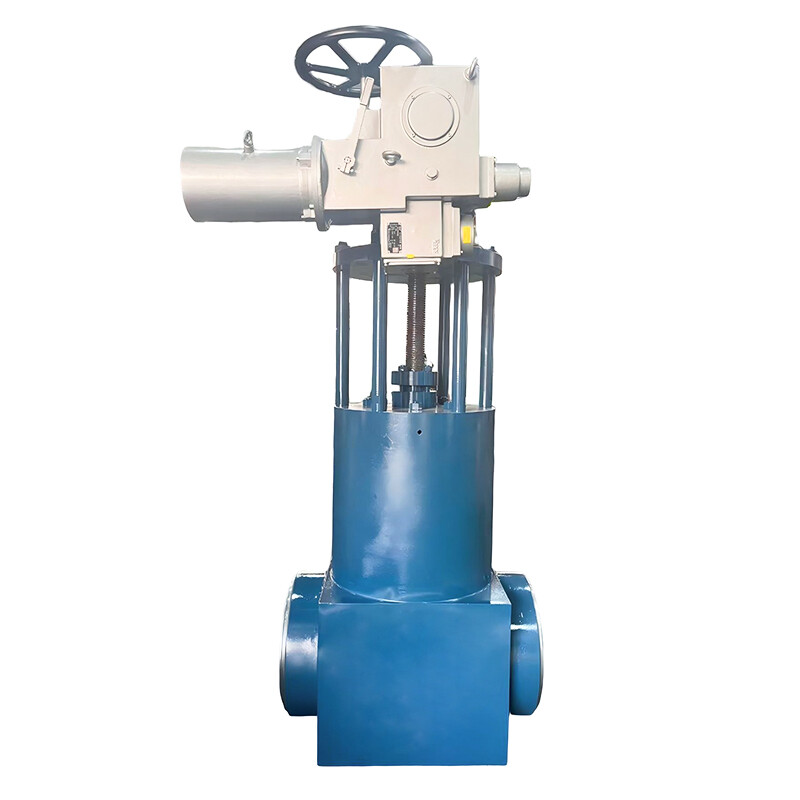

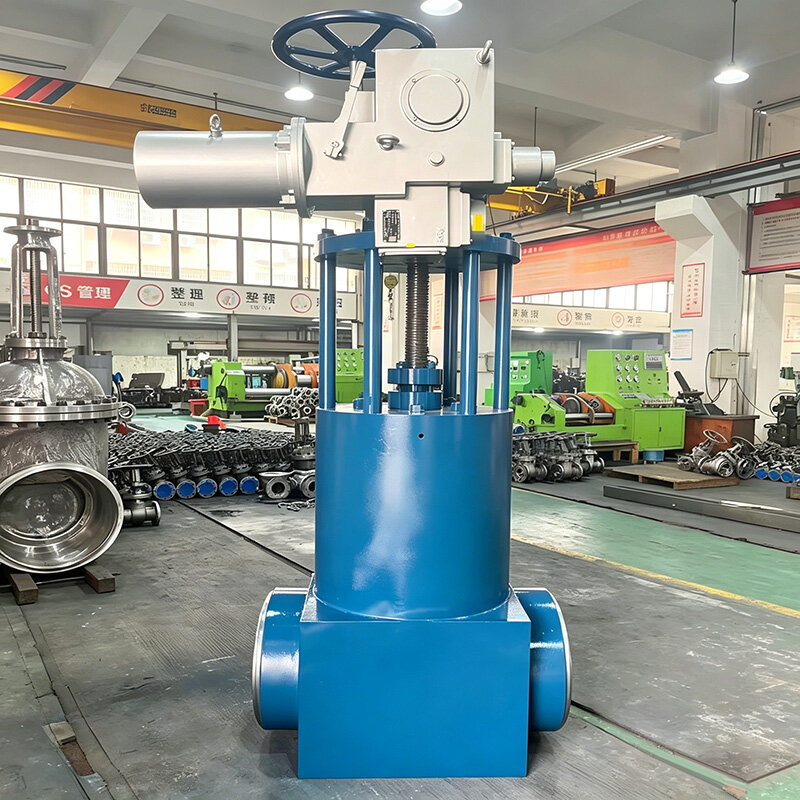

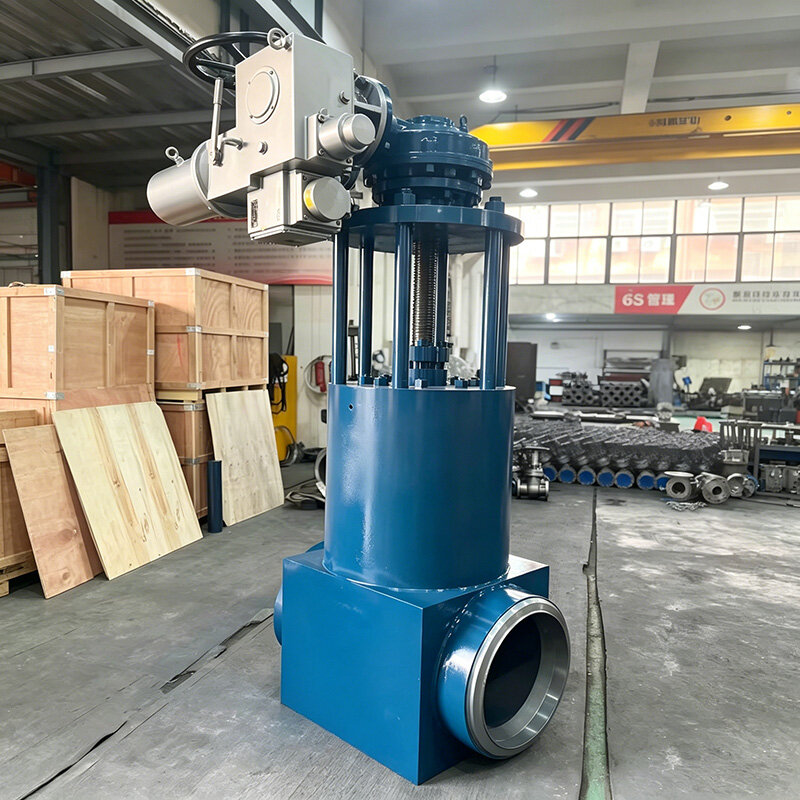

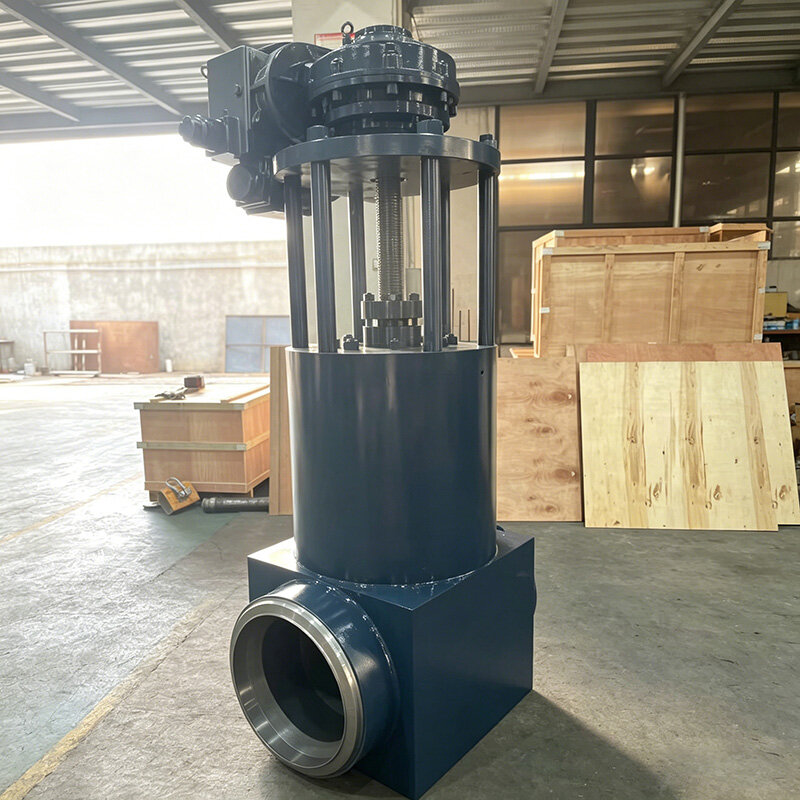

1500LB Large Bore Forged F11 High Temperature High Pressure API600 Pressure Seal Power Plant Gate Valve

Product Overview

The 1500LB Large Bore Forged F11 High Temperature High Pressure API600 Pressure Seal Power Plant Gate Valve is a heavy-duty chrome-moly alloy steel isolation valve engineered for power station large-diameter main steam and extreme pressure systems. Built strictly to API600 and ASME B16 series American standards, this valve adopts one-piece integral forging from ASTM A182 F11 (1.25Cr-0.5Mo) alloy steel, delivering excellent creep resistance, high-temperature oxidation resistance and thermal stability. The advanced pressure seal bonnet (self-sealing) design ensures tighter sealing as pipeline pressure rises, while the BW butt welded end enables a robust, leak-proof connection for large-bore high-temperature process piping. Ideal for power plant main steam lines, large-diameter boiler feedwater systems and petrochemical high-temperature loops, this API600 gate valve provides stable zero-leakage isolation under 1500LB (PN250) high pressure and up to 540°C continuous service.

Core Product Features

1. API600 Certified for Large Bore Power Plant Service

Fully compliant with API600 steel valve design criteria, ASME B16.34 pressure-temperature ratings, ASME B16.10 face-to-face dimensions and ASME B16.25 welded end specifications. Every unit undergoes rigorous API598 hydrostatic testing and bubble-tight sealing inspection, meeting the most stringent international standards for power plant large-diameter and high-temperature industrial piping.

2. A182F11 Chrome-Moly Alloy Integral Forged Body

Constructed from ASTM A182 F11 (1.25Cr-0.5Mo) low-alloy heat-resistant steel via hot integral forging process. The refined grain structure eliminates casting defects, providing superior high-temperature creep strength, oxidation resistance and long-term structural integrity. Far more reliable than carbon steel valves under sustained high-temperature and pressure cycling.

3. 1500LB High Pressure Rating (PN250)

Designed for Class 1500LB (3705 PSI  255 Bar) maximum working pressure. Thickened forged body with finite element optimized pressure distribution ensures stable performance under pressure surges and long-term high-load operation. The robust structure resists deformation, fatigue and sealing failure in critical power plant systems.

4. Pressure Seal Bonnet (Self-Sealing) Technology

Adopts high-pressure dedicated pressure seal bonnet structure, replacing traditional bolted bonnet design. Relies on medium pressure to drive the sealing assembly for automatic compensation—higher pressure = tighter seal, completely eliminating packing leakage under high pressure. Ideal for zero-emission, zero-leakage requirements in power plant steam lines.

5. Large Bore BW Butt Welded End for High-Temperature Piping

Comes with ASME B16.25 standard BW butt welded ends in large diameter sizes (NPS 10"–NPS 48"). Enables full penetration welding with on-site large-bore pipelines, creating a monolithic structure with exceptional rigidity, vibration resistance and thermal shock resistance. Eliminates flange leakage risks, perfect for buried, high-vibration and continuous-operation power plant piping systems.

6. Stellite Hardfaced Zero Leakage Sealing

Wedge and seat sealing surfaces are overlaid with Stellite 612 hard alloy and precision ground. Provides outstanding wear resistance, erosion resistance and high-temperature hardness, maintaining bubble-tight sealing performance even after thousands of cycles. Optimized wedge guidance reduces friction and extends service life in high-temperature steam service.

7. OS&Y Rising Stem with High-Temp Packing

Features Outside Screw and Yoke (OS&Y) rising stem design, isolating threads from high-temperature media to prevent oxidation, corrosion and jamming. Visible stem travel clearly indicates open/closed status for safe operation. Equipped with flexible graphite packing for reliable external sealing under extreme temperature fluctuations.

8. Wide Temperature Adaptability (-29°C ~ 540°C)

Engineered for continuous high-temperature service up to 540°C. All internal components—stem, seal, trim—are selected and tested for high-temperature stability, compatible with superheated steam, high-temperature oil, gas and petrochemical process media.

Complete Technical Specifications

Installation, Operation & Maintenance Notes

1. Strict Operating Limits for Large Bore Power Plant Service

This 1500LB F11 large bore gate valve is designed for full-openfull-closed isolation only. Throttling is strictly prohibited to avoid high-velocity media erosion of hard sealing surfaces. Operation beyond 1500LB pressure or 540°C temperature is forbidden to prevent F11 creep damage and seal failure.

2. Professional Large Bore BW Welding Installation Required

BW butt welding must be performed by certified high-temperature welders. Pre-weld preheating (120–280°C) and post-weld stress relief (680–730°C) are mandatory to avoid cracking of the F11 forged body. Install with stem vertical upward, align with flow direction, and reserve sufficient space for insulation and maintenance.

3. Regular Inspection of Pressure Seal System

Periodically check the pressure seal bonnet and packing box for tightness. Replace aged gaskets and packing to maintain dynamic self-sealing performance. Lubricate the OS&Y stem threads with high-temperature anti-seize grease every 3–6 months to ensure smooth operation.

4. Safety Maintenance Under Pressure

Never disassemble pressure-bearing or self-sealing components while the pipeline is under pressure. All maintenance must be done after depressurization and purging. Avoid frequent on/off cycling to minimize mechanical wear and extend service life.

Applications

•Power Plant & Thermal Power: Large-diameter main steam lines, boiler feedwater systems, high-temperature reheat piping, power station critical isolation valves

•High-Temperature Petrochemical: Hydrocracking units, high-temperature reactors, thermal oil loops, heavy oil transfer lines

•Energy & Process Industry: Industrial boiler systems, high-pressure steam distribution, combined cycle power plant piping

•High-Pressure Steam Systems: Superheated steam transmission, compressed gas lines, synthetic ammonia plant high-pressure loops

•Critical Industrial Piping: Zero-leakage high-temperature isolation, long-term continuous operation systems, extreme condition safety cut-off valves

Advantages of Our 1500LB API600 Forged Electric Gate Valve

✅ A182F11 Chrome-Moly Forged Construction — Superior creep & oxidation resistance at 540°C, ideal for power plant steam service.

✅ 1500LB High Pressure Rating — Engineered for PN250 high pressure, reliable in demanding power plant and industrial conditions.

✅ API600 Full Compliance & API598 Tested — Global standard recognition, suitable for international power and petrochemical projects.

✅ Pressure Seal Bonnet (Self-Sealing) — Higher pressure = tighter seal, eliminates high-pressure leakage issues.

✅ Large Bore BW Welded Monolithic Connection — Leak-proof, vibration-resistant, ideal for high-temperature steam and buried lines.

✅ Stellite Hardfaced Sealing — Long service life, minimal maintenance, zero leakage performance.

Order & Certification Information

MOQ: 1 Unit

Production Lead Time: 25–40 working days for standard large sizes; customized specifications negotiable

Supporting Documents: EN10204 3.1 Material Certificate, API598 Test Report, ISO9001 Quality Certificate, A182F11 Material Traceability Report

Export Packaging: Anti-rust & high-temperature corrosion protection + Reinforced fumigation-free wooden case

Warranty: 12-month quality warranty + lifelong technical support

Contact Us for customized operation modes, special pressure/temperature parameters and bulk pricing of 1500LB F11 large bore API600 pressure seal gate valves.

What Is an API Power Station Gate Valve

An API Power Station Gate Valve is a specialized shutoff valve developed for severe service conditions found in power generation facilities. It controls the flow of steam, feedwater, and other process media by moving a gate vertically inside the valve body. Designed according to API requirements, the valve features robust construction and dependable sealing performance. Its ability to withstand demanding operating environments makes it suitable for boiler systems, steam distribution lines, and auxiliary equipment in power stations.

Why the API Power Station Gate Valve Matters

The API Power Station Gate Valve plays an essential role in maintaining the safety and reliability of power generation systems. It provides effective isolation during maintenance and emergency situations while ensuring stable process operation. Strong materials and precision sealing surfaces help the valve resist thermal stress and pressure fluctuations. By protecting critical equipment and minimizing leakage risks, the valve contributes to efficient plant operation and long term service stability.

Common Product Types by API Power Station Gate Valve

Several types of API Power Station Gate Valves are available to satisfy different operating requirements. Flexible wedge gate valves are widely used because of their excellent sealing capability under changing temperatures. Solid wedge designs are suitable for stable service conditions. Pressure seal gate valves are preferred for demanding steam systems, while welded bonnet versions provide enhanced structural integrity. Manual, electric, and bevel gear operated configurations are commonly selected for different control requirements.

Key Advantages of API Power Station Gate Valve

The API Power Station Gate Valve offers excellent sealing performance and strong resistance to harsh operating environments. Its full bore design allows smooth flow with minimal pressure loss when fully open. Durable body materials and wear resistant seating surfaces help extend service life and reduce maintenance requirements. The valve is also adaptable to various actuation methods, allowing convenient operation and integration into modern industrial control systems.

API Power Station Gate Valve Machine Structure and Core Stations

The manufacturing process begins with forging or casting major components such as the body, bonnet, wedge, and stem from high strength materials. Core production stations include heat treatment, precision machining, and hardfacing of critical sealing areas to enhance durability. Assembly stations are responsible for installing the wedge, stem, packing components, and operating mechanism. Final stages involve pressure testing, surface finishing, cleaning, inspection, marking, and packaging to ensure reliable sealing performance and consistent product quality.
