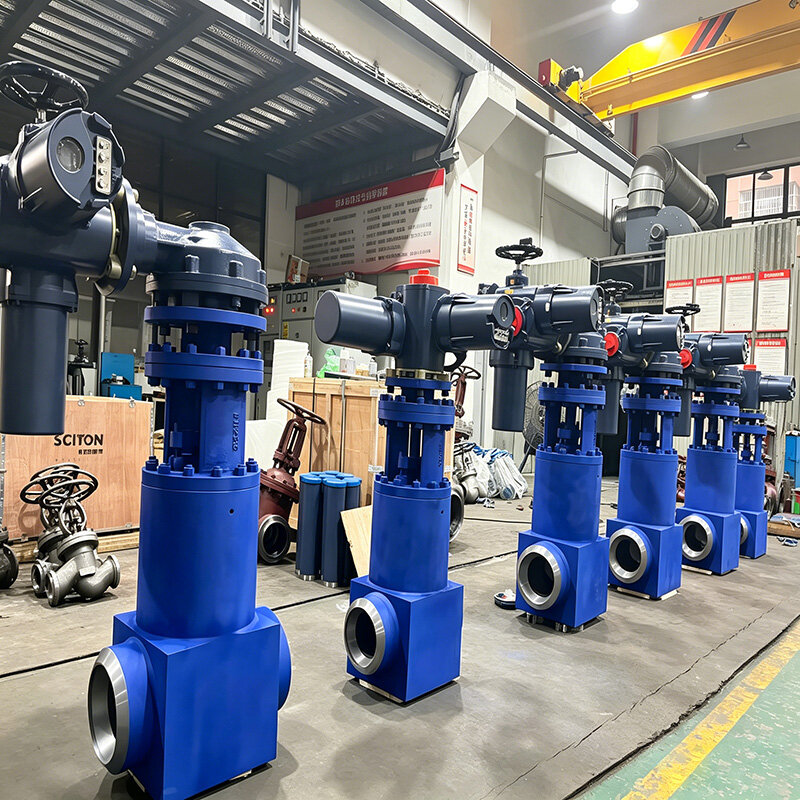

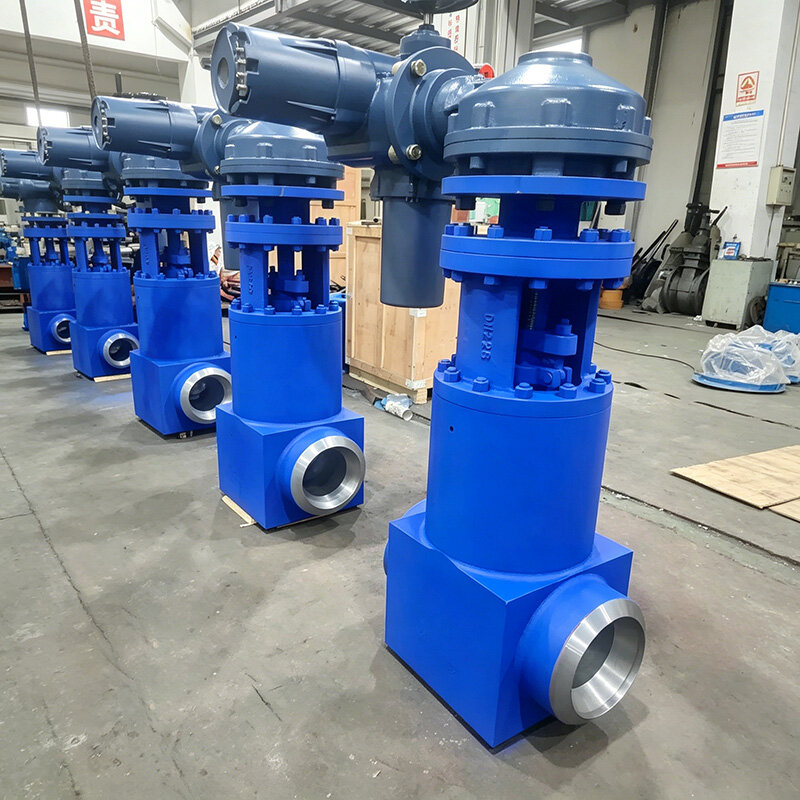

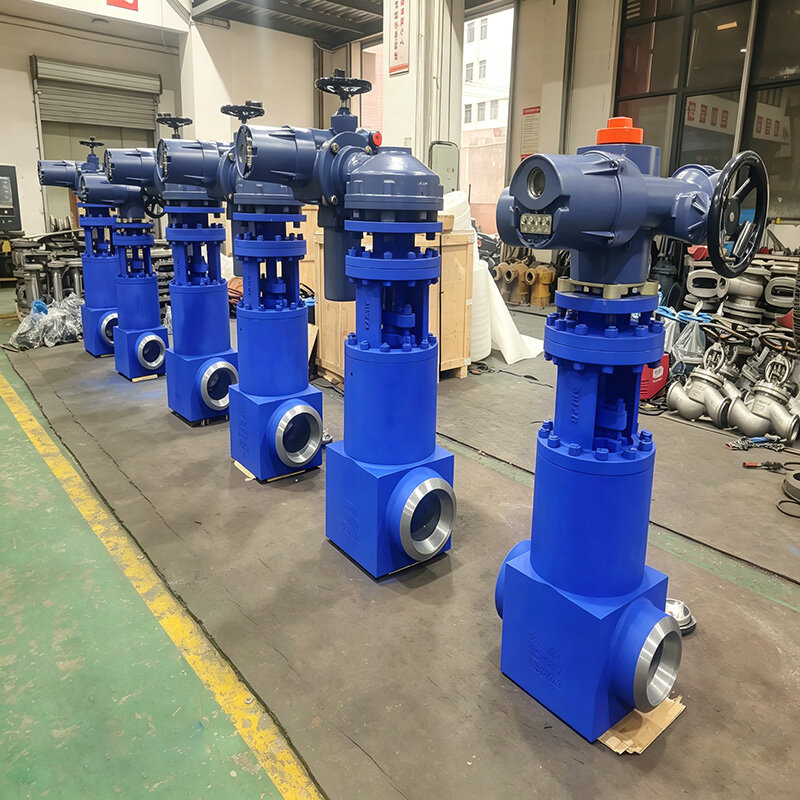

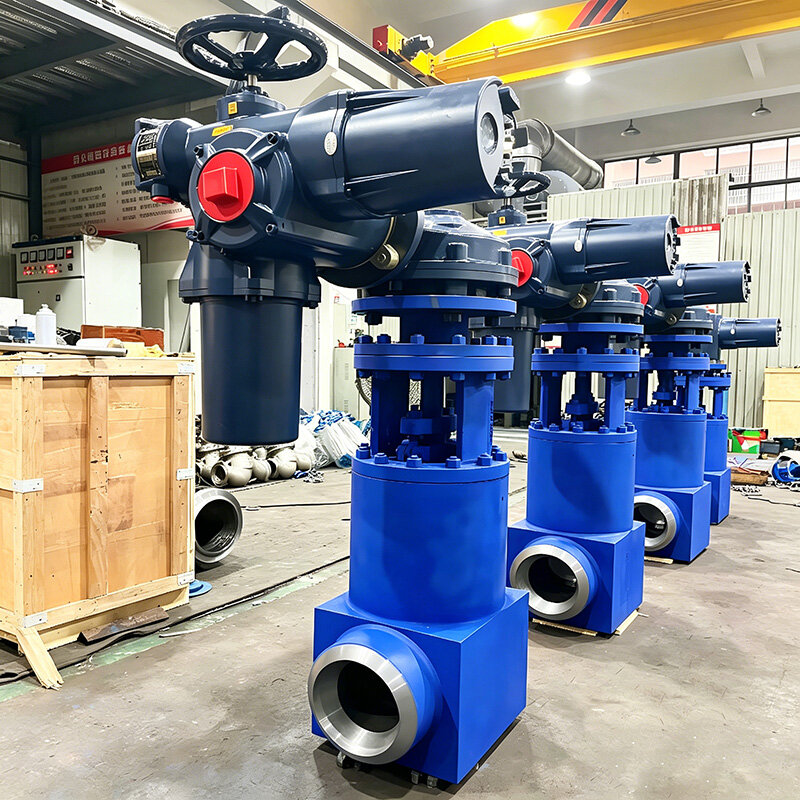

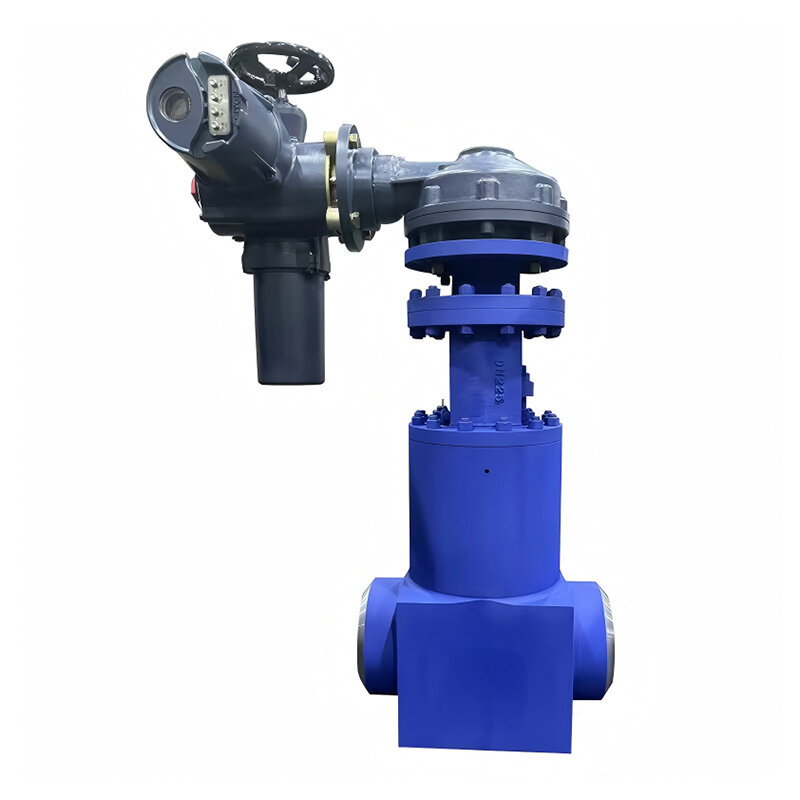

2500LB A182F91 High Temperature High Pressure Integral Forged BW API600 Pressure Seal Gate Valve

Product Overview

The 2500LB A182F91 High Temperature High Pressure Integral Forged BW API600 Pressure Seal Gate Valve is a premium alloy steel isolation valve engineered for ultra-high temperature and extreme pressure industrial conditions. Built strictly to API600 and ASME B16 series standards, this valve adopts one-piece integral forging from ASTM A182 F91 (12Cr1MoV) alloy steel, delivering exceptional creep resistance, high-temperature oxidation resistance and structural stability. The advanced pressure seal bonnet design enables tighter sealing as pressure rises, while the BW butt welded end ensures a permanent, leak-proof connection with high-temperature steam and process piping. Ideal for supercritical power plants, high-temperature petrochemical lines and extreme pressure energy systems, this API600 gate valve provides reliable zero-leakage isolation under 2500LB (PN420) high pressure and up to 650°C continuous service.

Core Product Features

1. API600 Certified for Critical High-Pressure Service

Fully compliant with API600 steel valve design criteria, ASME B16.34 pressure-temperature ratings, ASME B16.10 face-to-face dimensions and ASME B16.25 welded end specifications. Every unit undergoes rigorous API598 hydrostatic testing and bubble-tight sealing inspection, meeting the most stringent international standards for high-temperature high-pressure industrial piping.

2. A182F91 Alloy Steel Integral Forged Body

Constructed from ASTM A182 F91 (12Cr1MoV) chromium-molybdenum alloy steel via hot integral forging process. The refined grain structure eliminates casting defects, providing superior high-temperature creep strength, oxidation resistance and long-term structural integrity. Far more reliable than cast steel valves under sustained extreme heat and pressure cycling.

3. 2500LB Ultra High Pressure Rating (PN420)

Designed for Class 2500LB (6170 PSI  425.5 Bar) maximum working pressure. Thickened forged body with finite element optimized pressure distribution ensures stable performance under extreme pressure surges and long-term high-load operation. The robust structure resists deformation, fatigue and sealing failure in critical industrial systems.

4. Advanced Pressure Seal Bonnet (Self-Sealing)

Adopts high-pressure dedicated pressure seal bonnet structure, replacing traditional bolted bonnet design. Relies on medium pressure to drive the sealing assembly for automatic compensation—higher pressure = tighter seal, completely eliminating packing leakage under extreme pressure. Ideal for zero-emission, zero-leakage requirements in high-temperature steam and process lines.

5. BW Butt Welded End for High-Temperature Piping

Comes with ASME B16.25 standard BW butt welded ends. Enables full penetration welding with on-site pipelines, creating a monolithic structure with exceptional rigidity, vibration resistance and thermal shock resistance. Eliminates flange leakage risks, perfect for buried, high-vibration and continuous-operation high-temperature piping systems.

6. Stellite Hardfaced Zero Leakage Sealing

Wedge and seat sealing surfaces are overlaid with Stellite 612 hard alloy and precision ground. Provides outstanding wear resistance, erosion resistance and high-temperature hardness, maintaining bubble-tight sealing performance even after thousands of cycles. Optimized wedge guidance reduces friction and extends service life in high-temperature service.

7. OS&Y Rising Stem with High-Temp Packing

Features Outside Screw and Yoke (OS&Y) rising stem design, isolating threads from high-temperature media to prevent oxidation, corrosion and jamming. Visible stem travel clearly indicates open/closed status for safe operation. Equipped with flexible graphite packing for reliable external sealing under extreme temperature fluctuations.

8. Extreme Temperature Adaptability (-29°C ~ 650°C)

Engineered for continuous high-temperature service up to 650°C. All internal components—stem, seal, trim—are selected and tested for high-temperature stability, compatible with superheated steam, high-temperature oil, gas and petrochemical media.

Complete Technical Specifications

Installation, Operation & Maintenance Notes

1. Strict Operating Limits for Extreme Conditions

This 2500LB A182F91 gate valve is designed for full-open/full-closed isolation only. Throttling is strictly prohibited to avoid high-velocity media erosion of hard sealing surfaces. Operation beyond 2500LB pressure or 650°C temperature is forbidden to prevent A182F91 creep damage and seal failure.

2. Professional BW Welding Installation Required

BW butt welding must be performed by certified high-temperature welders. Pre-weld preheating and post-weld stress relief are mandatory to avoid cracking of the A182F91 forged body. Install with stem vertical upward, align with flow direction, and reserve sufficient space for insulation and maintenance.

3. Regular Inspection of Pressure Seal System

Periodically check the pressure seal bonnet and packing box for tightness. Replace aged gaskets and packing to maintain dynamic self-sealing performance. Lubricate the OS&Y stem threads with high-temperature anti-seize grease every 3–6 months to ensure smooth operation.

4. Safety Maintenance Under Pressure

Never disassemble pressure-bearing or self-sealing components while the pipeline is under pressure. All maintenance must be done after depressurization and purging. Avoid frequent on/off cycling to minimize mechanical wear and extend service life.

Applications

•Supercritical Power Plants: Main steam lines, boiler feedwater systems, high-temperature reheat piping, power station critical isolation valves

•High-Temperature Petrochemical: Cracking furnaces, high-temperature reactors, thermal oil loops, heavy oil transfer lines

•Energy & Thermal Power: Industrial boiler systems, high-pressure steam distribution, combined cycle power plant piping

•Extreme Pressure Process: High-temperature gas transmission, compressed hydrogen lines, synthetic ammonia plant high-pressure loops

•Critical Industrial Piping: Zero-leakage high-temperature isolation, long-term continuous operation systems, extreme condition safety cut-off valves

Advantages of Our 1500LB API600 Forged Electric Gate Valve

✅ A182F91 High-Alloy Forged Construction — Superior creep & oxidation resistance at 650°C, far more durable than A105/WCB in high-temperature service.

✅ 2500LB Extreme Pressure Rating — Engineered for PN420 ultra-high pressure, reliable in the most demanding industrial conditions.

✅ API600 Full Compliance & API598 Tested — Global standard recognition, suitable for international power and petrochemical projects.

✅ Pressure Seal Bonnet (Self-Sealing) — Higher pressure = tighter seal, eliminates high-pressure leakage issues.

✅ BW Welded Monolithic Connection — Leak-proof, vibration-resistant, ideal for high-temperature steam and buried lines.

✅ Stellite Hardfaced Sealing — Long service life, minimal maintenance, zero leakage performance.

Order & Certification Information

MOQ: 1 Unit

Production Lead Time: 20–35 working days for standard sizes; customized specifications negotiable

Supporting Documents: EN10204 3.1 Material Certificate, API598 Test Report, ISO9001 Quality Certificate, A182F91 Material Traceability Report

Export Packaging: Anti-rust & high-temperature corrosion protection + Reinforced fumigation-free wooden case

Warranty: 12-month quality warranty + lifelong technical support

Contact Us for customized operation modes, special pressure/temperature parameters and bulk pricing of 2500LB A182F91 API600 pressure seal gate valves.
