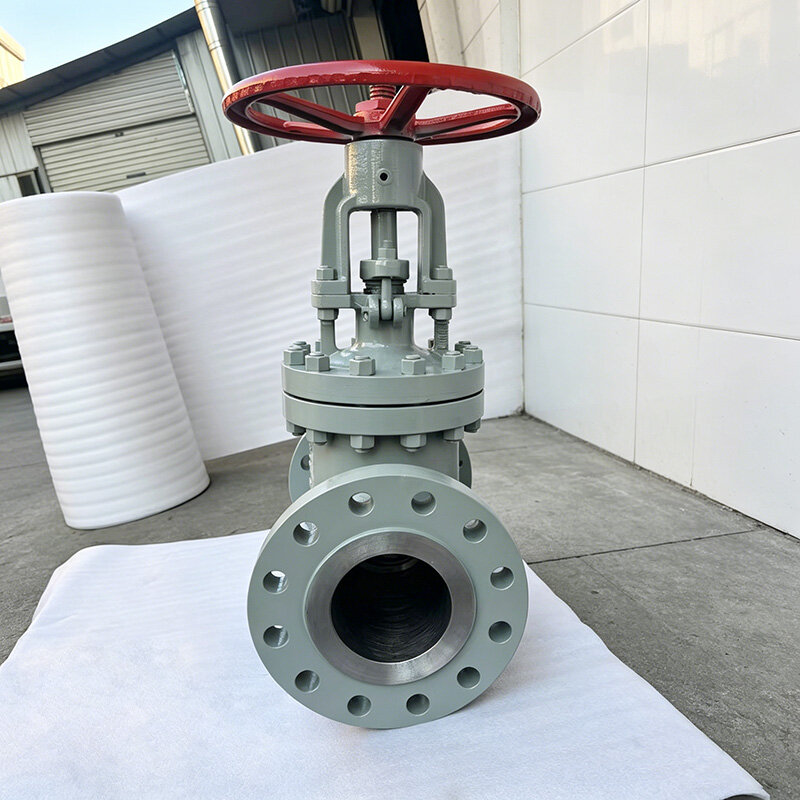

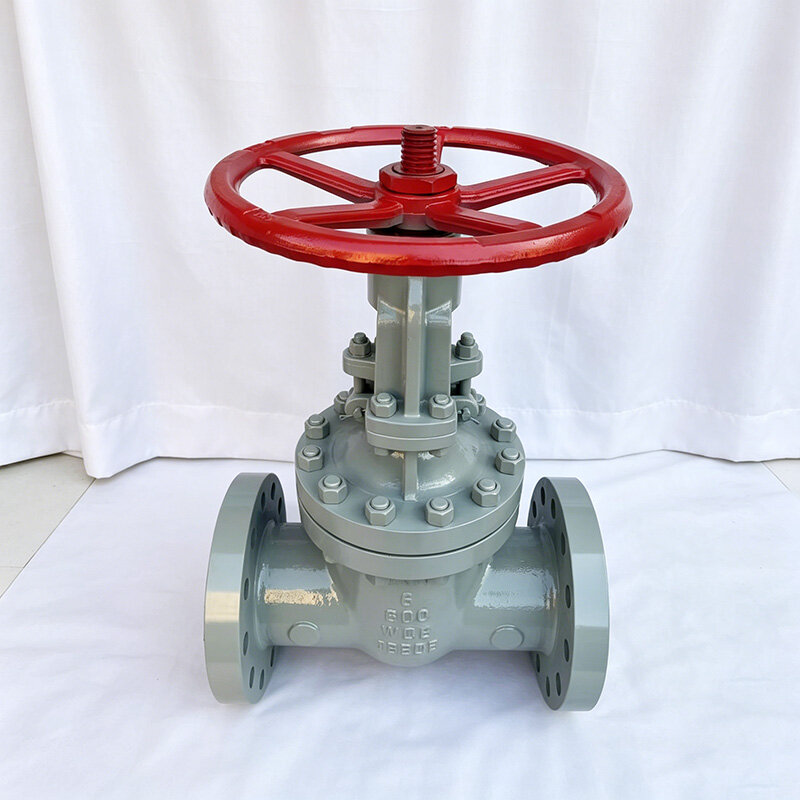

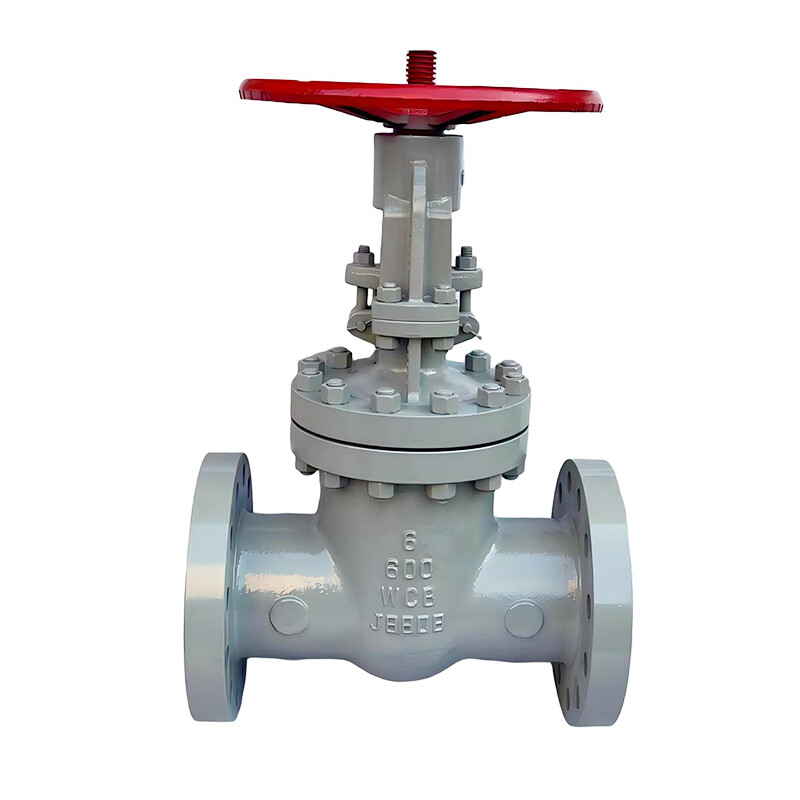

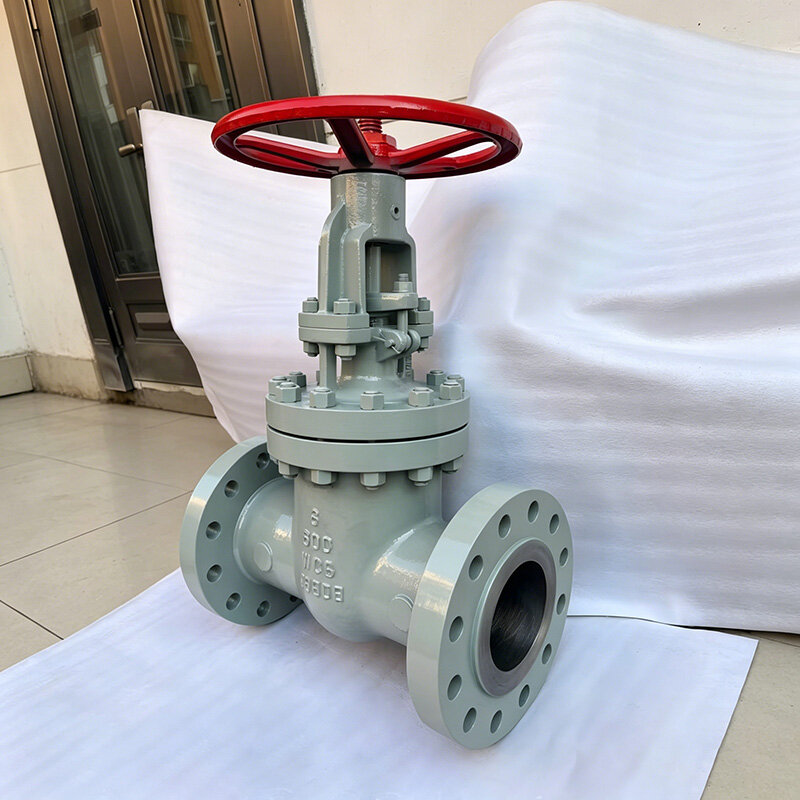

API 600 Class 600 RTJ Flanged High Pressure Gate Valve

Product Overview

The API 600 Class 600 RTJ Flanged High Pressure Gate Valve is a heavy-duty industrial isolation valve designed strictly in accordance with API 600, ASME B16.34 and ASME B16.5 standards. This Class 600 high-pressure gate valve adopts professional RTJ (Ring Type Joint) flange sealing design, which is specially used for high-pressure, high-temperature and high-vibration industrial pipeline systems.

Different from ordinary RF flanged valves, the RTJ ring joint flange provides metal-to-metal sealing, featuring ultra-high pressure resistance, strong vibration resistance and zero leakage under extreme working conditions. The valve adopts standard OS&Y rising stem structure and hard alloy sealing surface, ensuring stable sealing performance under long-term high-pressure scouring. Suitable for oil and gas gathering and transportation, petrochemical high-pressure process pipelines, power station steam systems and other heavy-duty industrial scenarios, it is the preferred high-pressure safety isolation valve for international engineering projects.

Key Features & Advantages

1. Standard API 600 Certification
Fully designed, manufactured and tested in strict accordance with API 600 steel gate valve standards, supplemented by ASME B16.34, ASME B16.5 and API 598 specifications. All structural parameters, pressure resistance indexes and inspection standards comply with international petroleum, petrochemical and power industry requirements, perfectly matching global standard high-pressure pipeline systems and supporting overseas project bidding and acceptance.

2. Class 600 Ultra-High Pressure Resistance
Specially optimized for Class 600 ultra-high pressure working conditions, the valve adopts thickened integral wall structure and scientific pressure-bearing layout. It stably withstands long-term high-pressure medium impact and cyclic load operation, effectively avoiding valve body deformation, sealing failure and pipeline safety risks, fully adapting to heavy-duty high-pressure industrial pipeline scenarios.

3. Industrial-Grade RTJ Ring Type Joint Flange
Adopts ASME B16.5 standard RTJ metal ring joint flange, realizing reliable metal-to-metal hard sealing. Compared with conventional RF flanges, RTJ flange features stronger pressure resistance, excellent vibration resistance and high tightness, completely solving the common flange leakage problem of high-temperature and high-pressure pipelines, ensuring long-term stable sealing performance.

4. OS&Y Rising Stem Structure
Outside Screw and Yoke design isolates the thread from the flowing medium, preventing corrosion and dust accumulation. The exposed stem clearly displays the opening and closing status, ensuring flexible operation and long service life, suitable for frequent switching working conditions.

5. Stellite Hard Seal & API 598 Zero Leakage
The gate and valve seat are overlaid with high-performance Stellite 6/12 hard alloy and precisely ground. The hard seal pair features high hardness, outstanding high-temperature scouring resistance and wear resistance, achieving bidirectional bubble-tight zero leakage. All products pass strict API 598 hydrostatic and sealing tests, meeting the highest industrial sealing standards.

6. Stable & Durable Performance
Optimized internal flow channel reduces flow resistance and medium scouring. The integral thick-wall structure improves overall rigidity and anti-fatigue performance, ensuring long-term stable operation of high-pressure pipeline systems and reducing maintenance frequency and operating costs.

Technical Specifications

Applications

• Oil & Gas Industry: High-pressure gas transmission pipelines, crude oil main pipelines, wellhead high-pressure isolation systems

• Petrochemical & Refinery: High-pressure reaction pipelines, high-temperature process pipelines, heavy oil processing systems

• Power Generation: Thermal power plant high-pressure steam pipelines, boiler main water supply systems, high-pressure thermodynamic pipelines

• Energy Chemical Industry: High-pressure natural gas liquefaction systems, chemical high-pressure delivery pipelines

• Industrial High-Pressure Facilities: Heavy-duty industrial pipeline isolation, high-pressure fluid cut-off and safety control systems

Why Choose Our API 600 Class 600 RTJ Gate Valve?

✅ Authentic API 600 Standard — Fully compliant with international high-pressure gate valve standards, suitable for global high-end industrial and energy engineering projects.

✅ Class 600 High Pressure Resistance — Thick-wall heavy-duty body structure, stable operation under long-term high pressure and high temperature conditions.

✅High-Strength RTJ Flange Sealing — Metal-to-metal ring joint sealing, anti-vibration and anti-leakage, perfectly solving high-pressure flange leakage problems.

✅ Hard Seal Zero Leakage — Stellite alloy hard seal design, durable scouring resistance and bubble-tight shutoff performance.

✅ Industrial Heavy-Duty Reliability — Optimized for extreme high-pressure working conditions, low failure rate and long service life.

Order & Certification Information

MOQ: 1 Unit
Lead Time: 20-35 working days for standard sizes
Certificates: EN10204 3.1 Material Certificate, API 598 Test Report, ISO 9001 Quality Certificate
Packing: Anti-rust treatment + Reinforced export wooden case
Warranty: 18-month quality warranty and lifelong technical support

Contact Us for customized materials, sizes, driving modes and bulk quotation of API 600 Class 600 RTJ high pressure gate valves.

What Is a High Temperature High Pressure Gate Valve

A High Temperature High Pressure Gate Valve is a heavy duty isolation valve engineered for severe service environments involving elevated temperatures and demanding pressure conditions. The valve controls flow by moving a gate vertically to provide complete opening or secure shutoff. Built with heat resistant and high strength materials, it is designed to maintain structural stability and sealing integrity during continuous operation. These valves are widely applied in steam systems, power plants, refineries, and petrochemical processing facilities.

Why the High Temperature High Pressure Gate Valve Matters

The High Temperature High Pressure Gate Valve plays a critical role in ensuring safe and reliable operation of industrial piping systems. Extreme service conditions place significant stress on equipment, making dependable isolation essential. The valve helps protect boilers, turbines, pumps, and other process equipment by maintaining controlled flow conditions and preventing leakage. Its ability to withstand thermal expansion and pressure variations supports continuous operation and reduces the risk of unexpected shutdowns.

Common Product Types by High Temperature High Pressure Gate Valve

Different types of High Temperature High Pressure Gate Valves are available to satisfy various process requirements. Flexible wedge designs are commonly used because they accommodate temperature changes and provide effective sealing. Solid wedge valves are selected for stable operating environments. Pressure seal gate valves are preferred for severe applications, while welded bonnet designs enhance structural strength. Manual handwheel, bevel gear, electric actuator, and pneumatic actuator configurations are available for different control methods.

Key Advantages of High Temperature High Pressure Gate Valve

One of the major advantages of the High Temperature High Pressure Gate Valve is its ability to deliver reliable shutoff under harsh operating conditions. Strong body materials and wear resistant sealing surfaces contribute to long service life and reduced maintenance requirements. The full bore flow path minimizes flow resistance when the valve is fully open. Excellent resistance to thermal stress and pressure fluctuations ensures dependable performance in demanding industrial applications.

High Temperature High Pressure Gate Valve Machine Structure and Core Stations

Production begins with forging or casting key components such as the body, bonnet, gate, and stem using high strength alloys. Core manufacturing stations include heat treatment, precision machining, and hardfacing processes to enhance durability and sealing performance. Assembly stations are responsible for installing the gate, stem, packing components, bonnet, and operating mechanism. Final operations include pressure testing, leakage inspection, surface finishing, cleaning, marking, and packaging to ensure dimensional accuracy and reliable operation.
