API 600 Electric Integral Forged Bypass Power Station Gate Valve - High Temperature High Pressure

Product Overview

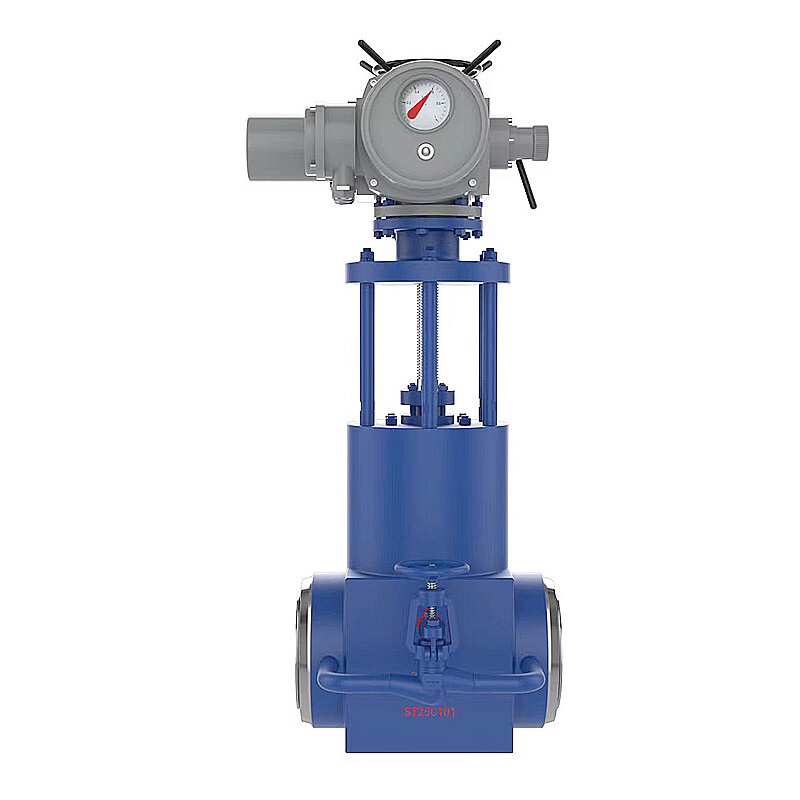

The API 600 Electric Integral Forged Bypass Power Station Gate Valve is a heavy-duty critical-service isolation valve specially engineered for high-temperature and high-pressure power station pipeline systems. Fully compliant with API 600, ASME B16.34, ASME B16.10 and power station industry standards, this electric gate valve adopts one-piece integral forging process, eliminating welding seams and structural weak points of traditional cast valves, delivering superior structural integrity and fatigue resistance under extreme HTHP (high temperature high pressure) working conditions.

Equipped with a professional electric actuator and customized integral bypass valve system, the valve realizes pressure balance before opening and closing, effectively reducing operating torque, protecting valve body and pipeline equipment, and avoiding pressure impact on supercritical steam pipelines. Adopting pressure self-sealing bonnet structure and Stellite hard alloy sealing surface, it achieves permanent zero leakage. Mainly applicable to thermal power plants, supercritical and subcritical generating units, high-pressure boiler main steam pipelines, reheat steam systems and petrochemical high-pressure process pipelines, it is the core safety isolation valve for modern large-scale power station projects.

Key Features & Advantages

1. Strict API 600 Power Station Standard Compliance
Designed, manufactured and tested in full accordance with API 600 specifications for high-pressure steel gate valves, meeting international power station and petrochemical critical service requirements. Complies with API 598 inspection standards and fire-safe design optional, fully adapting to global supercritical power plant project acceptance standards, with stable and reliable industrial-grade performance.

2. Integral Forged Body for Extreme HTHP Resistance
The entire valve body adopts integral free forging molding with high forging ratio, no welding joints, no casting pores and no structural defects. Compared with ordinary cast gate valves, forged valves feature higher density, stronger pressure resistance, better high-temperature creep resistance and anti-fatigue performance, stably operating for a long time under 1050°F high temperature and ultra-high pressure cyclic working conditions, effectively preventing valve body deformation and medium leakage.

3. Built-in Bypass Pressure Balance System
Unique integrated bypass valve design realizes front and rear pipeline pressure balance before valve opening. It greatly reduces electric starting torque, avoids hard start and mechanical wear of the electric actuator, and eliminates steam pressure shock to pipeline systems. The bypass structure optimizes valve operation stability, extends overall service life, and is an essential configuration for large-diameter high-pressure power station gate valves.

4.Electric Automatic Intelligent Control
Matched with high-quality industrial electric actuator, supporting remote PLC automatic control, 4-20mA signal regulation and local manual switching. With overload protection, stroke limit protection and fault alarm functions, the actuator features IP67 high protection grade, adapting to harsh high-temperature and dusty power station workshop environments, realizing unattended intelligent pipeline isolation control.

5.Pressure Seal Bonnet & Zero Leakage Performance
Adopts advanced pressure self-sealing bonnet structure — the higher the medium pressure, the tighter the sealing effect. The gate and seat are overlaid with Stellite 6 hard alloy, featuring high hardness, wear resistance, scouring resistance and high-temperature oxidation resistance. It achieves bubble-tight zero leakage, completely solving the problems of steam leakage and packing failure of traditional power station valves.

6.High-Grade Forged Alloy Steel Material
Optional high-performance forged steel materials including F11, F22, P91, WCB, covering multiple high-temperature working ranges. The forged alloy steel body maintains stable mechanical strength and sealing performance under long-term supercritical steam scouring, far exceeding the service life of ordinary cast steel valves.

7.Full Port & Low Flow Resistance Design
Full-bore straight-through flow channel ensures unobstructed medium flow, minimal pressure drop and no pipeline flow resistance. It effectively guarantees the flow efficiency of power station main steam and water supply pipelines, meeting the high-flow operating requirements of large generating units.

Technical Specifications

Applications

• Thermal Power Generation: Supercritical / Subcritical power plant main steam pipeline, reheat steam system, boiler feedwater high-pressure pipeline

• Coal-fired Power Plants: High-pressure boiler outlet pipeline, steam turbine auxiliary pipeline, power station thermodynamic system

• Petrochemical Industry: High-temperature and high-pressure reaction pipeline, refining unit steam delivery system

• Industrial High-pressure Systems: High-temperature steam circulation pipeline, high-pressure thermal fluid control system

• Energy & Utility Projects: Centralized heating high-pressure steam pipeline, large industrial boiler supporting pipeline

Why Choose Our API 600 Forged Bypass Power Station Gate Valve?

✅ API 600 Authoritative Standard — Fully compliant with international power station valve standards, suitable for global high-end power engineering bidding projects.

✅ Integral Forged Zero Defect Body — One-piece forging eliminates welding risks, ultra-high structural strength, adapting to extreme HTHP cyclic service.

✅ Bypass Pressure Balance Design — Effectively reduce operating torque, protect actuators and pipelines, reduce equipment failure rate and maintenance cost.

✅ Electric Intelligent Control — Support remote automatic operation, realize unmanned management of power station pipeline system.

✅ Pressure Seal Zero Leakage — High-temperature resistant hard seal configuration, stable sealing for long-term steam service, no leakage failure.

✅ Power Station Professional Customization — Customizable materials and pressure levels for supercritical, subcritical and ultra-high temperature working conditions.

Order & Certification Information

MOQ: 1 Unit
Lead Time: 25-40 working days
Certificates: EN10204 3.1 Material Certificate, API 598 Test Report, ISO 9001 Certificate, Forging Inspection Report
Packing: Anti-rust treatment + Reinforced export wooden case
Warranty: 18-month quality warranty, lifelong technical support

Contact Us for customized pressure classes, sizes, electric actuator parameters and complete power station valve system solutions.
