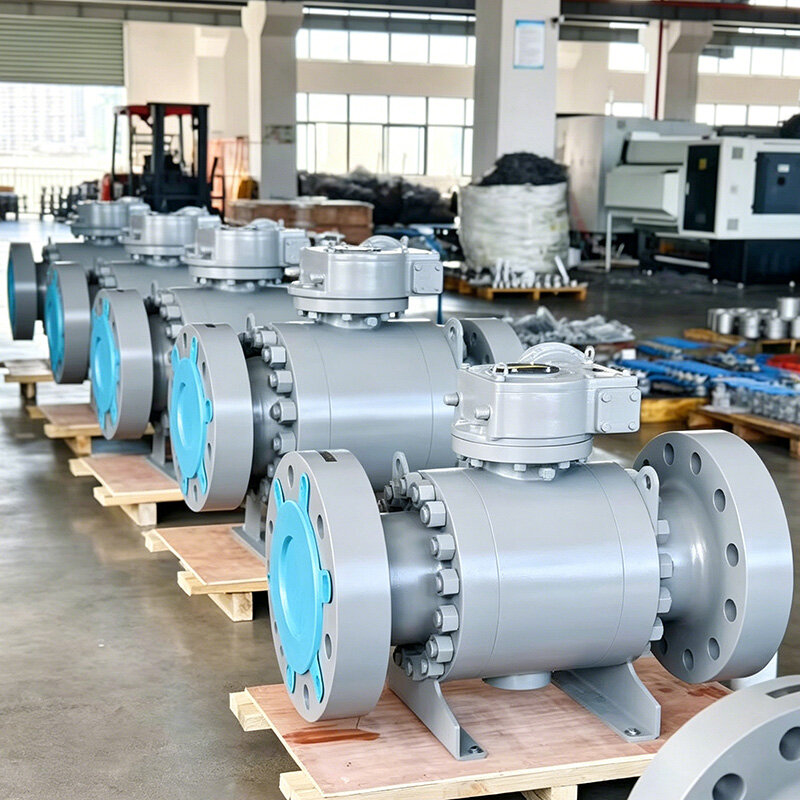

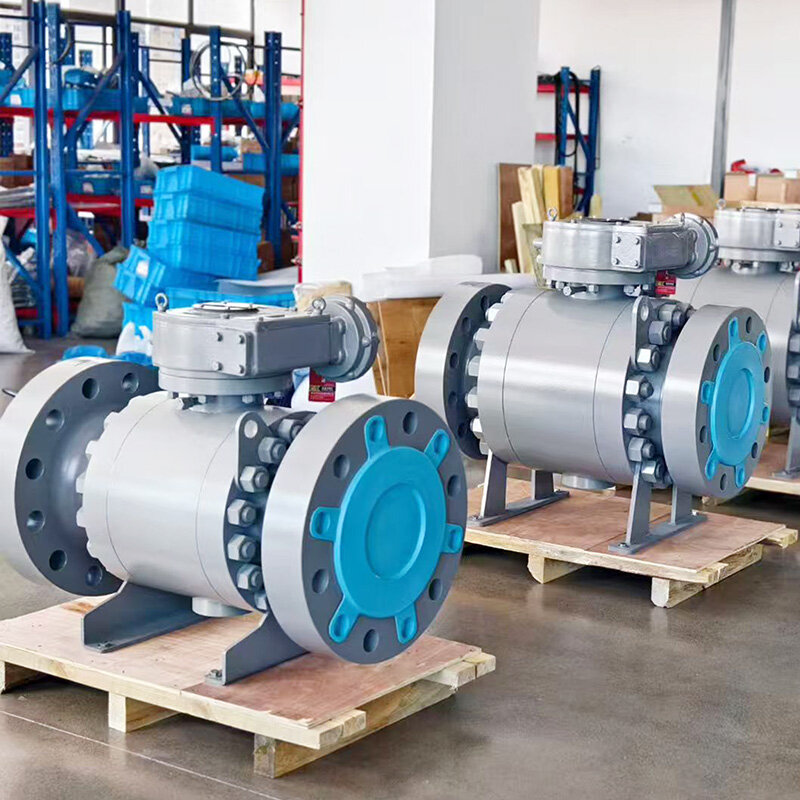

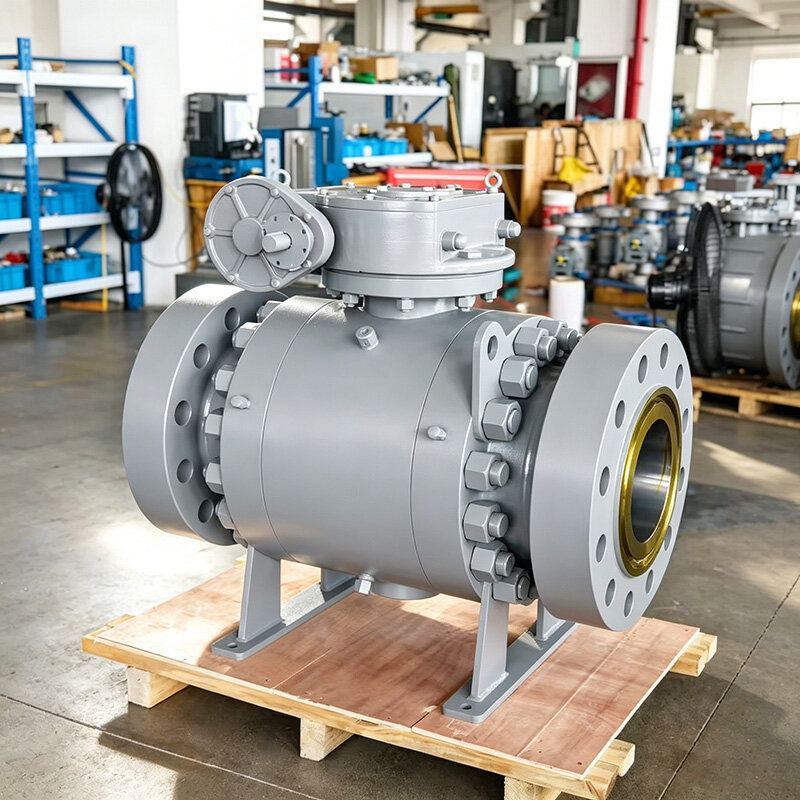

API6D A105 Forged High Pressure Flanged Ball Valve

Product Overview

The API6D A105 Forged High Pressure Flanged Ball Valve is a professional high-pressure pipeline shut-off and control valve fully compliant with American API6D pipeline valve standards. The whole valve body adopts integral hot forging technology with premium ASTM A105 carbon steel material, featuring compact internal grain structure, high pressure resistance and excellent mechanical stability, completely avoiding porosity, sand holes and deformation defects of cast valves under high-pressure working conditions. Designed with standard ANSI flanged connection, this valve supports ultra-wide pressure grades from Class150 to Class2500, perfectly adapting to high-pressure and high-temperature harsh pipeline environments.

This API6D forged ball valve integrates fire-safe structure, anti-static device and double sealing protection, realizing bidirectional zero leakage shutoff. All design dimensions, pressure temperature ratings and factory test procedures strictly follow API6D, ASME B16.34 and API598 specifications. It is widely recognized as core pipeline safety equipment for oil and gas transmission, petrochemical refining, thermal power and high-pressure industrial piping systems, serving global high-standard industrial engineering projects.

Core Product Features

1. Strict API6D Pipeline Valve Standard Compliance
Manufactured and inspected in full accordance with API6D pipeline ball valve core standards, cooperating with ASME B16.34 pressure temperature rating standard and API598 hydrostatic test specification. All products pass 100% factory shell pressure test and seat sealing test, meeting international pipeline engineering bidding, inspection and acceptance requirements, suitable for high-standard oil and gas pipeline systems.

2. Integral A105 Forged High-Strength Body
Adopts ASTM A105 carbon steel integral hot forging molding, with high tensile strength and impact resistance. The forged body maintains stable structural performance under -29℃~425℃ high temperature and ultra-high pressure working conditions, effectively preventing valve body cracking and medium leakage caused by pipeline pressure fluctuation, far more reliable than ordinary cast steel ball valves.

3. Multi-Grade High Pressure Resistance Design
Covers complete ANSI pressure grades including Class150, Class300, Class600, Class900, Class1500 and Class2500. Optimized thick-wall forging structure and finite element pressure analysis ensure long-term stable operation of the valve under ultra-high pressure pipeline impact, solving the failure problem of ordinary valves in high-pressure harsh working conditions.

4. Bidirectional Zero Leakage Sealing Performance
Equipped with high-performance hard and soft composite sealing pairs, optional PTFE, RPTFE and metal hard seal materials. It achieves ANSI Class VI zero leakage for low-pressure clean medium and stable sealing for high-temperature and high-pressure abrasive medium. Bidirectional sealing structure meets strict pipeline shut-off safety standards.

5. Standard ANSI Flange Connection
Adopts ANSI B16.5 standard raised face or RTJ flange end, with accurate flange hole position and uniform specification. It can be perfectly matched with American standard high-pressure pipeline flanges, featuring firm bolt connection, strong vibration resistance and no loosening during long-term high-pressure pipeline operation.

6. Professional Safety Protection Configuration
Built-in anti-static device conducts static electricity generated by medium scouring to avoid flammable and explosive safety hazards. Fire-safe structure ensures reliable sealing in case of pipeline fire, preventing medium leakage and fire spread. Anti-blowout valve stem design effectively avoids stem popping out under ultra-high pressure.

7. Diversified Operation & Wide Adaptability
Supports manual handwheel, worm gear, pneumatic and electric driving modes to meet automatic and manual control demands of different pipeline stations. Suitable for high-pressure oil, natural gas, steam and chemical medium pipelines, with strong industrial versatility.

Technical Specifications

Installation, Operation & Maintenance Notes

1. Standard Operation Guidelines
This API6D high-pressure forged ball valve is specially used for pipeline full open/full closed isolation and cut-off, long-term partial throttling operation is prohibited to avoid medium scouring and seat damage. Strictly operate within the rated ANSI pressure and temperature range to prevent A105 material fatigue deformation and sealing failure under overload working conditions.

2. High-Pressure Flange Installation Requirements
Install the valve on the straight pipe section of the high-pressure pipeline, keep away from turbulence areas such as elbows and pump outlets. Align the valve flange with the pipeline ANSI standard flange, install high-pressure resistant sealing gaskets, and tighten bolts diagonally and evenly to ensure uniform stress and prevent high-pressure leakage. Clean pipeline welding slag and hard impurities before installation to protect the sealing pair.

3. Regular Sealing Inspection & Maintenance
Regularly check the sealing surface wear and aging degree. For long-term operating high-pressure valves, conduct regular pressure holding tests. Replace aging seat and packing accessories in time after complete pipeline depressurization and medium drainage to ensure zero leakage performance.

4. Transmission & Safety Structure Maintenance
Regularly lubricate the valve stem and transmission parts to ensure flexible switching. Check the anti-static and fire-safe structure regularly to keep the safety protection system effective. Avoid violent impact and forced switching during operation to prevent structural damage to forged body and internal parts.

Wide Application Scenarios

• Oil & Gas Transmission Pipeline: Long-distance natural gas and crude oil trunk pipelines, high-pressure gas station pipeline isolation and safety cut-off valves

• Petrochemical Refinery Industry: High-pressure process pipelines, refined oil delivery systems, chemical medium reaction and conveying piping equipment

• Thermal Power & Energy Plants: Boiler high-pressure steam pipelines, circulating water systems, power station auxiliary high-pressure pipeline control valves

• Industrial High-Pressure System: Compressed air, high-pressure water and industrial fluid pipeline shut-off and regulating equipment

• Energy Chemical Engineering Projects: LNG, LPG and other flammable and explosive medium pipeline safety isolation valves

Product Competitive Advantages

✅ Genuine API6D Pipeline Valve Standard — Fully compliant with international pipeline valve specifications, supporting project certification and third-party inspection.

✅ High-Strength A105 Forged Body — Integral forging process, high pressure and temperature resistance, durable for harsh high-pressure working conditions.

✅ Full Range High-Pressure Grades — Complete Class150-Class2500 pressure options to meet various ultra-high-pressure pipeline demands.

✅ Multi Safety Protection Design — Anti-static, fire-safe and anti-blowout stem structure, ensuring safe operation for flammable and explosive media.

✅ ANSI Standard Flange Matching — Perfectly compatible with global American standard high-pressure pipeline systems, easy installation and stable connection.

✅ Zero Leakage & Long Service Life — High-precision sealing pair + anti-corrosion treatment, reducing later maintenance cost and pipeline failure rate.

Order & Certification Information

MOQ: 1 Unit
Production Lead Time: 12–22 working days for standard specifications, customized high-pressure grades negotiable
Supporting Documents: EN10204 3.1 A105 Material Certificate, API6D Test Report, API598 Inspection Report, ISO9001 Quality Certificate
Export Packaging: Internal anti-rust protection + Plastic wrap + Reinforced fumigation-free wooden export case
Warranty Service: 12-month quality warranty + lifelong professional after-sales technical support

Contact Us for customized special pressure grades, sealing materials and bulk preferential prices of API6D A105 Forged High Pressure Flanged Ball Valves.

What Is an API Flanged Ball Valve

An API Flanged Ball Valve is a quarter turn shutoff valve designed for reliable isolation of liquids, gases, and process media in industrial pipelines. It features a spherical ball with a central bore that rotates to open or close the flow passage. Flanged ends provide strong and convenient connections to piping systems. Manufactured in accordance with API standards, the valve offers dependable sealing performance and is widely used in oil and gas, petrochemical, chemical, and power generation applications.

Why the API Flanged Ball Valve Matters

This valve is important because it provides tight shutoff and efficient flow characteristics under demanding service conditions. API standards help ensure reliable construction, material quality, and operational safety. The flanged design allows easy installation and maintenance, while the quarter turn operation enables quick response during process control. Its ability to handle different media and operating environments makes it a critical component in modern industrial systems.

Common Product Types by API Flanged Ball Valve

Common product types include floating ball valves, trunnion mounted ball valves, top entry ball valves, and side entry ball valves. Full port designs are preferred when maximum flow capacity is required, while reduced port versions are selected for specific process needs. The valves can be manually operated or equipped with electric, pneumatic, or gear actuators. Different seat materials and body configurations are available for corrosive and high temperature services.

Key Advantages of API Flanged Ball Valve

The valve offers excellent sealing capability, low pressure loss, and fast operation. The simple quarter turn mechanism reduces operating effort and improves efficiency. Flanged ends provide secure connections and facilitate inspection or replacement. API compliant construction enhances durability and service reliability. With proper material selection, the valve can withstand severe operating conditions while maintaining long service life and reduced maintenance requirements.

API Flanged Ball Valve Machine Structure and Core Stations

Manufacturing begins with casting or forging the body, ball, stem, and flange components from selected materials. Core stations include heat treatment, precision machining of ball surfaces, seat cavities, flange faces, and stem connections. Assembly stations install the ball, seats, seals, stem, and operating mechanism. Final stages include pressure testing, torque verification, surface treatment, cleaning, marking, and packaging to ensure dimensional accuracy and dependable sealing performance.
