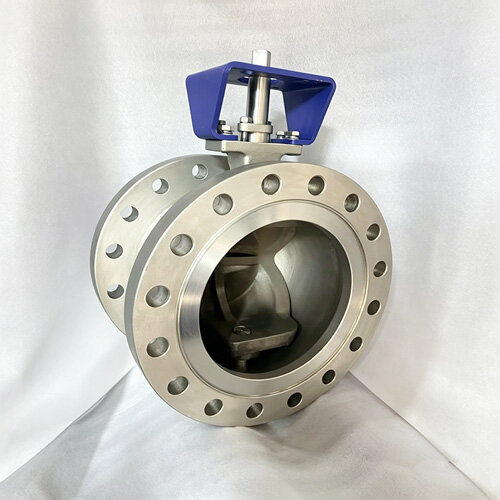

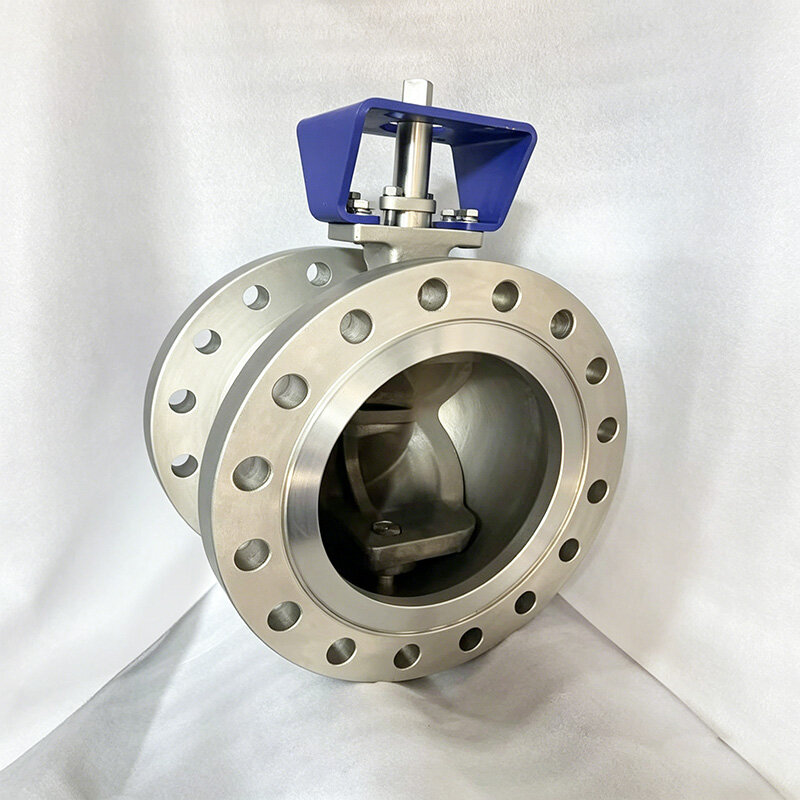

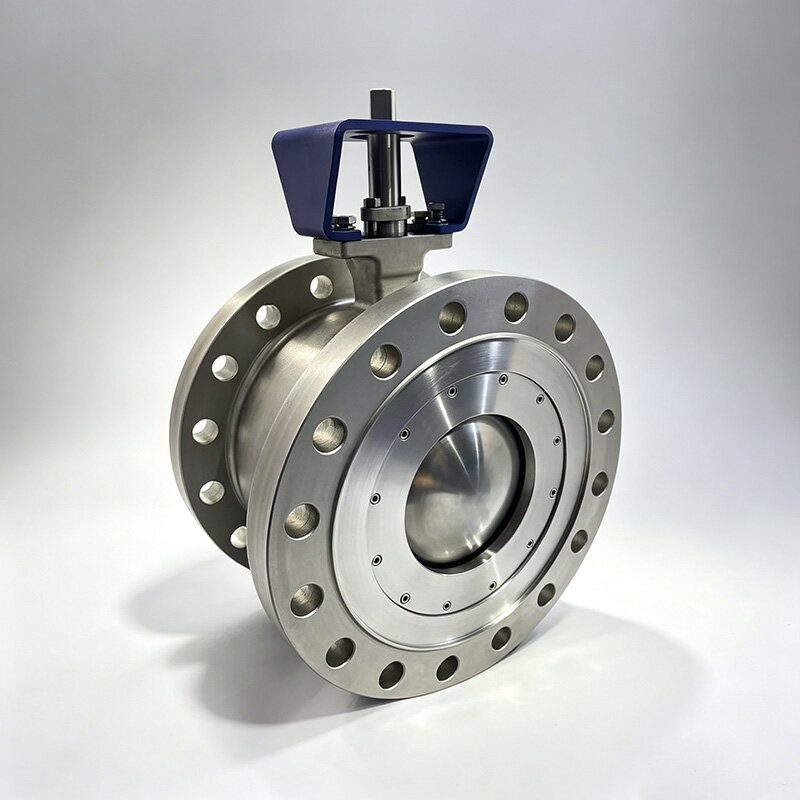

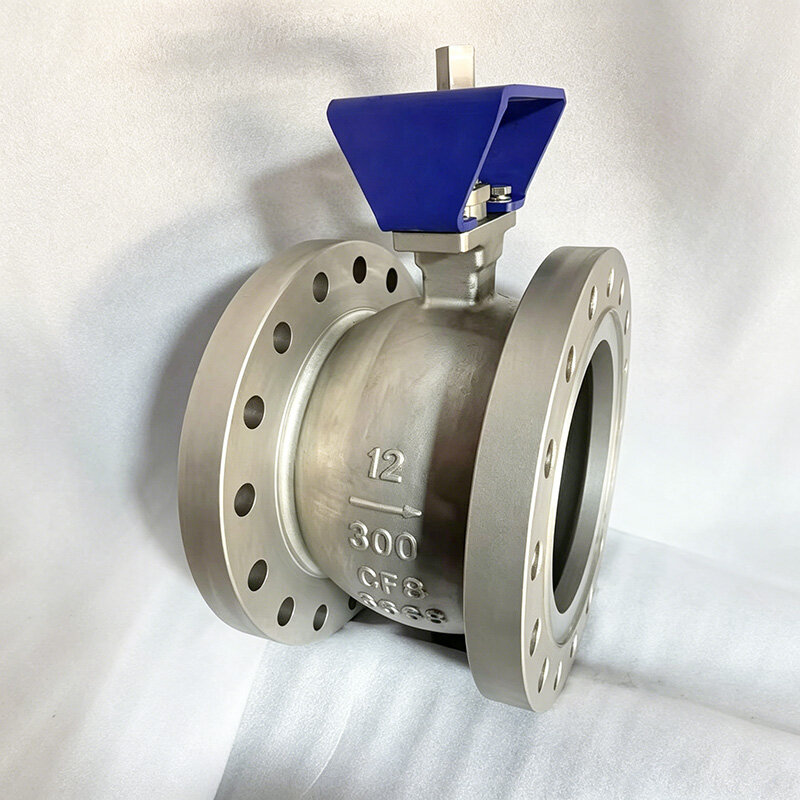

API608 Class300 CF8 Stainless Steel Flanged V-Port Ball Valve

Product Overview

The API608 Class300 CF8 Stainless Steel Flanged V-Port Ball Valve is a high-performance modulating and shutoff dual-purpose industrial valve manufactured in strict accordance with American API608 industrial ball valve standards. The entire valve body is precision cast from premium ASTM A351 CF8 stainless steel, featuring excellent acid and alkali corrosion resistance, high structural density and stable mechanical performance, solving the rusting and medium erosion problems of carbon steel valves in corrosive working environments. Adopting standard ANSI Class300 high-pressure design and RF flanged connection, all dimensions and pressure grades comply with ASME B16.5 and ASME B16.10 specifications.

Different from ordinary floating ball valves, this API608 V-port ball valve is equipped with a unique V-shaped notch ball core, forming a sharp shear edge with the hard seat. It can smoothly cut fiber impurities, granular solids and viscous slurry during 90-degree quarter-turn operation, effectively preventing pipeline blockage. Supporting long-term throttling regulation with equal percentage flow characteristics, it realizes high-precision pipeline flow adjustment. All finished products pass API598 hydrostatic and sealing tests, widely applicable for chemical, petrochemical, papermaking, pharmaceutical and corrosive medium industrial pipeline systems.

Core Product Features

1. Strict API608 American Standard Compliance
Designed, manufactured and inspected fully in accordance with API608 metal ball valve specifications, matching ASME B16.5 flange dimension, ASME B16.10 face-to-face length and API598 pressure testing standards. Standard Class300 high-pressure grade meets American industrial pipeline design requirements, fully passing third-party inspection and international engineering project acceptance.

2. Premium CF8 Stainless Steel Anti-Corrosion Body
The valve body adopts integral precision casting of ASTM A351 CF8 stainless steel, with dense internal structure without casting defects. It features outstanding resistance to oxidation, acid, alkali and salt corrosion, adapting to various harsh corrosive medium working conditions. The high-strength stainless steel structure maintains stable performance under long-term high-pressure operation, far superior to ordinary cast steel valves in durability.

3. Unique V-Port Shearing Anti-Blockage Structure
The V-notch ball core cooperates with the precision hard sealing seat to form a sharp shear cutting surface. During opening and closing rotation, it can quickly shear and strip fiber, pulp, sludge and tiny solid particles in the medium, avoiding medium winding and pipeline clogging. It perfectly solves the throttling failure problem of ordinary ball valves for special mixed media.

4. Class300 High-Pressure Resistant Design
Optimized thick-wall stainless steel structure adapts to ANSI Class300 high-pressure working conditions. Through finite element pressure analysis, the valve body maintains no deformation or leakage under long-term pipeline pressure impact, ensuring stable and safe operation of high-pressure industrial pipelines.

5. Accurate Equal-Percentage Flow Regulation
This V-port ball valve has inherent equal-percentage flow characteristics with a high adjustable ratio up to 300:1. It realizes stepless precise adjustment of pipeline flow, pressure and liquid level, with sensitive and stable regulation performance, suitable for automatic process control systems that require high-precision flow control.

6. Standard ANSI Flange Connection
Adopts ASME B16.5 Class300 standard raised face double flange end, with accurate hole spacing and uniform specifications. It can be perfectly matched with American standard high-pressure pipeline flanges, featuring firm bolt connection, strong vibration resistance and no loose leakage during long-term continuous operation.

7. Wear-Resistant Hard Seal & Zero Leakage Performance
The sealing pair adopts stainless steel + Stellite hard alloy overlay welding treatment, with high surface hardness and strong scouring resistance. It can withstand long-term impact of granular and viscous media, achieving ANSI Class VI zero leakage tight shutoff while ensuring stable throttling regulation performance.

Technical Specifications

Installation, Operation & Maintenance Notes

1. Standard Operation Guidelines
This API608 Class300 V-port ball valve supports both pipeline full open/closed isolation and long-term throttling flow regulation, specially designed for slurry and fiber mixed media. Overload pressure and temperature operation is strictly prohibited to avoid CF8 material fatigue and sealing failure. Avoid violent switching to prevent impact damage to the hard sealing pair.

2. ANSI Standard Flange Installation
Install the valve on the straight pipe section of the high-pressure pipeline, keep away from turbulent flow areas such as elbows and pump outlets. Align the valve Class300 flange with the pipeline ANSI standard flange, install high-pressure resistant sealing gaskets, and tighten bolts diagonally and evenly to ensure uniform stress and prevent interface leakage. Clean pipeline welding slag and hard impurities before installation to protect the shear sealing surface.

3. Daily Shearing Structure Maintenance
For long-term delivery of slurry and fiber media, regularly clean residual dirt inside the valve cavity to ensure smooth shearing and throttling. Check the wear degree of the V-port ball core and hard seat regularly, and replace damaged sealing parts in time after full pipeline depressurization and medium drainage.

4. Regular Inspection & Protection
Regularly check the valve body and flange connection status to ensure no leakage under Class300 high-pressure working conditions. The CF8 stainless steel body does not require frequent anti-rust treatment, but regular surface cleaning is needed to avoid medium scaling affecting valve operation flexibility and sealing performance.

Wide Application Scenarios

• Petrochemical & Fine Chemical Industry: Corrosive chemical medium, crude oil and chemical solvent high-pressure conveying pipeline control valves

• Pulp & Paper Making Industry: Paper pulp, fiber wastewater and suspended medium anti-blockage flow regulation pipeline systems

• Pharmaceutical & Environmental Protection: Pharmaceutical liquid, industrial wastewater and corrosive sewage pipeline shutoff and regulating equipment

• Energy & Power Industry: Power plant chemical dosing system, circulating slurry and process medium pipeline control valves

• General Industrial Corrosive Pipeline: Acid-base liquid, salt water and other corrosive medium automatic flow control piping systems

Product Competitive Advantages

✅ Genuine API608 Standard Compliance — Fully compliant with American API608 valve specifications, matching ANSI Class300 pipeline systems, supporting international project acceptance.

✅ CF8 Stainless Steel Anti-Corrosion Body — Premium stainless steel material, excellent acid and alkali resistance, durable for harsh corrosive working conditions.

✅ V-Port Shearing Anti-Blockage Design — Unique shear structure solves fiber and slurry medium blockage problems, realizing stable long-term throttling regulation.

✅ Class300 High-Pressure Resistance — Optimized high-pressure structure, stable performance under long-term high-pressure pipeline operation.

✅ High-Precision Flow Regulation — Equal-percentage flow characteristic, high adjustable ratio, accurate and sensitive process flow control.

✅ Hard Seal Zero Leakage Performance — Wear-resistant alloy sealing pair, anti-scouring and long service life, dual-purpose for shutoff and modulation.

Order & Certification Information

MOQ: 1 Unit
Production Lead Time: 12–20 working days for standard Class300 CF8 specifications
Supporting Documents: EN10204 3.1 CF8 Material Certificate, API608 Test Report, API598 Inspection Report, ISO9001 Quality Certificate
Export Packaging: Internal anti-rust protection + Plastic wrap + Reinforced fumigation-free wooden export case
Warranty Service: 12-month quality warranty + lifelong professional after-sales technical support

Contact Us for customized operation modes, special working condition configurations and bulk preferential prices of API608 Class300 CF8 Stainless Steel Flanged V-Port Ball Valves.

What Is an API Flanged Ball Valve

An API Flanged Ball Valve is a quarter turn valve designed to provide reliable isolation and flow control in industrial pipeline systems. It consists of a spherical ball with a central opening that rotates to allow or stop the passage of media. The flanged end design ensures secure connections and simplifies installation and maintenance. Manufactured according to API standards, this valve is widely used in oil and gas, petrochemical, chemical processing, and power generation applications where dependable sealing is required.

Why the API Flanged Ball Valve Matters

An API Flanged Ball Valve is important because it offers dependable shutoff and efficient operation in demanding environments. API standards help ensure reliable construction, material integrity, and sealing performance. The valve provides fast quarter turn operation, allowing quick response during process control. Flanged connections make inspection and replacement more convenient, while the robust structure helps maintain safe and stable operation in critical industrial systems handling various fluids and gases.

Common Product Types by API Flanged Ball Valve

Common product types include floating ball valves, trunnion mounted ball valves, top entry ball valves, and side entry ball valves. Full port versions are widely used where unrestricted flow is required, while reduced port designs are selected for specialized applications. Manual, pneumatic, electric, and gear operated configurations are available. Different seat materials, body constructions, and sealing arrangements can be selected to accommodate corrosive media, elevated temperatures, and severe operating conditions.

Key Advantages of API Flanged Ball Valve

The valve offers excellent sealing performance, low pressure loss, and rapid operation. Its quarter turn design reduces operating effort and improves system efficiency. Flanged ends provide strong and reliable connections while simplifying maintenance procedures. API compliant construction enhances durability and long term reliability. The simple internal structure contributes to reduced maintenance requirements, making the valve suitable for a wide range of industrial applications and challenging service environments.

API Flanged Ball Valve Machine Structure and Core Stations

Manufacturing begins with casting or forging the body, ball, stem, and flange components from selected materials. Core stations include heat treatment, CNC machining of ball surfaces, seat pockets, stem interfaces, and flange faces to ensure precision. Assembly stations install the ball, seats, seals, stem, and operating mechanism. Final stages involve pressure testing, torque inspection, surface treatment, cleaning, marking, and packaging to ensure reliable sealing, dimensional accuracy, and consistent product quality.
