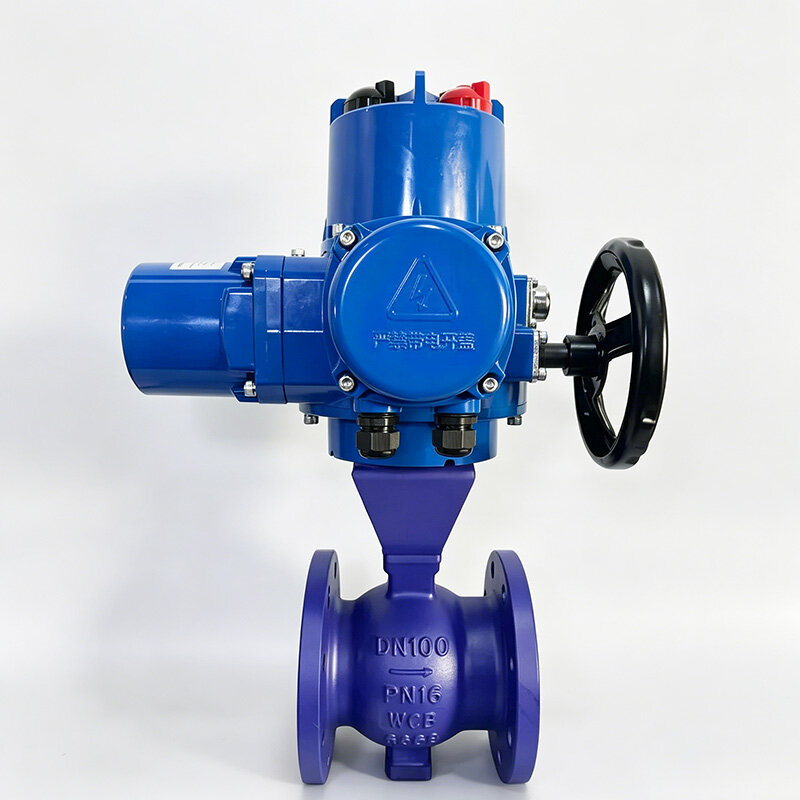

GOST Electric Cast Steel Flanged V-Port Ball Valve

Product Overview

The GOST Electric Cast Steel Flanged V-Port Ball Valve is a professional automatic regulating and shut-off integrated industrial valve tailored for Russian and CIS regional pipeline projects. Manufactured in strict accordance with GOST 33259, GOST 15150 and other Russian national industrial standards, this valve adopts premium WCB cast steel integral precision casting body with dense internal structure, no sand holes or porosity, ensuring stable structural performance under complex working conditions. Different from ordinary spherical ball valves, it features a unique V-shaped notch ball core structure, which forms a sharp shear angle with the valve seat during operation.

Matched with a full set of electric actuator, the valve supports remote automatic control and 4-20mA analog signal precise flow regulation, realizing equal percentage flow characteristic adjustment. It can effectively shear and cut off fiber, slurry, granular and high-viscosity media to prevent pipeline blockage, solving the common throttling and clogging pain points of traditional valves. All flange dimensions, pressure grades and factory test standards fully comply with GOST specifications, perfectly matching standard flanged pipeline systems in Russia, Kazakhstan, Belarus and other CIS countries, widely used in petrochemical, papermaking, thermal power and municipal industrial pipeline projects.

Core Product Features

1. Full Russian GOST Standard Compliance
This V-port ball valve is designed, produced and inspected strictly following Russian GOST industrial standards, including GOST 33259 valve general specification and GOST 15150 climate adaptation standard. The flange size, structural dimension and pressure test procedures fully match local CIS standard pipeline requirements, supporting local project acceptance and EAC certification, completely adaptable to Russian northern low-temperature and harsh industrial working environments.

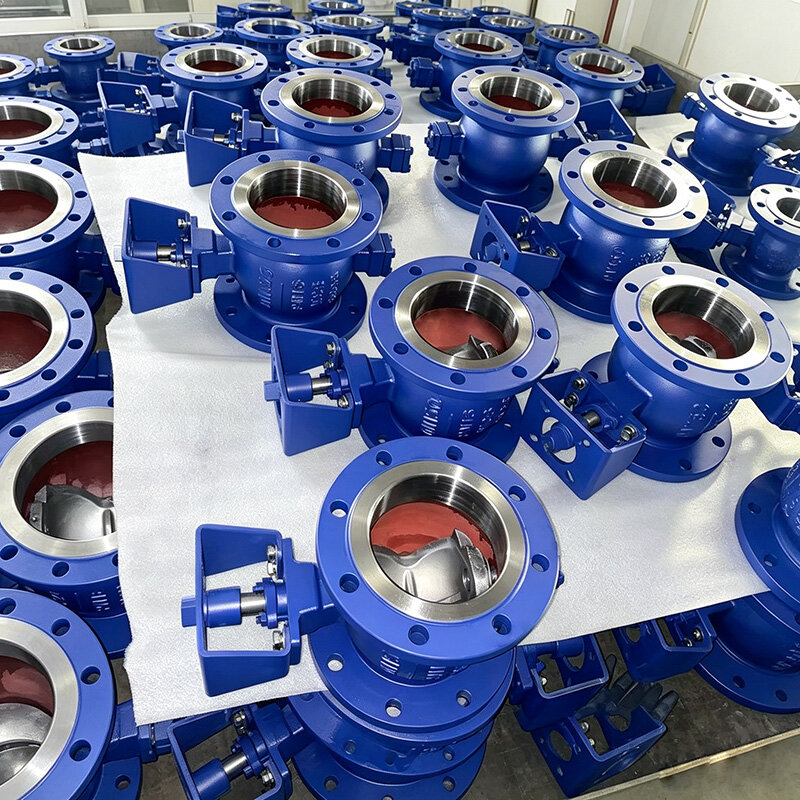

2. Premium WCB Cast Steel Integrated Body
The valve body adopts standard WCB carbon steel precision casting technology, with high overall rigidity, pressure resistance and temperature resistance. It operates stably in the temperature range of -40℃ to 425℃, resisting pipeline medium impact and structural deformation. The thickened cast steel structure effectively avoids cracking and leakage problems of ordinary thin-wall valves, meeting the heavy-duty working demands of large-flow industrial pipelines.

3. Unique V-Port Shearing Anti-Blockage Design
The V-shaped ball core cooperates with the hard sealing seat to form a sharp shear edge. During 90-degree opening and closing rotation, it can quickly cut off fiber impurities, pulp, coal slurry and viscous dirt in the medium, avoiding medium winding and pipeline blockage. It perfectly solves the defect that ordinary ball valves are easy to be blocked when transporting special media.

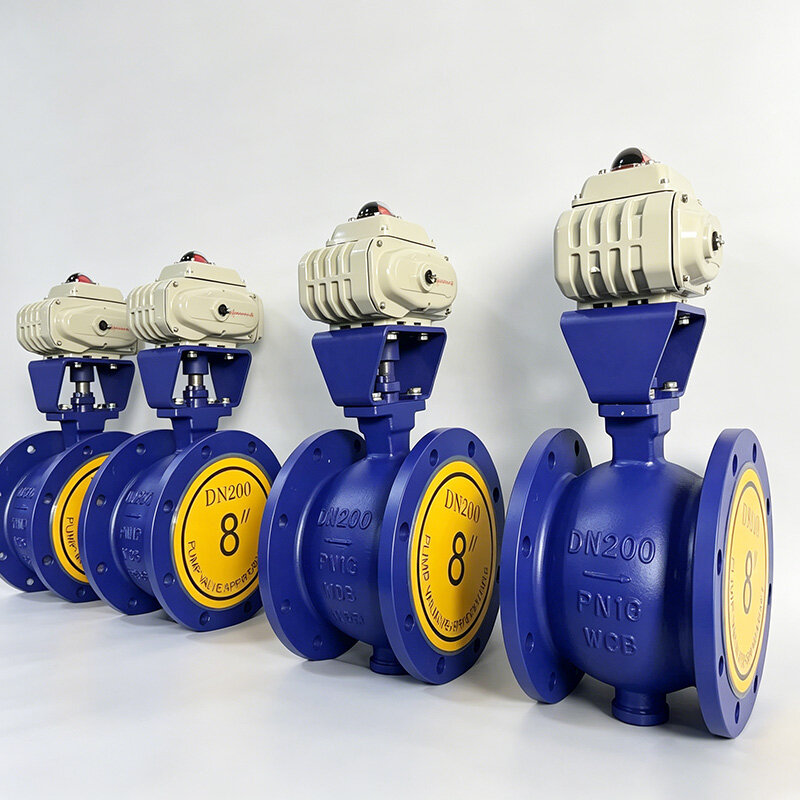

4. Electric Automatic Precision Regulation
Equipped with high-quality electric actuator, supporting switch-type and regulating-type dual functions. It receives 4-20mA standard analog signal to realize stepless precise adjustment of pipeline flow, pressure and liquid level. The equal percentage flow characteristic ensures stable and sensitive regulation, suitable for automatic control system of industrial pipeline process parameters.

5. GOST Standard Flange Connection Structure
Adopts Russian standard GOST raised face flange end, with accurate hole position and standard specification. It can be seamlessly connected with local CIS standard pipeline flanges, with uniform bolt stress, firm connection and strong vibration resistance. It will not loose or leak during long-term continuous operation of industrial pipelines.

6. Wear-Resistant Hard Seal & Zero Leakage Performance
The sealing pair adopts hard alloy overlay welding treatment, with high hardness and strong wear resistance. It can resist long-term scouring of granular and slurry media, maintaining stable sealing performance. It realizes full closed zero leakage shutoff and precise throttling regulation, dual-purpose for cut-off and modulation.

7. Extreme Climate Adaptability
Compliant with GOST UHL1 low-temperature standard, adapting to ultra-low temperature working environment in northern Russia. The internal parts are treated with anti-corrosion and anti-freezing process, which can operate stably in humid, low-temperature and high-dust industrial scenes, with strong environmental adaptability.

Technical Specifications

Installation, Operation & Maintenance Notes

1. Standard Operation Guidelines
This GOST electric V-port ball valve is dual-purpose for pipeline cut-off and precise flow regulation. It is allowed to work in partial opening throttling state for a long time for viscous and slurry media, but overload pressure and temperature operation is prohibited. Avoid frequent instantaneous switching to prevent impact damage to the hard sealing pair.

2. GOST Standard Flange Installation
Install the valve on the straight pipe section of the pipeline, keep away from turbulent flow areas such as elbows and pump outlets. Align the valve flange with the pipeline GOST standard flange, install high-quality sealing gaskets, and tighten bolts diagonally and evenly to ensure uniform stress and no interface leakage. Clean welding slag and hard impurities in the pipeline before installation.

3. Electric Actuator Daily Maintenance
Regularly check the electric actuator circuit and signal receiving sensitivity to ensure stable remote control response. Keep the electrical box dry and dustproof to avoid short circuit and signal failure caused by humid environment. Regularly lubricate the internal transmission gears to ensure flexible valve switching.

4. Sealing & Shearing Structure Inspection
Regularly check the wear of the V-port ball core and hard sealing seat. For long-term slurry medium transportation, clean residual dirt inside the valve regularly to ensure smooth shearing and throttling. Replace aging sealing parts in time after pipeline full depressurization and medium drainage to maintain zero leakage performance.

Wide Application Scenarios

• CIS Petrochemical Industry: Chemical slurry, viscous crude oil, fiber medium conveying pipeline regulation and cut-off equipment

• Pulp & Paper Making Projects: Paper pulp and fiber wastewater pipeline anti-blockage flow control valves

• Thermal Power Plant System: Power plant circulating water, coal slurry conveying and auxiliary process pipeline regulating valves

• Russian Municipal Industrial Projects: Urban industrial wastewater, sludge and high-viscosity medium pipeline control system

• General Industrial Automation Pipeline: Automatic flow regulation and safety isolation of complex medium pipelines in factory production lines

Product Competitive Advantages

✅ Full GOST Russian Standard Compliance — Strictly manufactured and tested per GOST specifications, compatible with all CIS standard pipelines, supporting local project acceptance.

✅ WCB Cast Steel Heavy-Duty Body — High strength and temperature resistance, durable for harsh low-temperature and high-flow working conditions.

✅ V-Port Shearing Anti-Blockage Design — Unique shear structure solves slurry and fiber medium blockage problems, realizing stable throttling regulation.

✅ Precision Electric Automatic Regulation — 4-20mA signal stepless adjustment, high control accuracy, suitable for industrial automatic control systems.

✅ Hard Seal Wear-Resistant Zero Leakage — Alloy hard seal pair, anti-scouring and long service life, realizing shutoff and regulation dual functions.

✅ Low-Temperature Climate Adaptation — Compliant with GOST low-temperature standard, suitable for northern Russian extreme climate working environments.

Order & Certification Information

MOQ: 1 Unit
Production Lead Time: 12–22 working days for standard GOST specifications
Supporting Documents: EN10204 3.1 Material Certificate, GOST Standard Test Report, ISO9001 Quality Certificate, EAC Certification
Export Packaging: Anti-rust protection + Plastic wrap + Reinforced fumigation-free wooden export case
Warranty Service: 12-month quality warranty + lifelong professional after-sales technical support

Contact Us for customized special sizes, pressure grades and bulk preferential prices of GOST Electric Cast Steel Flanged V-Port Ball Valves.

What Is a Large Bore Flanged Ball Valve

A Large Bore Flanged Ball Valve is a quarter turn isolation valve designed for high flow capacity applications in industrial piping systems. It uses a precision machined ball with a through bore to control the passage of liquids, gases, and other process media. The large bore configuration minimizes flow restriction and improves efficiency. Flanged ends provide secure and convenient pipeline connections, making the valve suitable for oil and gas, chemical processing, power generation, and water treatment services.

Why the Large Bore Flanged Ball Valve Matters

This valve is important because it provides reliable shutoff and efficient fluid transmission in large diameter pipelines. The large bore design helps reduce pressure loss and maintain smooth flow characteristics. Flanged connections simplify installation, inspection, and maintenance procedures. Its robust construction and dependable sealing performance help protect equipment and maintain stable operating conditions in demanding industrial environments where safety and reliability are essential.

Common Product Types by Large Bore Flanged Ball Valve

Common product types include floating ball valves, trunnion mounted ball valves, top entry ball valves, and side entry ball valves. Full port designs are widely selected to maximize flow efficiency, while reduced port versions are available for specific process requirements. Manual, pneumatic, electric, and gear operated configurations can be provided. Different body materials and seat designs are available for corrosive media, elevated temperatures, and severe service conditions.

Key Advantages of Large Bore Flanged Ball Valve

The valve offers excellent sealing capability, low flow resistance, and quick quarter turn operation. The large bore structure allows efficient media transfer with minimal turbulence. Flanged ends provide strong and reliable connections and facilitate maintenance activities. The simple internal design contributes to long service life and reduced maintenance requirements. With suitable materials and sealing components, the valve can perform effectively in demanding industrial applications.

Large Bore Flanged Ball Valve Machine Structure and Core Stations

Manufacturing begins with casting or forging the body, ball, stem, and flange components from selected materials. Core stations include heat treatment and precision CNC machining of the ball surface, seat pockets, stem interfaces, and flange faces. Assembly stations install the ball, seats, seals, stem, and operating mechanism. Final operations include pressure testing, torque inspection, surface treatment, cleaning, marking, and packaging to ensure dimensional accuracy and dependable sealing performance.
