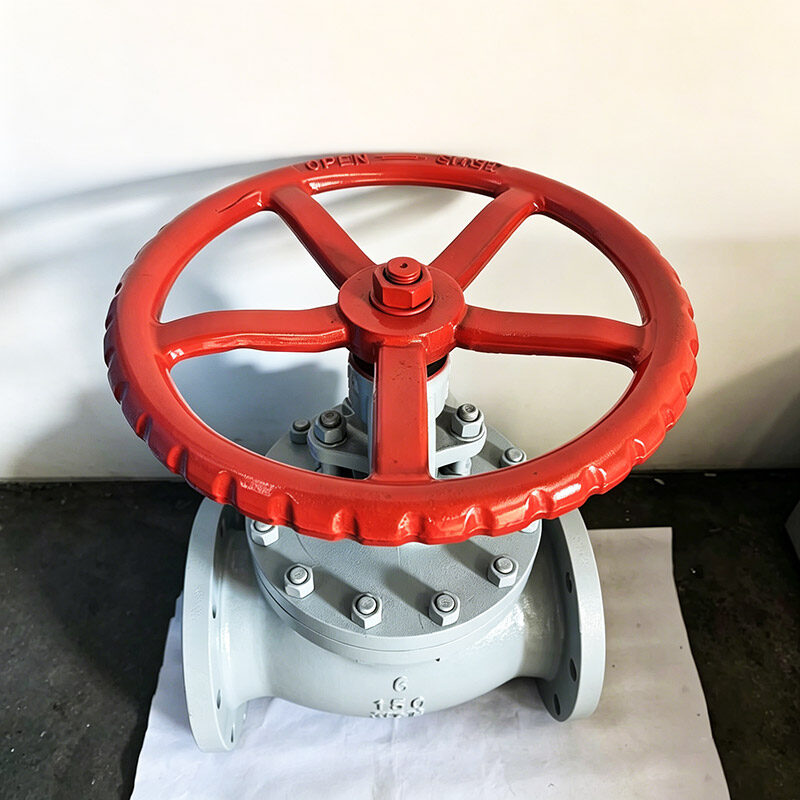

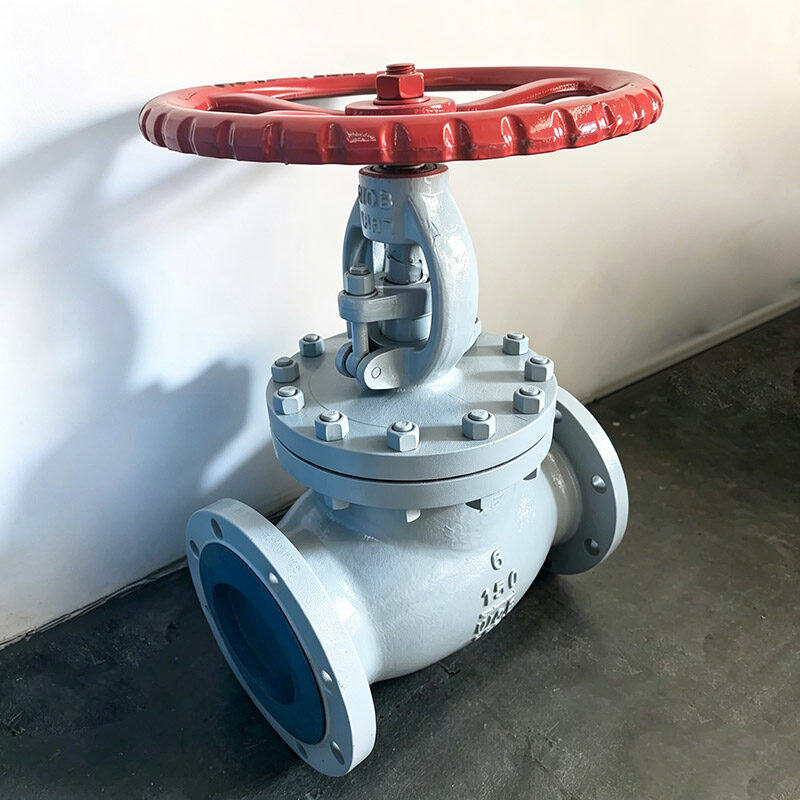

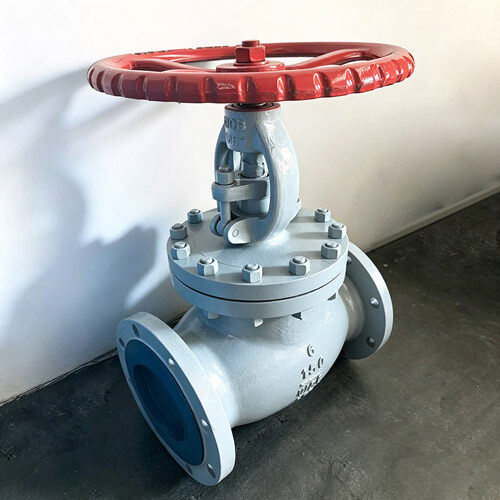

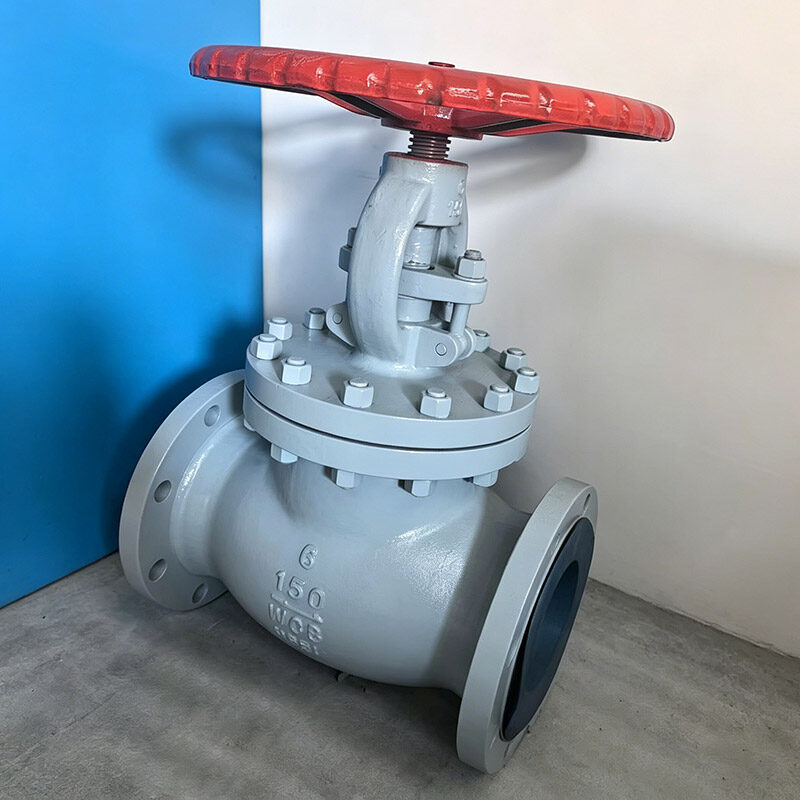

Cast Steel Flanged API Globe Valve - Industrial High Pressure Flow Control Valve

Product Overview

The Cast Steel Flanged API Globe Valve is a versatile industrial flow control valve engineered for high-pressure, general-service applications, adhering to strict API (American Petroleum Institute) standards for reliability and performance. Constructed with premium cast steel (WCB/WCC/A216) for exceptional strength and durability, this valve features flanged end connections for secure installation and a precision globe valve design for accurate flow regulation and tight shutoff. Compliant with API 600, API 598, and ASME B16.34 standards, it is widely used in oil & gas, petrochemical, power generation, and industrial piping systems, handling media such as steam, oil, gas, and water with operating pressures up to Class 2500 (PN 420) and temperatures ranging from -29℃ to 427℃. Designed to meet the rigorous demands of industrial operations, this valve balances performance, longevity, and cost-effectiveness for global customers.

Key Features & Advantages

1.High-Quality Cast Steel Construction

Manufactured from ASTM A216 WCB/WCC cast carbon steel (or optional alloy steel), the valve offers superior mechanical strength, impact resistance, and thermal stability. Cast steel’s excellent compatibility with diverse industrial media (neutral, alkaline, and non-corrosive fluids) makes it a cost-effective choice for general-service applications, while resisting wear and deformation under high pressure and temperature.

2.API Standard Compliance

Fully adheres to API 600 (Steel Globe Valves for Flanged End Connections) and API 598 (Valve Inspection and Testing) standards, ensuring dimensional accuracy, interchangeability, and leakage-free performance. API certification guarantees compliance with global industrial requirements, facilitating cross-border procurement and project approval.

3.Flanged End Connection for Versatility

Flanged ends comply with ASME B16.5 (NPS 1/2" - 24") or BS 4504 standards, supporting RF (Raised Face) or RTJ (Ring Type Joint) configurations. This design enables easy integration into existing industrial pipelines, secure leak-proof installation, and convenient disassembly for maintenance, compatible with standard flanges across pressure classes (Class 150 to 2500).

4.Precise Flow Control & Tight Shutoff

Globe valve’s linear motion plug-and-seat design provides accurate throttling and flow regulation, ideal for applications requiring precise media control (e.g., pressure regulation, flow rate adjustment). Precision-machined seating surfaces (with optional Stellite overlay) ensure tight shutoff (API 598 Class IV leakage standard), preventing media waste and system inefficiencies.

5.Robust & Low-Maintenance Design

Bolted bonnet construction with a backseat design allows in-line maintenance—inspection, repair, or replacement of internal components (stem, plug, seat)—without removing the valve from the pipeline. The one-piece forged stem ensures structural integrity, while the handwheel (or optional gear/actuation) offers smooth operation with minimal friction, extending service life.

6.Wide Operating Range

Suitable for working pressures from Class 150 (PN 10) to Class 2500 (PN 420) and temperatures from -29℃ (-20°F) to 427℃ (800°F), adapting to diverse industrial conditions such as high-pressure steam systems, oil pipelines, and chemical processing plants.

Technical Specifications

Applications

The Cast Steel Flanged API Globe Valve is a staple in industrial flow control systems, including:

•Oil & gas exploration, production, and refining

•Petrochemical and chemical processing plants

•Power generation (thermal, nuclear, and hydroelectric)

•Industrial boilers and steam piping systems

•Water treatment and wastewater management

•Mining and mineral processing

•Marine and offshore industrial systems

•HVAC and industrial heating/cooling systems

Why Choose Our Cast Steel Flanged API Globe Valve?

✅ API-Certified Reliability: Complies with global API standards for consistent performance in critical applications.

✅ Durable Cast Steel Build: Resists high pressure, temperature, and mechanical stress for long service life.

✅ Precise Flow Control: Globe valve design ensures accurate throttling and tight shutoff, reducing operational costs.

✅ Global Compatibility: Flanged connections and standard compliance fit international piping systems.

✅ Cost-Effective Solution: Balances premium performance with competitive pricing for general-service applications.

✅ Customization Options: Available in various sizes, pressure classes, and actuation types to meet specific project needs.

Order Information

Contact our technical sales team for personalized quotes, 2D/3D drawings, material certificates (ASTM A216), or sample requests. We provide global shipping and professional after-sales support to ensure project success.

•Minimum Order Quantity (MOQ): 1 Unit

•Lead Time: 7-20 Working Days (Standard Sizes); Customized Orders: 20-35 Working Days

•Payment Terms: T/T (30% Advance + 70% Against B/L Copy), L/C, Western Union

•Shipping: Sea Freight (FCL/LCL), Air Freight, Express (DHL/FedEx/UPS)

•Packaging: Anti-corrosion Coating + Wooden Case + Custom Labeling (Meets Export Standards)

•After-Sales Service: 12-Month Warranty, Technical Support, and Spare Parts Supply

What Is a Cast Steel Flanged API Globe Valve

A Cast Steel Flanged API Globe Valve is a linear motion valve used to start, stop, and regulate the flow of liquids, gases, and steam in industrial pipelines. The body is made from cast steel, which provides excellent strength and durability under demanding operating conditions. Flanged ends allow secure bolted connections to piping systems. Designed in accordance with API standards, this valve delivers dependable sealing and accurate throttling performance in critical applications.

Why the Cast Steel Flanged API Globe Valve Matters

This valve is important because it provides precise flow control and reliable shutoff in process systems where stability and safety are essential. The cast steel body withstands pressure, temperature changes, and mechanical stress. API compliant construction ensures consistent quality and dependable operation. The flanged design simplifies installation and maintenance, making the valve a trusted choice for oil, gas, power generation, chemical, and water treatment facilities.

Common Product Types by Cast Steel Flanged API Globe Valve

Common product types include standard pattern globe valves for general service, angle globe valves for changing flow direction, and Y pattern globe valves for lower flow resistance. Outside screw and yoke designs are widely used for easy stem position indication and maintenance. Bellows sealed versions are available for hazardous or environmentally sensitive media. Different seat and trim materials can be selected to suit a wide range of operating conditions.

Key Advantages of Cast Steel Flanged API Globe Valve

The valve offers accurate throttling, dependable shutoff, and strong structural integrity. Cast steel construction provides high mechanical strength and long service life. Flanged ends make installation and replacement straightforward. The disc and seat design allows smooth operation and excellent sealing. API standards ensure reliable performance, easier maintenance, and compatibility with demanding industrial systems involving high temperature, pressure, and corrosive media.

Cast Steel Flanged API Globe Valve Machine Structure and Core Stations

Manufacturing begins with casting the body, bonnet, disc, and other major components. Core stations include heat treatment, CNC machining of flange faces, sealing surfaces, and stem threads, followed by assembly of the disc, stem, packing, gasket, and handwheel. Final stations perform seat lapping, pressure testing, surface coating, marking, and packaging to ensure dimensional accuracy, sealing integrity, and compliance with industrial standards.
