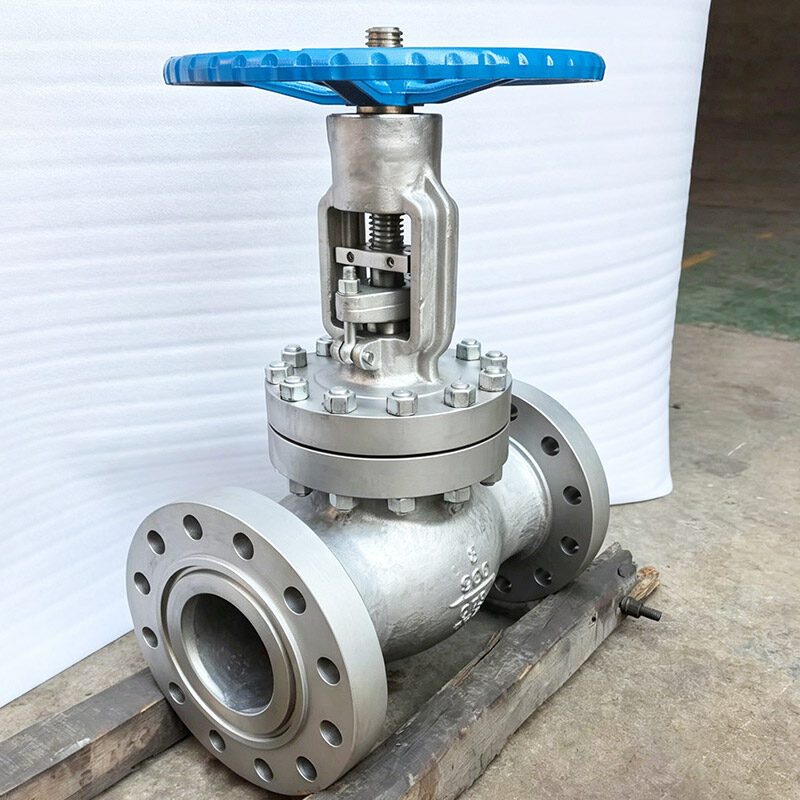

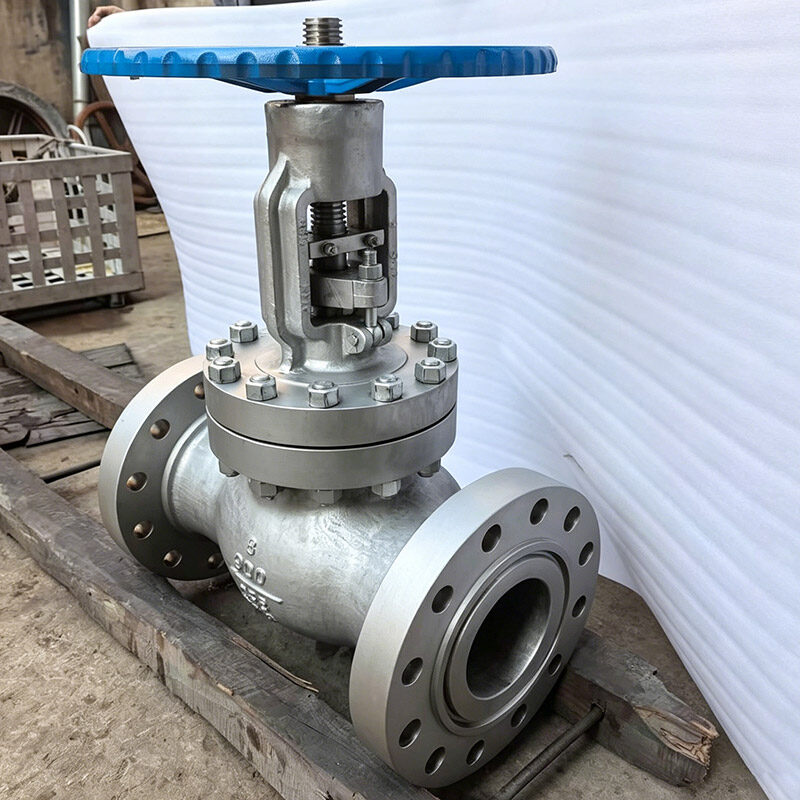

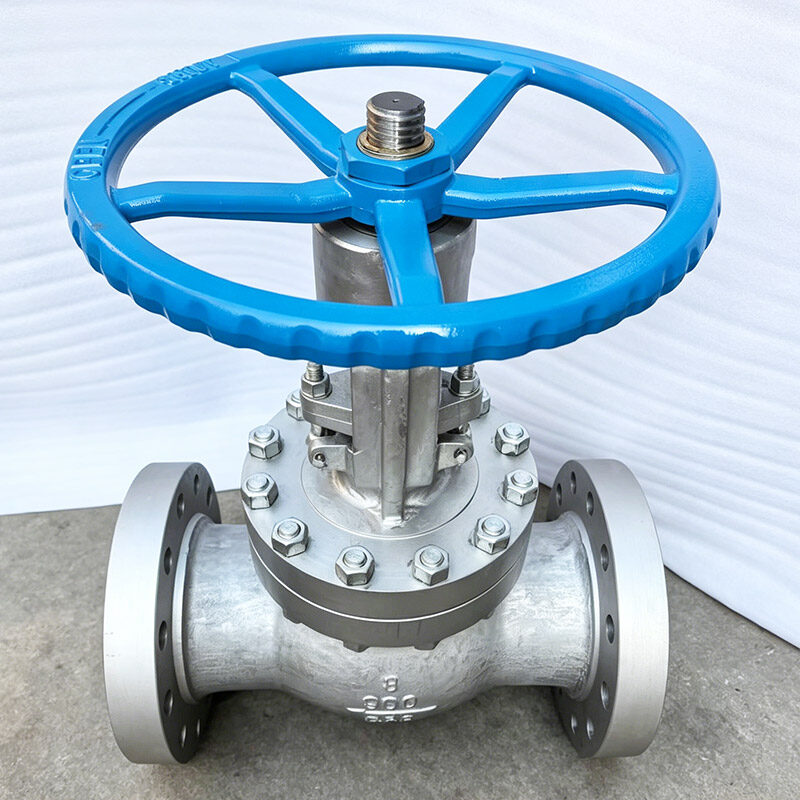

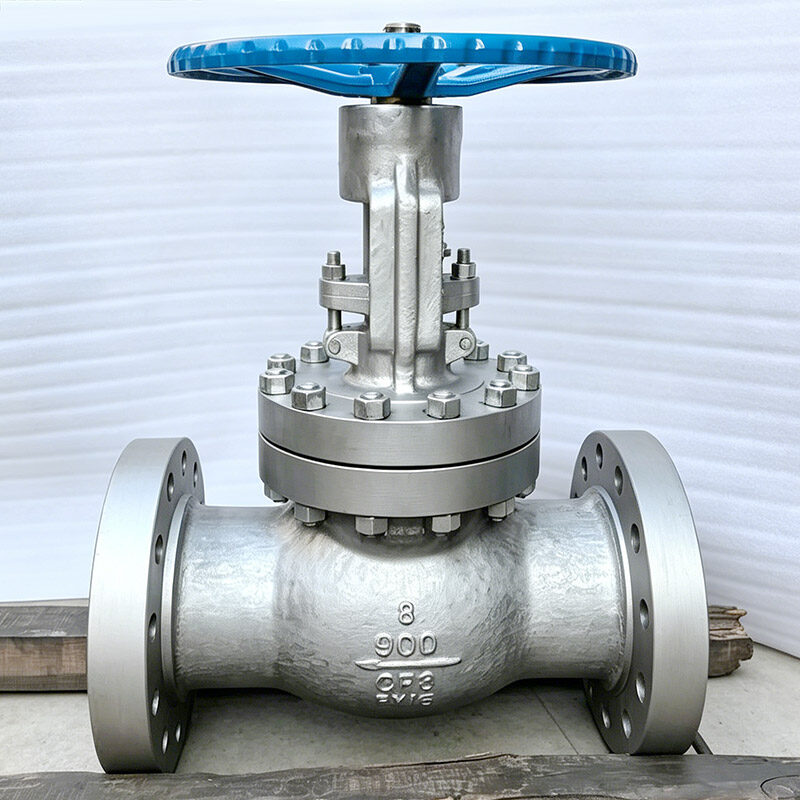

CF8 Stainless Steel 900LB BS1873 Globe Valve - High Pressure Corrosion Resistant Valve

Product Overview

The CF8 Stainless Steel 900LB BS1873 Globe Valve is a high-performance industrial valve engineered for extreme high-pressure corrosive applications, combining the superior corrosion resistance of CF8 stainless steel with strict compliance to BS1873 standards. As the cast equivalent of 304 stainless steel (ASTM A351), CF8 features a balanced chemical composition (18-20% chromium, 8-10.5% nickel, ≤0.08% carbon) that delivers exceptional resistance to general acids, organic chemicals, and non-chloride bearing media . Rated for 900LB (PN 150) pressure class and compliant with BS1873—an internationally recognized standard for flanged steel globe valves—this valve ensures reliable shutoff, precise flow control, and structural integrity in harsh industrial environments . It is widely trusted in oil & gas, chemical processing, petrochemical, and power generation industries, operating seamlessly in temperatures ranging from -29℃ to 538℃ (-20°F to 1000°F) .

Key Features & Advantages

1.Premium CF8 Stainless Steel Construction

Manufactured from ASTM A351 CF8 stainless steel, an austenitic alloy equivalent to forged 304 stainless steel, which offers excellent corrosion resistance，alkali solutions, salt solutions, and sulfur-containing media . The controlled chemical composition (≤0.08% carbon, 3-7% δ-ferrite) prevents thermal cracking during casting and minimizes sensitization, ensuring structural integrity even after welding or long-term high-temperature exposure . With a tensile strength of ≥485MPa and elongation of ≥30%, CF8 delivers robust mechanical performance for high-pressure applications .

2.BS1873 Standard Compliance

Fully adheres to BS1873 specifications for flanged end steel globe valves, including heavy-wall body construction, full-port flow channels, large-diameter rising stem with bracket, and bolted bonnet design . Complies with API 598 and ASME B16.34 standards for inspection, testing, and pressure-temperature ratings, guaranteeing dimensional accuracy, interchangeability, and leak-free performance (API 598 Class IV leakage rating) . Suitable for pressure classes up to 2500LB and sizes from DN15 to DN400, meeting the demands of critical industrial pipelines .

3.900LB (PN 150) High-Pressure Rating

Rated for working pressures up to 15.0 MPa (2175 psi) at ambient temperatures, with pressure-temperature ratings aligned to ASME B16.34 standards . The robust design features reinforced body walls and precision-engineered internal components to handle extreme high-pressure conditions, making it ideal for high-pressure steam systems, chemical injection lines, and oil & gas production facilities .

4.Flanged End Connection for Global Compatibility

Flanged ends comply with ASME B16.5 standards, featuring raised face (RF) or ring type joint (RTJ) configurations for secure, leak-proof installation . Compatible with standard industrial flanges, enabling easy integration into existing pipelines and convenient disassembly for maintenance. The flanged design supports high-pressure sealing requirements, ensuring reliability in critical applications .

5.Precise Flow Control & Tight Shutoff

Globe valve's linear motion plug-and-seat design provides accurate throttling and flow regulation, ideal for applications requiring precise media control (e.g., pressure regulation, flow rate adjustment). Precision-machined metallic seating surfaces (with optional Stellite overlay) ensure tight shutoff, meeting API 598 Class IV and ASME B16.104 Class IV leakage standards to prevent media waste and environmental hazards . The BS1873-specified valve seat 孔尺寸 ensures optimal flow characteristics and sealing performance .

6.Robust & Low-Maintenance Design

Bolted bonnet construction with a backseat design allows in-line maintenance—inspection, repair, or replacement of internal components (stem, plug, seat)—without removing the valve from the pipeline . The one-piece forged 304 stainless steel stem features a large diameter (per BS1873 requirements) to withstand high axial forces and torque, preventing deformation or failure in high-pressure operations . The handwheel (or optional gear/electric actuation) offers smooth operation with minimal friction, extending service life.

7.Wide Operating Temperature Range

Suitable for extreme temperature conditions from -29℃ (-20°F) to 538℃ (1000°F), adapting to high-temperature steam systems and moderate cryogenic applications . The austenitic structure of CF8 stainless steel maintains toughness and corrosion resistance across the entire temperature range, avoiding embrittlement or performance degradation.

Technical Specifications

Applications

The CF8 Stainless Steel 900LB BS1873 Globe Valve is ideally suited for:

•Oil & gas production and downstream operations (refineries, high-pressure pipelines)

•Chemical processing plants (handling organic acids, non-chloride corrosive media)

•Petrochemical facilities (crude oil refining, chemical synthesis)

•Power generation (high-pressure steam auxiliary pipelines, boiler feedwater systems)

•High-pressure fluid systems (chemical injection, hydraulic systems)

•Marine and offshore industrial systems (corrosive seawater environments)

Why Choose Our CF8 900LB BS1873 Globe Valve?

✅ Superior Corrosion Resistance: CF8 stainless steel resists acids, alkalis, and sulfur-containing media, extending service life in harsh environments .

✅ BS1873 Reliability: Complies with global standards for high-pressure globe valves, ensuring performance consistency and interchangeability .

✅ 900LB High-Pressure Capacity: Rated for PN 150 systems, suitable for critical high-pressure applications .

✅ Global Compatibility: ASME B16.5 flanged connections fit international piping systems, facilitating cross-border projects .

✅ Precise Flow Control: Globe valve design enables accurate throttling and tight shutoff, optimizing operational efficiency .

✅ Durable Construction: Reinforced body, large-diameter stem, and Stellite seating surfaces ensure long-term reliability in extreme conditions .

Order Information

Contact our technical sales team for personalized quotes, 2D/3D drawings, ASTM A351 CF8 material certificates, or sample requests. We provide professional valve solutions and global logistics support.

•Minimum Order Quantity (MOQ): 1 Unit

•Lead Time: 12-30 Working Days (Standard Sizes); Customized Orders: 30-45 Working Days

•Payment Terms: T/T (30% Advance + 70% Against B/L Copy), L/C, Western Union

•Shipping: Sea Freight (FCL/LCL), Air Freight, Express (DHL/FedEx/UPS)

•Packaging: Anti-corrosion Coating + Wooden Case + Custom Labeling (Meets Export Standards)

•After-Sales Service: 12-Month Warranty, Technical Support, and Spare Parts Supply

What Is a CF8 Stainless Steel 900LB BS1873 Globe Valve

A CF8 Stainless Steel 900LB BS1873 Globe Valve is a high pressure control valve used to regulate and shut off fluid flow in industrial piping systems. CF8 is a cast austenitic stainless steel with excellent corrosion resistance and good mechanical strength. The globe valve design uses a vertically moving disc to provide accurate throttling and tight sealing. Manufactured to BS1873 requirements, this valve is widely used in chemical processing, oil and gas, power generation, and marine service.

Why the CF8 Stainless Steel 900LB BS1873 Globe Valve Matters

This valve is important because it delivers precise flow control and reliable shutoff under demanding pressure and temperature conditions. CF8 stainless steel resists rust, oxidation, and many corrosive media, helping extend service life. The BS1873 design standard ensures consistent construction and dependable performance. Its robust structure protects critical equipment and supports stable process control in applications where leakage and flow fluctuations must be minimized.

Common Product Types by CF8 Stainless Steel 900LB BS1873 Globe Valve

Common product types include standard pattern globe valves for general throttling, angle globe valves for changing flow direction, and Y pattern globe valves for reduced pressure loss. Outside screw and yoke designs are widely used for easy maintenance and clear stem position indication. Bellows sealed versions are available for hazardous fluids, and a variety of trim materials can be selected to suit corrosive or erosive service conditions.

Key Advantages of CF8 Stainless Steel 900LB BS1873 Globe Valve

The valve offers excellent corrosion resistance, accurate flow regulation, and dependable shutoff. CF8 stainless steel provides durability and stable performance in aggressive environments. The globe valve structure allows fine adjustment of flow and repeated cycling without significant wear. BS1873 compliant construction ensures reliable sealing, long service life, and simplified maintenance in high pressure industrial applications.

CF8 Stainless Steel 900LB BS1873 Globe Valve Machine Structure and Core Stations

Manufacturing begins with precision casting of the body, bonnet, disc, and stem components in CF8 stainless steel. Core stations include solution treatment, CNC machining of sealing surfaces, flange faces, and stem threads, followed by assembly of the disc, stem, packing, gasket, and handwheel. Final stations perform seat lapping, pressure testing, cleaning, passivation, marking, and packaging to ensure corrosion resistance, dimensional accuracy, and leak tight performance.
