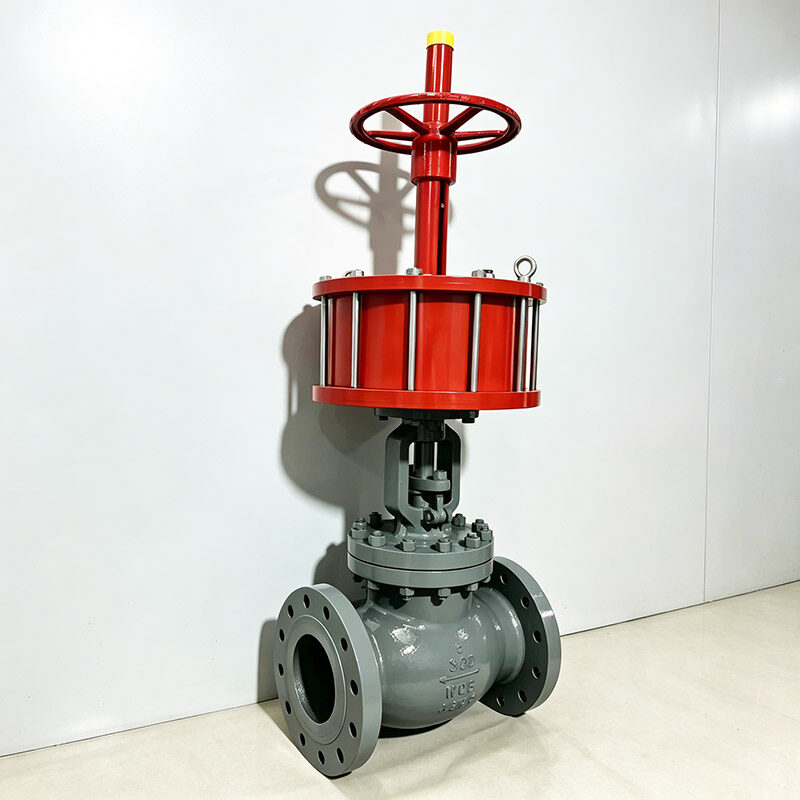

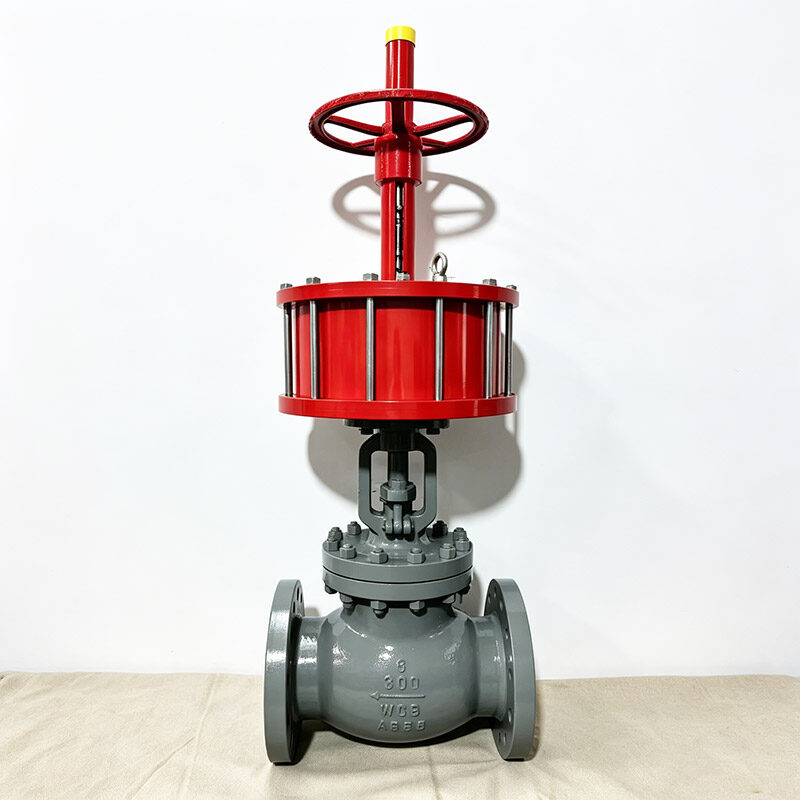

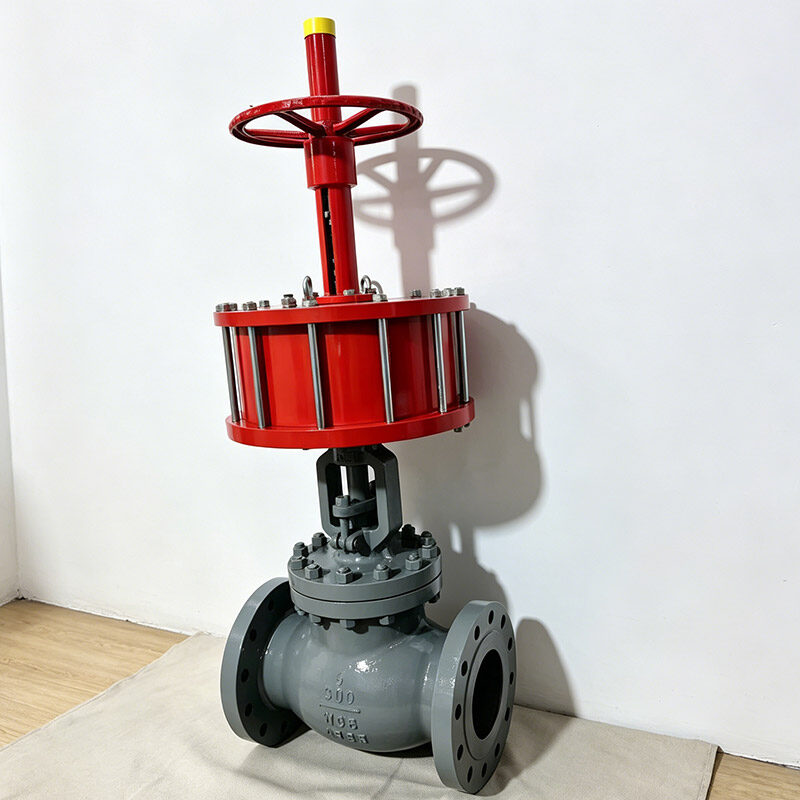

WCB Flanged Pneumatic BS1873 Carbon Steel Globe Valve

Product Overview

The WCB Flanged Pneumatic BS1873 Carbon Steel Globe Valve is a reliable industrial flow control valve engineered for medium-to-high pressure general service applications, fully complying with British Standard BS1873 for flanged steel globe valves. Constructed with premium WCB carbon steel (ASTM A216) — a widely used cast carbon steel with excellent mechanical strength and weldability — this valve features flanged end connections (ASME B16.5) and a pneumatic actuator for automatic/remote flow regulation. Rated for pressure classes up to 1500LB (PN250) and operating temperatures from -29℃ to 425℃ (-20°F to 800°F), it delivers precise throttling, tight shutoff (API 598 Class IV), and stable performance in handling steam, oil, gas, water, and non-corrosive industrial media. Widely adopted in oil & gas, petrochemical, power generation, and water treatment industries, it balances cost-effectiveness, durability, and operational efficiency for global industrial clients.

Key Features & Advantages

1.Premium WCB Carbon Steel Construction

Manufactured from ASTM A216 WCB cast carbon steel — a cost-effective and versatile material with tensile strength 485-655 MPa, yield strength ≥275 MPa, and excellent impact resistance. WCB offers good compatibility with non-corrosive media (steam, oil, gas, water) and adapts to medium-to-high temperature environments (up to 425℃), making it the preferred choice for general industrial service. The cast structure ensures uniform wall thickness and reliable pressure-bearing capacity, compliant with ASME B16.34 pressure-temperature ratings.

2.BS1873 Standard Compliance

Fully adheres to British Standard BS1873 specifications for flanged end steel globe valves, including heavy-wall body design, full-port flow channels, bolted bonnet construction, and precise dimensional tolerances. Complies with API 598 (inspection and testing) and ASME B16.34 (pressure-temperature ratings), ensuring interchangeability with BS1873-compliant valves and leak-free performance (API 598 Class IV leakage rating). BS1873 certification facilitates procurement for projects following British/Commonwealth industrial standards.

3.Flanged End Connection (ASME B16.5)

Equipped with flanged ends per ASME B16.5 standards, available in RF (Raised Face) or RTJ (Ring Type Joint) configurations for secure, leak-proof installation. The flanged design enables easy assembly/disassembly for maintenance, compatible with standard industrial flanges across pressure classes (150LB-1500LB / PN20-PN250) and sizes (1/2"-24" / DN15-DN600). Ideal for applications requiring frequent maintenance or system modifications.

4.Pneumatic Actuator for Automatic Control

Configured with a double-acting or spring-return (fail-safe) pneumatic actuator, enabling remote/automatic flow regulation without manual operation. The actuator features a rugged aluminum alloy housing, stainless steel internal components, and a Scotch-Yoke or Rack-and-Pinion mechanism for smooth linear motion (valve stem stroke control). Standard accessories include solenoid valve (24VDC/220VAC), air filter regulator, and limit switch for position feedback; optional positioner (4-20mA) is available for precise proportional control. The pneumatic drive ensures fast response (opening/closing time 3-10 seconds) and reliable operation in harsh industrial environments.

5.Precise Flow Control & Tight Shutoff

Globe valve’s linear motion plug-and-seat design provides accurate throttling and flow regulation, ideal for applications requiring pressure control, flow rate adjustment, or on-off service. The valve plug and seat are precision-machined, with optional Stellite 6 overlay welding for enhanced wear, erosion, and high-temperature resistance. The metal-to-metal seal meets API 598 Class IV leakage standards, preventing media waste and system inefficiencies. The full-port flow channel minimizes pressure drop when fully open, optimizing energy consumption.

6.Robust & Low-Maintenance Design

Bolted bonnet construction with a backseat design allows in-line maintenance — inspection, repair, or replacement of internal components (stem, plug, seat) — without removing the valve from the pipeline, reducing downtime and maintenance costs. The one-piece forged steel stem (A182 F6a) ensures structural integrity and corrosion resistance, while the actuator’s modular design facilitates easy troubleshooting and part replacement. All wetted parts are corrosion-resistant, extending service life in medium-to-high temperature media.

Technical Specifications

Applications

The WCB Flanged Pneumatic BS1873 Carbon Steel Globe Valve is ideally suited for general industrial flow control systems, including:

•Oil & gas downstream operations (refineries, product pipelines, storage terminals)

•Petrochemical and chemical processing (process lines, reactor feed systems, steam distribution)

•Power generation (thermal power plants, boiler feedwater lines, steam auxiliary systems)

•Water treatment and wastewater management (high-pressure pump discharge, process water lines)

•Industrial boilers and heating systems (steam supply, temperature/pressure control)

•Marine and offshore industrial systems (shipboard piping, offshore platform utilities)

•HVAC and industrial building services (hot water, steam heating lines)

Why Choose Our WCB Pneumatic BS1873 Globe Valve?

✅ BS1873/API Compliance: Fully meets British and international standards for reliable performance and interchangeability.

✅ Cost-Effective Durability: WCB carbon steel balances performance and cost for general industrial service.

✅ Automatic Remote Control: Pneumatic actuator enables efficient, labor-saving operation in remote or inaccessible locations.

✅ Precise Flow Regulation: Globe valve design ensures accurate throttling and tight shutoff, optimizing system efficiency.

✅ Easy Installation & Maintenance: Flanged connections and bolted bonnet facilitate quick assembly and in-line maintenance.

✅ Global Compatibility: ASME B16.5 flanges and multi-standard compliance fit international piping systems.

Order Information

•Minimum Order Quantity (MOQ): 1 Unit

•Lead Time: 7-20 Working Days (Standard Sizes); Customized Orders: 20-35 Working Days

•Payment Terms: T/T (30% Advance + 70% Against B/L Copy), L/C, Western Union

•Shipping: Sea Freight (FCL/LCL), Air Freight, Express (DHL/FedEx/UPS)

•Packaging: Anti-corrosion Coating + Wooden Case + Custom Labeling (Meets Export Standards)

•After-Sales Service: 12-Month Warranty, Technical Support, Spare Parts Supply

•Certifications Provided: Material Mill Test Certificate (EN 10204 3.1), API 598 Test Report, ISO 9001 Certificate, BS1873 Compliance Certificate

Contact our technical sales team for personalized quotes, 2D/3D drawings, actuator specification sheets, or sample requests. We provide tailored flow control solutions to meet your specific application requirements.

What Is a WCB Flanged Pneumatic BS1873 Carbon Steel Globe Valve

A WCB Flanged Pneumatic BS1873 Carbon Steel Globe Valve is an automated control valve used to regulate or shut off the flow of liquids, gases, and steam in industrial pipelines. The valve body is made from WCB cast carbon steel, which provides high strength and reliable performance under demanding conditions. A pneumatic actuator uses compressed air to operate the stem and disc. Flanged ends simplify installation, and BS1873 design requirements ensure dependable construction and sealing.

Why the WCB Flanged Pneumatic BS1873 Carbon Steel Globe Valve Matters

This valve is important because it combines accurate flow control with fast and repeatable automated operation. Pneumatic actuation allows remote control and easy integration with process systems. WCB carbon steel offers excellent mechanical strength and broad service compatibility. BS1873 compliant construction ensures consistent quality and dependable shutoff, helping improve operational safety, reduce manual intervention, and maintain stable process conditions.

Common Product Types by WCB Flanged Pneumatic BS1873 Carbon Steel Globe Valve

Common product types include standard pattern globe valves for general throttling, angle globe valves for changing flow direction, and Y pattern globe valves for reduced pressure loss. Pneumatic configurations may be air to open or air to close, with spring return or double acting actuators. Optional accessories include positioners, solenoid valves, limit switches, and air filter regulators for enhanced control and monitoring.

Key Advantages of WCB Flanged Pneumatic BS1873 Carbon Steel Globe Valve

The valve offers precise flow regulation, reliable shutoff, and automated operation without manual effort. Pneumatic actuation provides rapid response and safe operation in hazardous environments. WCB carbon steel delivers durability and strength for a wide range of industrial services. Flanged ends make installation and maintenance straightforward, while BS1873 construction ensures long service life and consistent sealing performance.

WCB Flanged Pneumatic BS1873 Carbon Steel Globe Valve Machine Structure and Core Stations

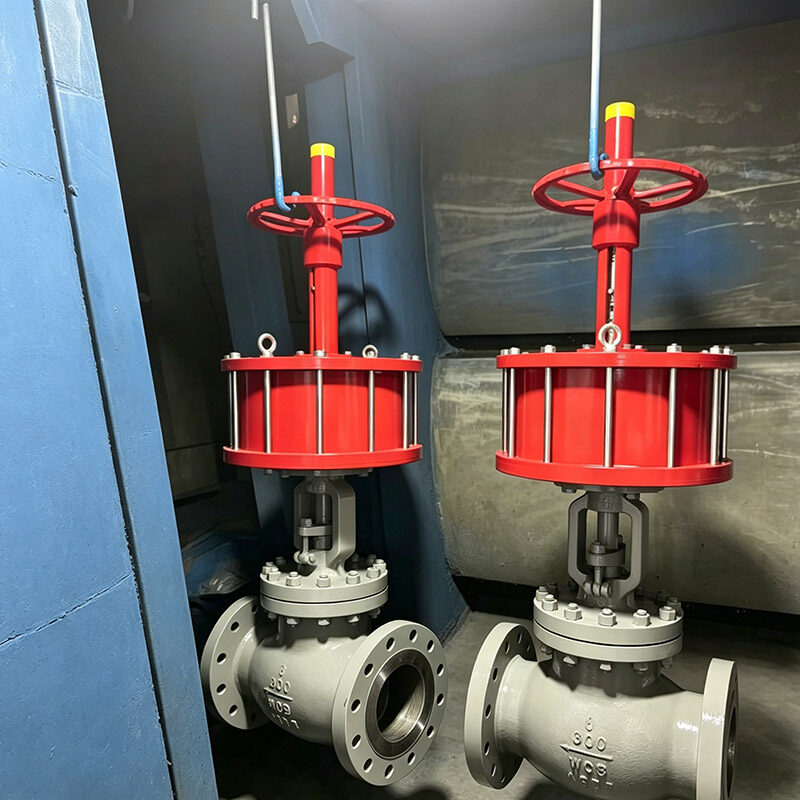

Manufacturing begins with casting the body, bonnet, disc, and yoke from WCB carbon steel. Core stations include heat treatment, CNC machining of flange faces, sealing surfaces, and stem threads. Assembly stations install the disc, stem, packing, bonnet, and pneumatic actuator with accessories. Final operations include seat lapping, pressure testing, actuator calibration, coating, marking, and packaging to ensure accurate control and leak tight performance.
