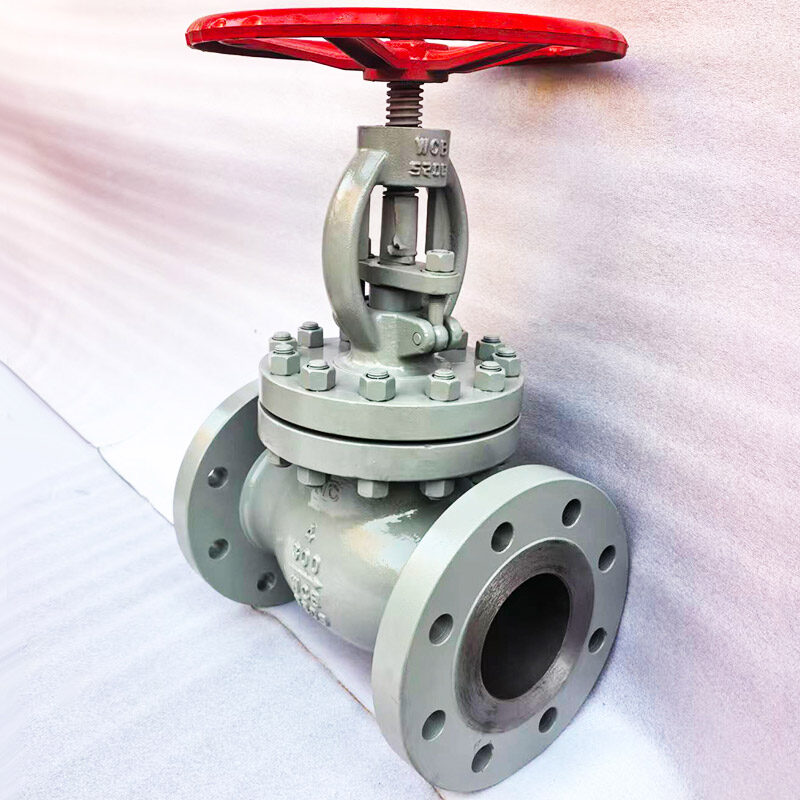

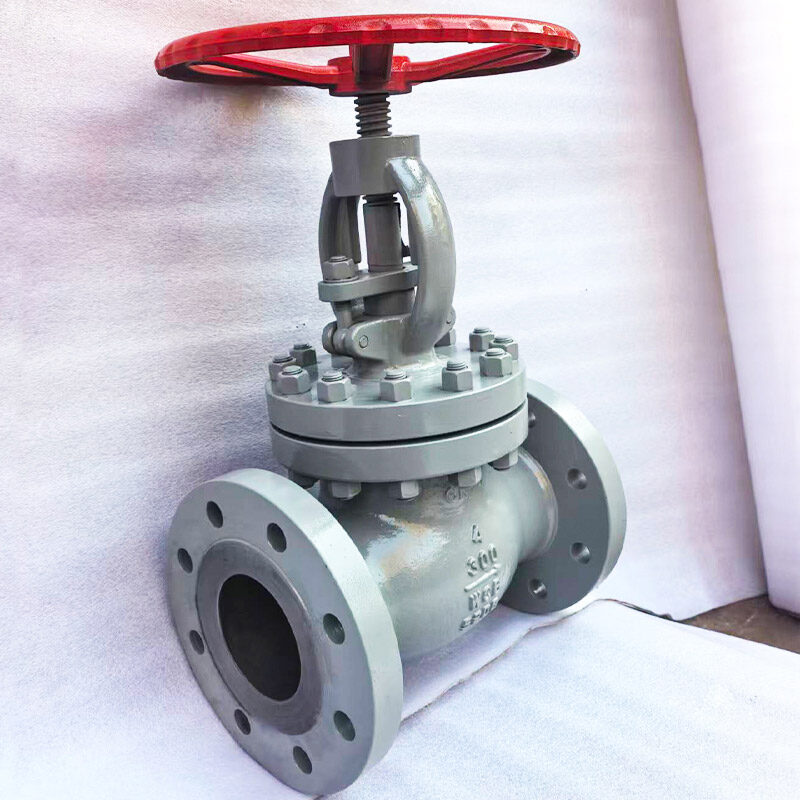

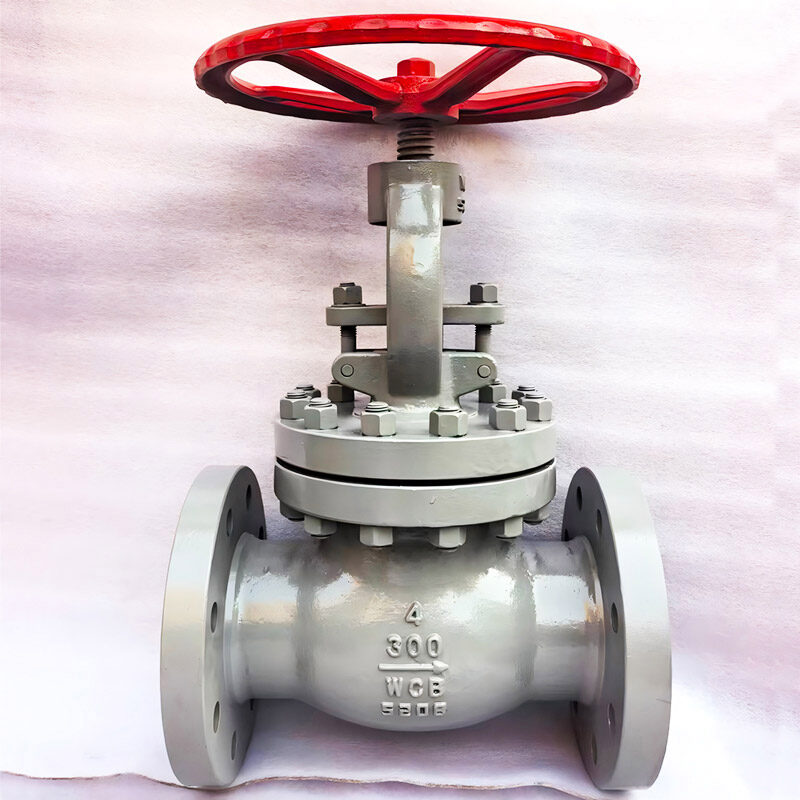

WCB Cast Steel 300LB Flanged BS1873 Globe Valve

Product Overview

The WCB Cast Steel 300LB Flanged BS1873 Globe Valve is a cost-effective and reliable flow control valve engineered for medium-pressure (300LB/PN50) general industrial applications, fully complying with British Standard BS1873 for flanged steel globe valves. Constructed from premium WCB cast steel (ASTM A216) — a widely used carbon steel casting with excellent weldability, mechanical strength, and cost-effectiveness — this valve features ASME B16.5 flanged connections and an OS&Y (Outside Screw and Yoke) rising stem design. Rated for working pressures up to 5.0 MPa (725 psi) and operating temperatures from -29℃ to 425℃ (-20°F to 800°F), it delivers precise throttling, tight shutoff (API 598 Class IV), and long-term durability in handling non-corrosive media such as water, steam, oil, and compressed air. Widely adopted in power generation, petrochemical, municipal engineering, and industrial boiler systems, it balances BS1873 standard compliance, operational efficiency, and economic value for global industrial clients.

Key Features & Advantages

1.Premium WCB Cast Steel Construction

Manufactured from ASTM A216 WCB cast steel — a versatile carbon steel with a chemical composition of C ≤0.25%, Mn 0.50-1.00%, Si 0.15-0.40% — offering tensile strength 485-655 MPa, yield strength ≥275 MPa, and excellent impact resistance . WCB combines superior weldability and machinability with cost-effectiveness, making it the preferred choice for general industrial service where corrosive media are not present. The cast structure ensures uniform wall thickness and reliable pressure-bearing capacity, compliant with ASME B16.34 pressure-temperature ratings . It operates stably in medium-temperature environments up to 425℃, adapting to steam, oil, and high-pressure water applications.

2.BS1873 Standard Compliance

Fully adheres to British Standard BS1873 (specifications for flanged steel globe valves and lift check valves), including structural design, material requirements, and dimensional tolerances . Complies with ASME B16.34 (pressure-temperature ratings), ASME B16.10 (structure length), and API 598 (inspection and testing) standards, ensuring global interchangeability and leak-free performance (API 598 Class IV leakage rating) . BS1873 specifies dual-sealing systems (soft graphite ring + metal seat) and requires 2000-cycle opening/closing tests without damage, guaranteeing long-term reliability in critical applications . The standard covers sizes from 1/2" to 16" (DN15 to DN400) and pressure classes up to 2500LB, making this valve suitable for European and international projects .

3.300LB (PN50) Medium-Pressure Rating

Rated for working pressures up to 5.0 MPa (725 psi) at ambient temperatures, with pressure-temperature ratings strictly aligned to ASME B16.34 and BS1873 Class 300 requirements . At 300℃ (572°F), the valve retains a working pressure of 3.9 MPa (566 psi), ensuring stable performance in medium-pressure systems such as boiler feedwater lines, steam distribution pipelines, and industrial process lines . The reinforced WCB body and precision-engineered internal components (per BS1873 wall thickness standards) handle pressure cycling without deformation or leakage .

4.ASME B16.5 Flanged Connections

Equipped with flanged ends per ASME B16.5 standards, available in RF (Raised Face) or RTJ (Ring Type Joint) configurations for secure, leak-proof installation . The flanged design enables easy assembly, disassembly, and maintenance, compatible with standard industrial flanges across sizes from 1/2" to 16" (DN15 to DN400) — the full size range covered by BS1873 . Gaskets are made of 304 stainless steel + graphite or soft iron + graphite, ensuring reliable sealing in cyclic pressure conditions . Ideal for applications requiring frequent inspection or system modifications.

5.OS&Y Rising Stem & Precise Flow Control

Outside screw and yoke (OS&Y) rising stem design keeps stem threads protected from media corrosion (thread not in contact with fluid), extending service life . The rising stem provides visual confirmation of valve position (open/closed) for easy operation monitoring, critical for safety-critical systems . The globe valve’s linear motion plug-and-seat design (conic disc) enables precise throttling and flow regulation, with a short stroke for quick opening/closing . The valve disc and seat are precision-machined, with optional Stellite 6 overlay welding (hardness HRC 48-62) for enhanced wear and high-temperature resistance .

6.Robust & Low-Maintenance Design

Bolted bonnet construction with a backseat design allows in-line maintenance — inspection, repair, or replacement of internal components (stem, disc, seat) — without removing the valve from the pipeline . The one-piece forged steel stem (ASTM A182 F6a) ensures structural integrity and corrosion resistance, while graphite packing provides reliable stem sealing with low friction . Key components such as bonnet bolts (ASTM A193 B7) and nuts (ASTM A194 2H) meet high-strength standards, ensuring assembly reliability . All wetted parts are manufactured from WCB or compatible materials, extending service life in non-corrosive environments.

7.Wide Operating Temperature Range

Suitable for temperature conditions from -29℃ (-20°F) to 425℃ (800°F) . WCB cast steel maintains stable mechanical properties across this range, adapting to diverse industrial environments from municipal heating systems to power plant steam lines. The material’s excellent thermal conductivity ensures uniform temperature distribution, preventing thermal stress deformation .

Technical Specifications

Applications

The WCB Cast Steel 300LB Flanged BS1873 Globe Valve is ideally suited for general industrial flow control in:

•Power generation (thermal power plants, boiler feedwater lines, steam auxiliary systems)

•Petrochemical and chemical processing (non-corrosive process lines, oil refining, fuel systems)

•Municipal engineering (water supply and drainage, heating pipelines, natural gas distribution)

•Industrial boilers and heating systems (steam supply, high-pressure water circulation)

•Marine and offshore utilities (shipboard piping, offshore platform non-corrosive media lines)

•Food & beverage industry (steam cleaning lines, non-corrosive fluid transfer)

•General industrial machinery (hydraulic systems, compressed air pipelines)

Why Choose Our WCB 300LB BS1873 Globe Valve?

✅ Cost-Effective Reliability: WCB cast steel balances performance and cost for general industrial service .

✅ BS1873/ASME Compliance: Meets British and international standards for global project compatibility .

✅ Precise Flow Regulation: Globe valve design enables accurate throttling, ideal for pressure control and medium-pressure differential systems .

✅ Durable OS&Y Design: Protected stem threads and rising stem position indication extend service life .

✅ Easy Installation & Maintenance: ASME B16.5 flanged connections and bolted bonnet facilitate quick assembly and in-line service .

✅ Proven Industrial Performance: Trusted in power generation, petrochemical, and municipal systems worldwide.

Order Information

•Minimum Order Quantity (MOQ): 1 Unit

•Lead Time: 7-20 Working Days (Standard Sizes); Customized Orders: 20-35 Working Days

•Payment Terms: T/T (30% Advance + 70% Against B/L Copy), L/C, Western Union

•Shipping: Sea Freight (FCL/LCL), Air Freight, Express (DHL/FedEx/UPS)

•Packaging: Anti-corrosion Coating + Wooden Case + Custom Labeling (Meets Export Standards)

•After-Sales Service: 12-Month Warranty, Technical Support, Spare Parts Supply

•Certifications Provided: Material Mill Test Certificate (EN 10204 3.1), API 598 Test Report, ISO 9001 Certificate, BS1873 Compliance Certificate

Contact our technical sales team for personalized quotes, 2D/3D drawings, ASTM A216 WCB material certificates, or sample requests. We provide tailored cost-effective flow control solutions to meet your specific application needs.

What Is a WCB Cast Steel 300LB Flanged BS1873 Globe Valve

A WCB Cast Steel 300LB Flanged BS1873 Globe Valve is a linear motion valve designed to regulate, throttle, and shut off the flow of liquids, gases, and steam in industrial pipelines. The body is made from WCB cast carbon steel, which offers excellent mechanical strength and broad media compatibility. The disc moves vertically against the seat to provide precise flow control and reliable sealing. Flanged ends enable secure installation, and BS1873 construction ensures dependable performance.

Why the WCB Cast Steel 300LB Flanged BS1873 Globe Valve Matters

This valve is important because it combines accurate flow regulation with dependable shutoff in medium to high pressure systems. WCB cast steel withstands temperature changes, mechanical stress, and demanding service conditions. The globe valve design allows stable throttling and repeated operation without significant wear. BS1873 compliance ensures consistent dimensions and material quality, helping protect process equipment and maintain safe, efficient operation in critical applications.

Common Product Types by WCB Cast Steel 300LB Flanged BS1873 Globe Valve

Common product types include standard pattern globe valves for general service, angle globe valves for changing flow direction, and Y pattern globe valves for lower pressure loss. Outside screw and yoke designs are widely used for easy maintenance and visible stem position indication. Bellows sealed versions are selected for hazardous fluids. Different trim materials and seat facings are available to suit corrosive, erosive, or high temperature conditions.

Key Advantages of WCB Cast Steel 300LB Flanged BS1873 Globe Valve

The valve offers precise throttling, reliable shutoff, and strong structural integrity. WCB cast steel provides durability and cost effective performance in a wide range of industrial services. Flanged ends simplify installation and replacement. The disc and seat arrangement ensures excellent sealing and smooth operation. BS1873 construction supports long service life, reduced maintenance, and dependable performance under demanding operating conditions.

WCB Cast Steel 300LB Flanged BS1873 Globe Valve Machine Structure and Core Stations

Manufacturing begins with casting the body, bonnet, disc, and yoke from WCB carbon steel. Core stations include heat treatment, CNC machining of flange faces, sealing surfaces, and stem threads. Assembly stations install the disc, stem, packing, gasket, bonnet, and handwheel. Final operations include seat lapping, pressure testing, surface coating, marking, and packaging to ensure dimensional accuracy, sealing integrity, and reliable valve performance.
