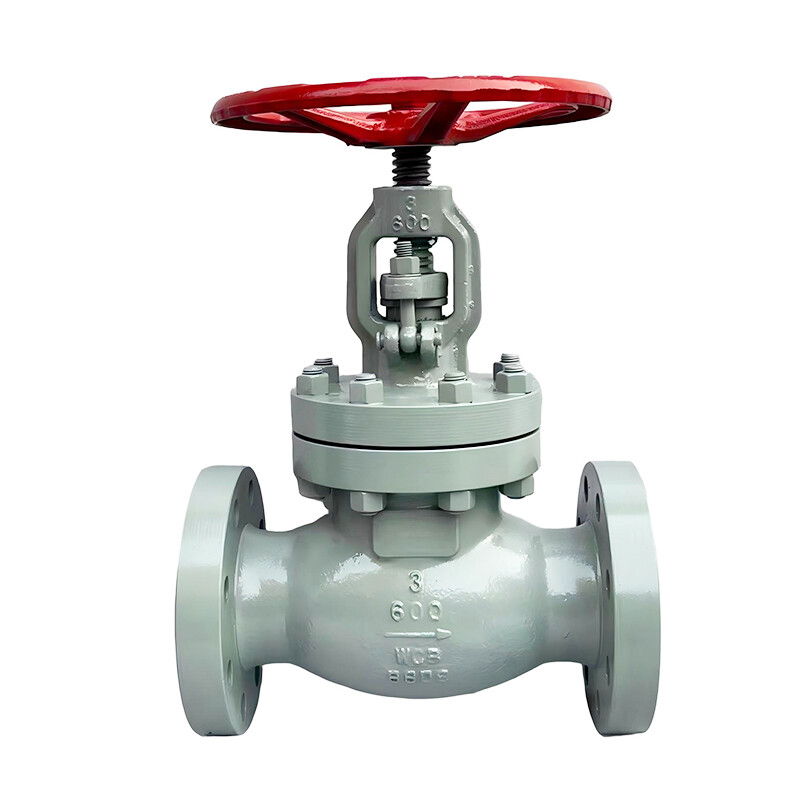

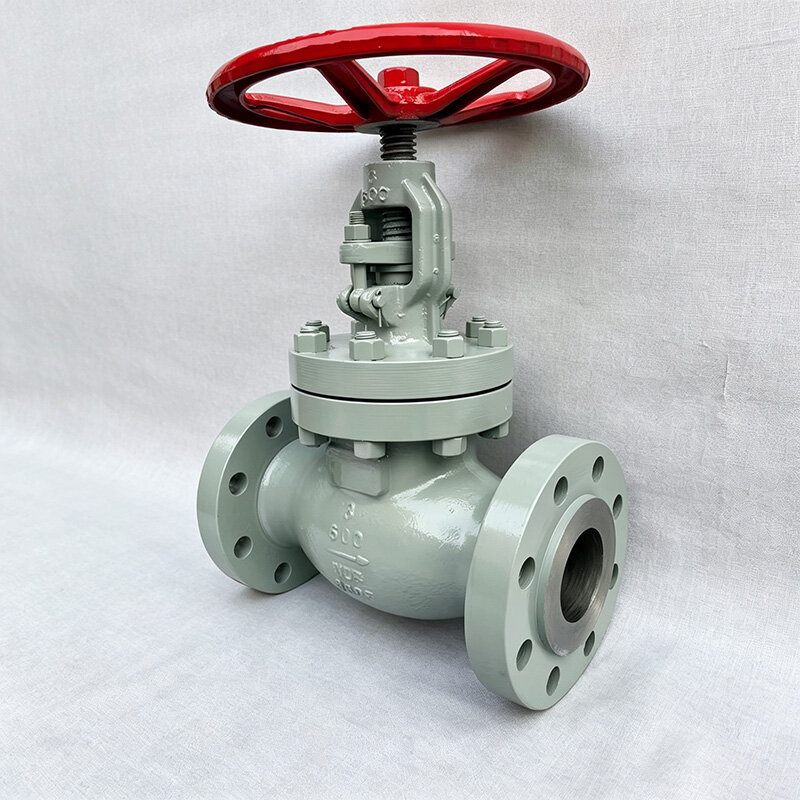

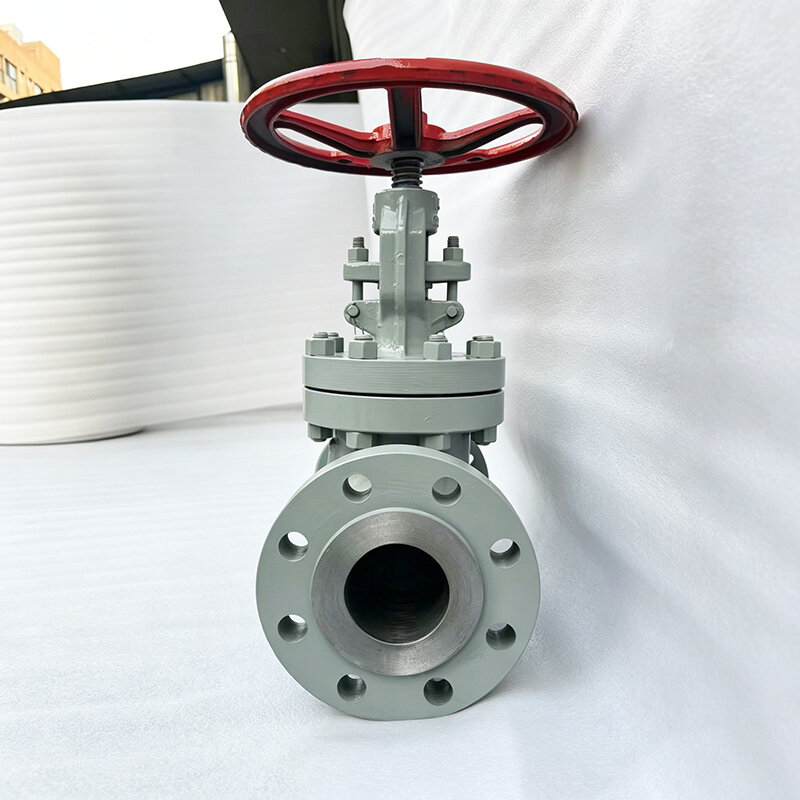

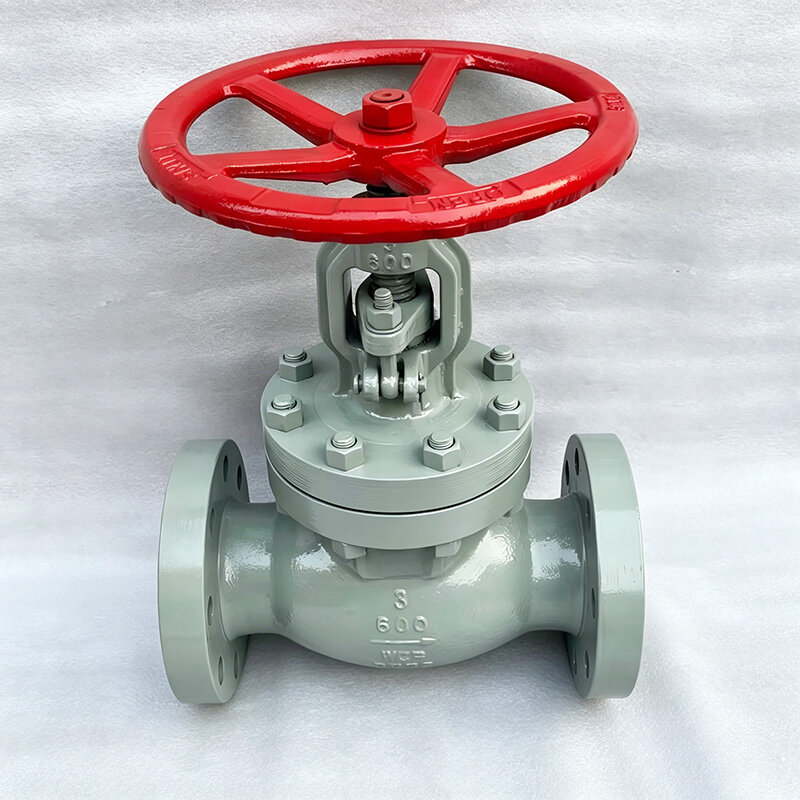

Class 600 High Pressure BS1873 ANSI Flanged Carbon Steel Globe Valve

Product Overview

The Class 600 High Pressure BS1873 ANSI Flanged Carbon Steel Globe Valve is a heavy-duty industrial throttling and cut-off valve designed and manufactured strictly in accordance with BS1873 British standard and ANSI American standard specifications. This high-pressure globe valve features Class 600 pressure rating, premium WCB carbon steel body and standard ANSI flanged connection, delivering outstanding high-pressure resistance, high-temperature stability and accurate flow regulation for harsh industrial process pipelines.

Different from low-pressure globe valves, this Class 600 high-pressure globe valve features thickened valve body wall and optimized internal pressure-bearing structure, which can withstand long-term ultra-high pressure medium impact and high-temperature cyclic operation. Adopting standard straight-through flow channel and precision disc-seat matching design, it realizes accurate flow and pressure regulation, effectively stabilizing pipeline fluid pressure and avoiding medium fluctuation. Widely applicable to petrochemical refining, oil & gas transmission, thermal power generation and high-pressure process pipeline systems, it is a cost-effective and durable high-pressure flow control solution for global industrial projects.

Key Features & Advantages

1. BS1873 & ANSI Dual Standard Compliance

Manufactured and tested strictly following BS1873 British globe valve standard, matched with ASME B16.34, B16.10, B16.5 American standard specifications. All dimensional standards, pressure-temperature parameters and inspection procedures meet international industrial requirements, fully compatible with ANSI standard pipelines, perfectly applicable to global overseas engineering projects and bidding procurement.

2. Class 600 Ultra-High Pressure Grade

Specially optimized for Class 600 high-pressure industrial scenarios, the valve adopts thick-wall integral casting structure and scientific pressure-bearing layout. It maintains stable structural rigidity under long-term ultra-high pressure load, effectively preventing body deformation, internal leakage and pipeline safety hazards, perfectly adapting to heavy-duty high-pressure process pipelines.

3. Premium WCB Carbon Steel Material

Adopts ASTM A216 WCB cast carbon steel, a widely recognized industrial pressure vessel material. It features excellent high-temperature mechanical stability, strong medium scouring resistance and good weldability, with a working temperature range of -29℃ to 425℃. The integral cast body has compact structure, no pores or sand holes, ensuring long-term durable operation.

4. Standard ANSI Flanged Connection

Equipped with ASME B16.5 standard raised face (RF) flange, with precise sealing surface processing and unified installation dimensions. The flanged structure enables quick installation, positioning and convenient daily disassembly and maintenance, with strong vibration resistance, suitable for fixed laying of long-term operating high-pressure pipelines.

5. Precise Throttling & Stable Regulation

The unique curved flow channel and disc structure of the globe valve achieve linear flow adjustment, realizing accurate control of medium flow and pipeline pressure. It effectively solves the problem of unstable fluid throttling in high-pressure pipelines, ensuring stable and safe operation of industrial process systems.

6. Strict API 598 Zero Leakage Performance

The valve disc and seat are precisely lapped, and optional Stellite hard alloy overlay enhances wear resistance and high-temperature resistance. All products pass strict API 598 hydrostatic test and seat tightness test, achieving bubble-tight zero shutoff, avoiding medium loss and pipeline safety risks.

Technical Specifications

Applications

•Petrochemical & Refinery: High-pressure process pipelines, crude oil refining systems, chemical medium throttling and cut-off pipelines

•Oil & Gas Industry: High-pressure gas transmission pipelines, oilfield gathering and transportation systems, wellhead auxiliary process pipelines

•Power Generation: Thermal power plant high-pressure steam pipelines, boiler water supply systems, high-temperature thermodynamic circulation pipelines

•Chemical Industry: High-pressure chemical reaction pipelines, industrial fluid delivery and pressure regulation systems

•General Heavy-Duty Industry: Ultra-high pressure industrial pipeline isolation, precise flow control and safety shutoff systems

Why Choose Our BS1873 Class 600 WCB Globe Valve?

✅ Dual Standard Certification — Compliant with BS1873 British standard and ANSI American standard, compatible with global industrial pipeline systems.

✅ Class 600 High Pressure Resistance — Thick-wall WCB cast steel body, stable operation under ultra-high pressure and high temperature working conditions.

✅ Reliable Carbon Steel Performance — WCB material ensures excellent high-temperature stability and scouring resistance for long-term cyclic service.

✅ ANSI Flanged Easy Maintenance — Standard flange size, convenient installation, inspection and replacement, low overall operation cost.

✅ Precise Throttling & Zero Leakage — Professional globe valve throttling design, API 598 certified bubble-tight shutoff for high-pressure pipeline safety.

Order & Certification Information

MOQ: 1 Unit

Lead Time: 18-32 working days for standard sizes

Certificates: EN10204 3.1 Material Certificate, API 598 Test Report, ISO 9001 Quality Certificate

Packing: Anti-rust treatment + Standard export wooden case

Warranty: 18-month quality warranty and lifelong technical support

Contact Us for customized sizes, actuator types and bulk quotation of BS1873 Class 600 WCB high pressure flanged globe valves.

What Is an API600 High Pressure Globe Valve

An API600 High Pressure Globe Valve is a heavy duty linear motion valve designed for throttling and shutoff service in high pressure industrial pipelines. It is manufactured according to API 600 requirements, ensuring standardized design, strength, and performance. The valve uses a disc that moves against a seat to regulate flow precisely. Built with robust materials, it is widely used in oil and gas, petrochemical, refinery, and power generation systems where reliable high pressure control is essential.

Why the API600 High Pressure Globe Valve Matters

This valve is important because it provides accurate flow regulation and dependable sealing in demanding high pressure environments. API 600 standards ensure consistent quality, structural integrity, and safe operation. The valve helps maintain stable process control and protects downstream equipment from pressure fluctuations. Its strong construction and reliable performance make it a critical component in systems that require both throttling capability and long term operational safety.

Common Product Types by API600 High Pressure Globe Valve

Common product types include standard pattern globe valves, angle globe valves, and Y pattern globe valves designed for high pressure service. Bonnet structures may include bolted bonnet, welded bonnet, and pressure seal bonnet designs. Operation methods include manual handwheel, gear operated, electric actuator, and pneumatic actuator configurations. Various trim materials and hardfaced sealing surfaces are used to handle high temperature, corrosion, and erosive conditions.

Key Advantages of API600 High Pressure Globe Valve

The valve offers precise throttling performance, strong pressure resistance, and reliable shutoff capability. API 600 compliant construction ensures durability and consistent quality. Its internal design allows stable flow regulation under severe operating conditions. Hardened seating surfaces improve wear resistance and extend service life. Multiple actuation options provide flexibility for different industrial automation systems and control requirements.

API600 High Pressure Globe Valve Machine Structure and Core Stations

Manufacturing begins with forging or casting the body, bonnet, disc, and stem using high strength materials. Core stations include heat treatment and CNC machining of sealing faces, stem threads, guide areas, and flow passages. Hardfacing is applied to seat and disc surfaces for durability. Assembly stations install the disc, stem, packing system, bonnet, and actuation components. Final operations include pressure testing, surface finishing, cleaning, marking, and packaging to ensure precision, sealing integrity, and reliable performance.
