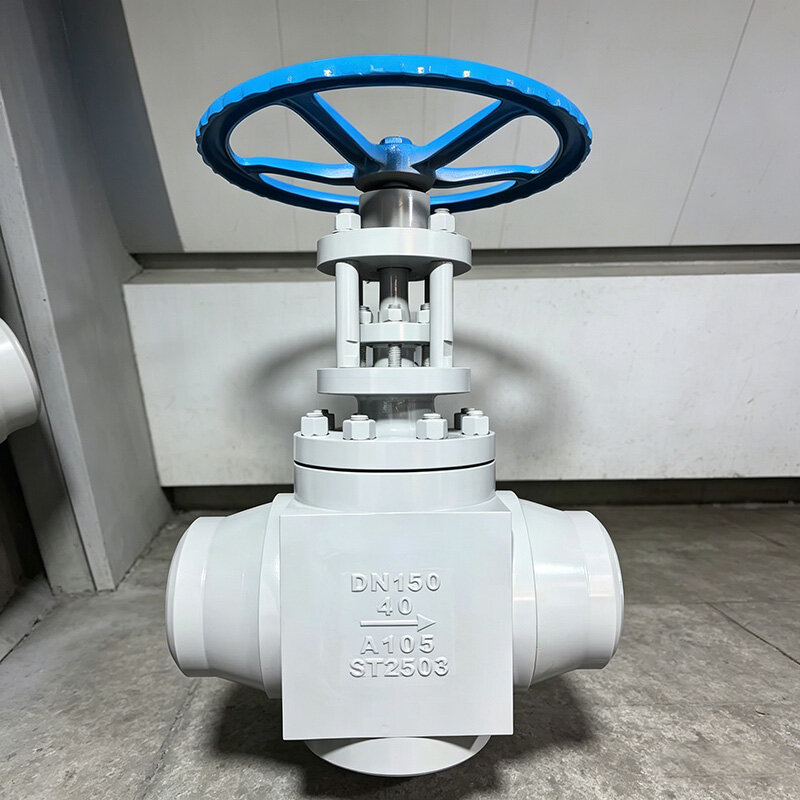

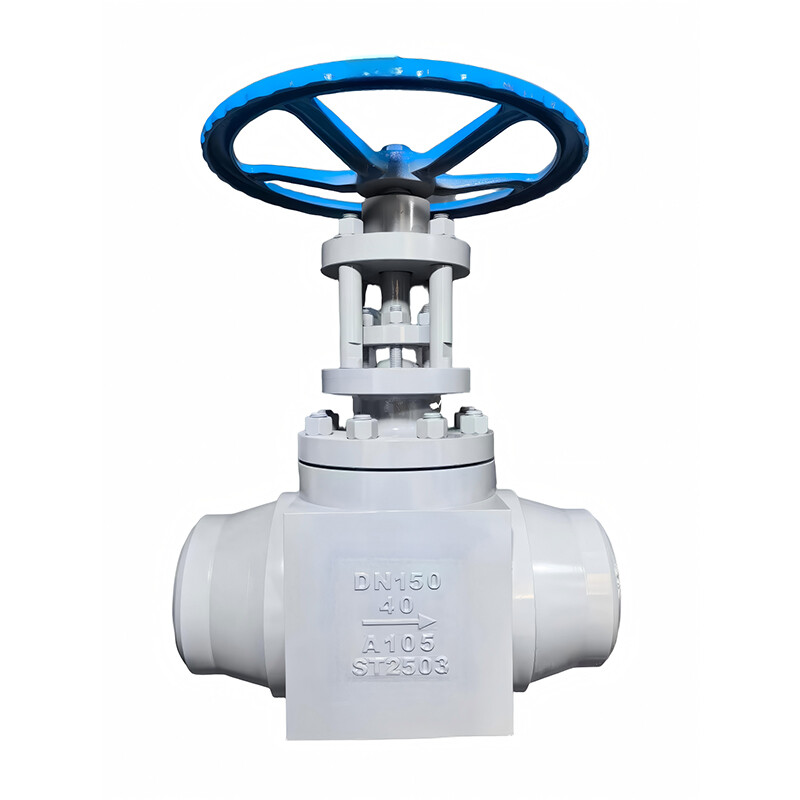

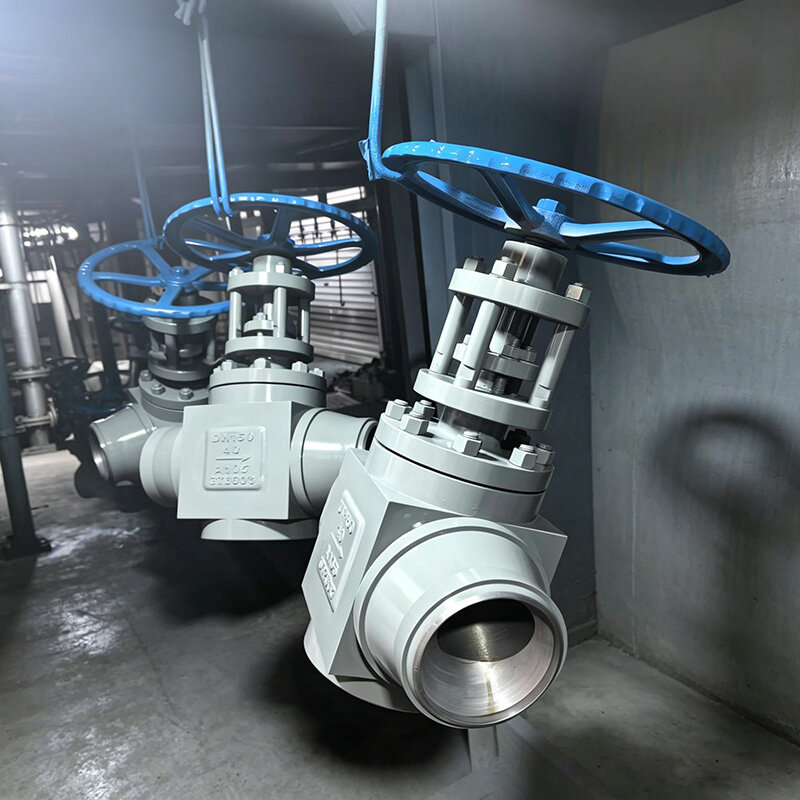

A105 Russian GOST Integral Forged Globe Valve with Replaceable Seat

Product Overview

The A105 Russian GOST Integral Forged Globe Valve with Replaceable Seat is a professional high-pressure industrial regulating and cut-off valve tailored for Russian and CIS regional pipeline projects. Manufactured in strict accordance with Russian GOST3326, GOST5762 and GOST356 industrial standards, this valve adopts one-piece integral forging technology with premium ASTM A105 carbon steel, completely avoiding porosity, sand holes and other casting defects of traditional cast valves. Different from ordinary fixed-seat globe valves, this model is equipped with a detachable replaceable valve seat, supporting on-site quick replacement without pipeline disassembly, which greatly reduces later operation and maintenance costs. It is widely applicable for high-temperature steam, natural gas, fuel oil and industrial water medium cut-off and flow regulation, serving as the preferred supporting valve for thermal power, petrochemical and municipal heating projects in Russia, Kazakhstan, Belarus and other CIS countries.

Adopting integral hot forging molding, the A105 valve body features compact internal grain structure, excellent pressure resistance and structural stability, adapting to long-term high-pressure and thermal cycle working conditions. The optimized internal flow channel reduces medium flow resistance and erosion. With full GOST standard compliance in overall dimensions, pressure level and testing standards, the valve can pass local EAC certification and project acceptance, perfectly matching the design requirements of Russian standard industrial pipelines.

Core Product Features

1. Full Russian GOST Standard Certification
This forged globe valve fully complies with Russian official GOST series standards including GOST3326, GOST5762 and GOST356. All pressure grades, overall dimensions, welding/flange sizes and hydrostatic test procedures strictly follow CIS industrial specifications. It supports EAC customs clearance certification, fully meeting the bidding and acceptance standards of large-scale thermal power, petrochemical and energy projects in Russia and Central Asian countries.

2. Premium A105 Integral Forged Steel Structure
Constructed from ASTM A105 carbon steel through integral hot forging process. Compared with conventional cast steel valves, the forged body boasts higher density, stronger tensile strength and better fatigue resistance. It can stably resist long-term pipeline pressure fluctuation and high-temperature medium impact, effectively avoiding structural deformation and body cracking, ensuring long-cycle stable operation of industrial pipelines.

3. Unique Replaceable Valve Seat Design
Breaking the structural limitation of traditional integral seat globe valves, this valve adopts a modular detachable replaceable seat structure. When the sealing surface is worn, scratched or eroded by medium after long-term use, the seat can be replaced directly on site by opening the bonnet, without cutting pipelines or removing the entire valve. It greatly shortens maintenance downtime and reduces spare parts replacement cost, solving the pain point of difficult maintenance of traditional globe valves.

4. Excellent High and Medium Pressure Resistance
Covering full GOST pressure grades from PN16 to PN160, the thickened forged valve body is optimized by finite element pressure analysis. It maintains stable sealing and structural performance under long-term high-pressure working conditions, suitable for various medium and high-pressure industrial pipeline systems. The overall structure is designed to resist pressure surge and medium impact, with ultra-high operational safety.

5. Diversified Connection Methods for GOST Pipelines
Support multiple standard connection forms including GOST standard flange, BW butt welding, SW socket welding and NPT thread. It can be seamlessly connected with various mainstream Russian standard pipelines and pipe fittings, adapting to different on-site installation environments such as high-pressure welding pipelines, threaded instrument pipelines and flange fixed piping systems.

6. OS&Y Rising Stem Anti-Corrosion Structure
Adopts outside screw and yoke rising stem design, which isolates the threaded part from high-temperature and high-pressure media to prevent oxidation, corrosion and jamming. The visible stem travel clearly displays the valve opening and closing state, facilitating on-site operation and inspection. Equipped with multi-layer high-temperature resistant flexible graphite packing, it achieves reliable external zero leakage under variable temperature and pressure conditions.

7. Wide Working Condition Adaptability
Applicable for working temperature range from -29℃ to 425℃, compatible with various industrial media such as superheated steam, natural gas, fuel oil, compressed air and industrial circulating water. It can realize precise flow regulation and reliable one-way cut-off, with strong versatility in industrial pipeline systems.

Technical Specifications

Installation, Operation & Maintenance Notes

1. Standard Operation Guidelines
This GOST A105 forged globe valve is mainly used for pipeline medium cut-off and flow regulation. It is forbidden to operate beyond the rated PN pressure and 425℃ high temperature limit, so as to avoid A105 material fatigue deformation and sealing failure. Long-term small opening throttling operation should be reduced to prevent severe erosion of the replaceable seat sealing surface.

2. Standard GOST Pipeline Installation
Install the valve with the stem vertically upward, and strictly align with the medium flow direction marked on the valve body. For BW welded and flange connection methods, construction shall be carried out in accordance with GOST pipeline installation specifications to ensure connection tightness. Reserve sufficient space for later seat replacement and daily maintenance during installation.

3. Replaceable Seat Maintenance Specifications
Before replacing the valve seat, ensure the pipeline is completely depressurized and the medium is fully discharged. Disassemble the bonnet to take out the worn seat and install a new matching seat insert. After replacement, conduct pressure test again to ensure zero leakage sealing performance, avoiding hidden dangers of pipeline medium leakage.

4. Daily Routine Maintenance
Regularly lubricate the OS&Y rising stem threads with high-temperature anti-seize grease to ensure flexible opening and closing. Check the packing box and sealing parts regularly, and replace aging accessories in time. For long-term operating valves, conduct regular pressure retention and sealing inspection to ensure stable pipeline operation.

Applications

• Russian & CIS Thermal Power Industry: Boiler auxiliary steam pipelines, circulating water systems, high-temperature heat supply pipeline cut-off and regulation equipment

• Petroleum & Petrochemical Engineering: Refinery fuel oil transmission pipelines, natural gas process pipelines, medium-pressure reaction system piping

• Municipal Heating Projects: Central heating high-temperature hot water pipelines, steam pipe network safety cut-off and flow control valves

• Industrial Manufacturing Systems: Factory compressed air pipelines, industrial water circulation systems, medium-pressure process fluid delivery piping

• Central Asian Energy Projects: CIS regional oil and gas transmission pipelines, energy station supporting pipeline isolation equipment

Why Choose Our BS1873 Class 600 WCB Globe Valve?

✅ Full GOST Russian Standard Compliance — Strictly manufactured per GOST industrial standards, support EAC certification, fully adapt to CIS regional engineering bidding and acceptance.

✅ High-Strength A105 Integral Forged Body — No casting defects, excellent pressure and temperature resistance, far more durable than ordinary cast steel valves.

✅ Core Replaceable Seat Structure — On-site quick seat replacement, no pipeline disassembly required, greatly reducing maintenance time and cost.

✅ Multi-Purpose Pipeline Adaptability — Multiple connection methods and complete pressure grades, matching all mainstream GOST standard pipelines.

✅ Stable High-Temperature Sealing Performance — High-temperature resistant graphite packing + hard alloy sealing pair, long service life and zero leakage.

✅ Customizable Industrial Solutions — Various operation modes optional, support personalized customization for special working conditions.

Order & Certification Information

MOQ: 1 Unit
Production Lead Time: 12-25 working days for standard GOST specifications
Supporting Certificates: EN10204 3.1 Material Certificate, GOST Standard Test Report, ISO9001 Quality Certificate, EAC Certification Document
Export Packaging: Anti-rust protection treatment + Reinforced fumigation-free wooden export case
Quality Warranty: 12-month quality warranty + lifelong professional technical support

Contact Us for customized specifications, special pressure and temperature parameters and bulk preferential prices of A105 Russian GOST integral forged globe valves with replaceable seat.

What Is a Cast Steel Flanged Globe Valve

A Cast Steel Flanged Globe Valve is a linear motion valve used for regulating and isolating flow in industrial piping systems. It is manufactured from cast steel, providing strong mechanical performance and durability under pressure and temperature conditions. The valve uses a disc that moves against a seat to control flow accurately. Flanged end connections ensure secure installation and easy maintenance. It is widely used in oil and gas, chemical processing, power plants, and general industrial services.

Why the Cast Steel Flanged Globe Valve Matters

This valve is important because it provides reliable throttling performance and stable shutoff in demanding operating environments. Cast steel construction ensures strength, toughness, and resistance to pressure fluctuations. The flanged design simplifies pipeline integration and maintenance. Its precise flow control capability helps maintain stable system operation and protects downstream equipment from irregular flow conditions, making it a key component in industrial process control systems.

Common Product Types by Cast Steel Flanged Globe Valve

Common product types include standard pattern globe valves, angle globe valves, and Y pattern globe valves. Bonnet configurations may include bolted bonnet, welded bonnet, and pressure seal bonnet designs depending on service conditions. Manual, gear operated, electric, and pneumatic actuated versions are available. Different trim materials and hardfaced seating surfaces are used to handle high temperature, corrosive media, and erosive service environments.

Key Advantages of Cast Steel Flanged Globe Valve

The valve offers accurate flow regulation, reliable sealing, and strong structural integrity. Cast steel construction provides excellent durability and resistance to mechanical stress. Flanged ends ensure secure connections and simplify maintenance procedures. Its internal design allows precise throttling control and stable operation. With suitable materials and configurations, the valve performs effectively in high pressure, high temperature, and corrosive applications.

Cast Steel Flanged Globe Valve Machine Structure and Core Stations

Manufacturing begins with casting the body, bonnet, disc, and stem from selected steel materials. Core stations include heat treatment and CNC machining of sealing surfaces, stem threads, guide areas, and flow passages. Hardfacing may be applied to improve wear resistance. Assembly stations install the disc, stem, packing system, bonnet, and operating mechanism. Final operations include pressure testing, surface treatment, cleaning, marking, and packaging to ensure dimensional accuracy and reliable sealing performance.
