GOST Cryogenic Steel Flanged Pneumatic Globe Valve

Product Overview

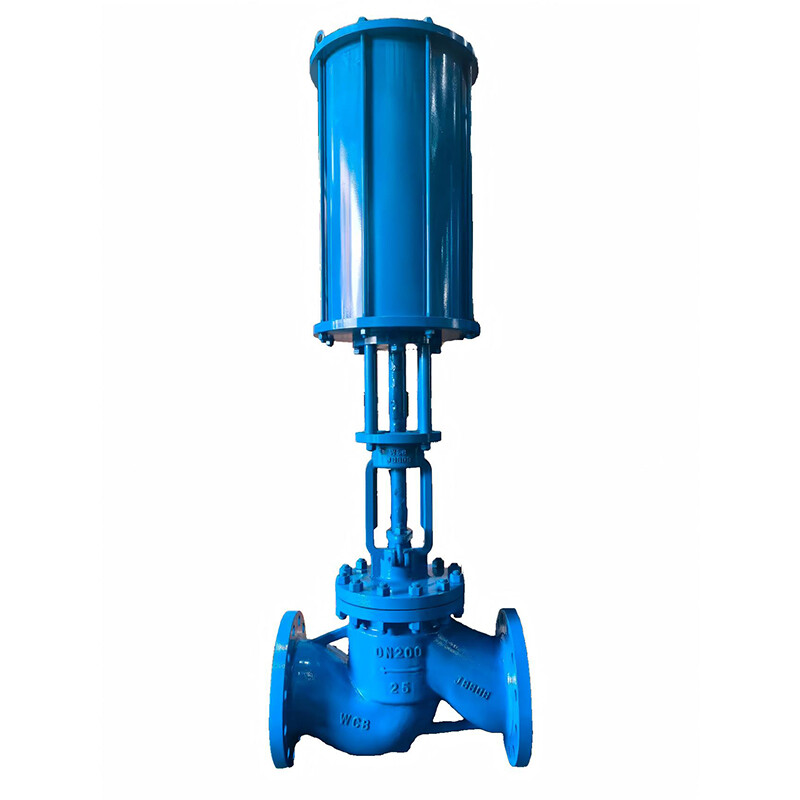

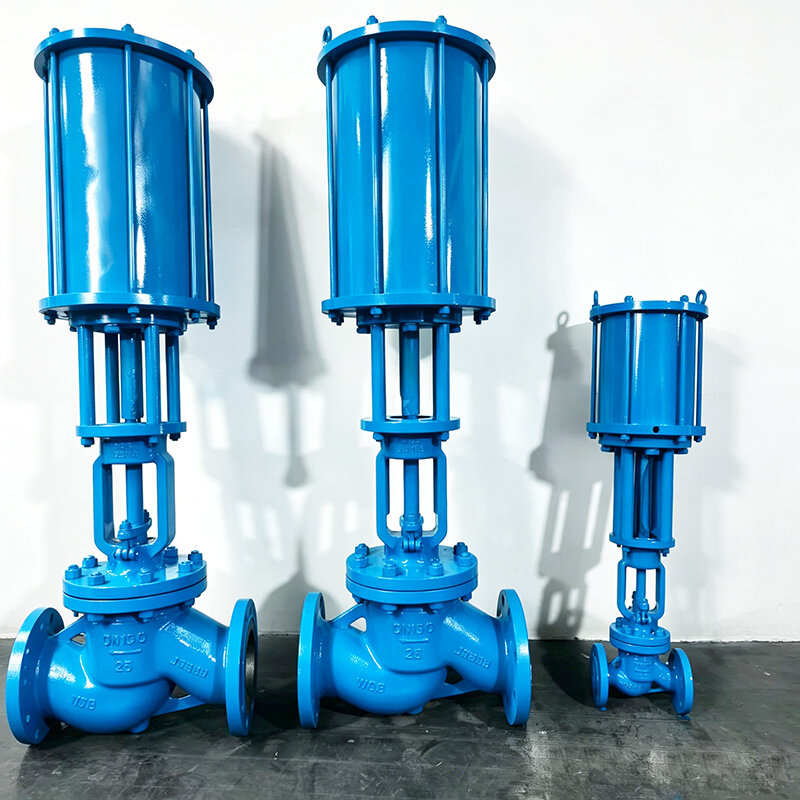

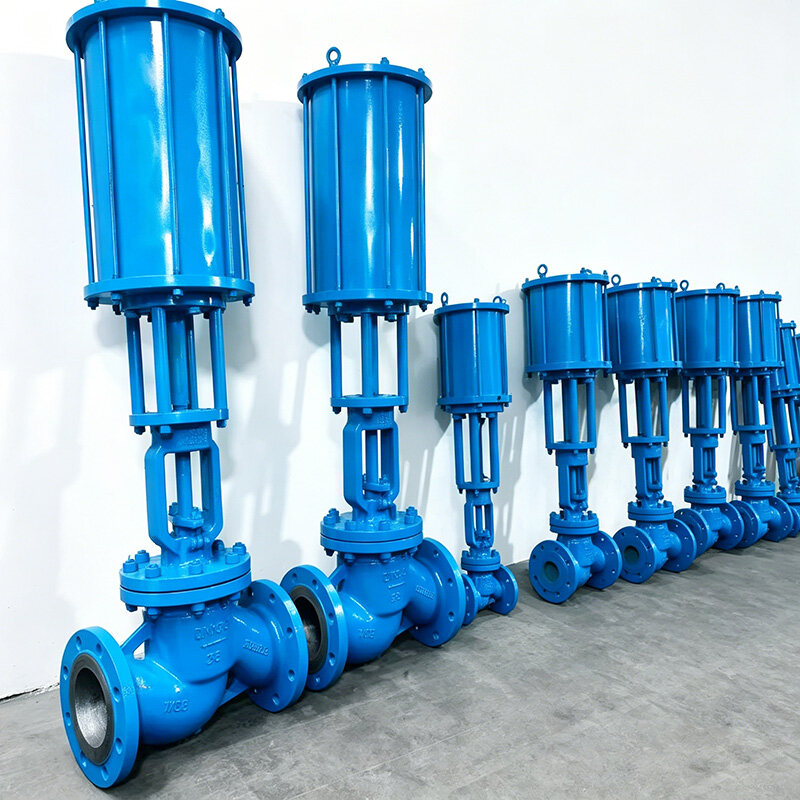

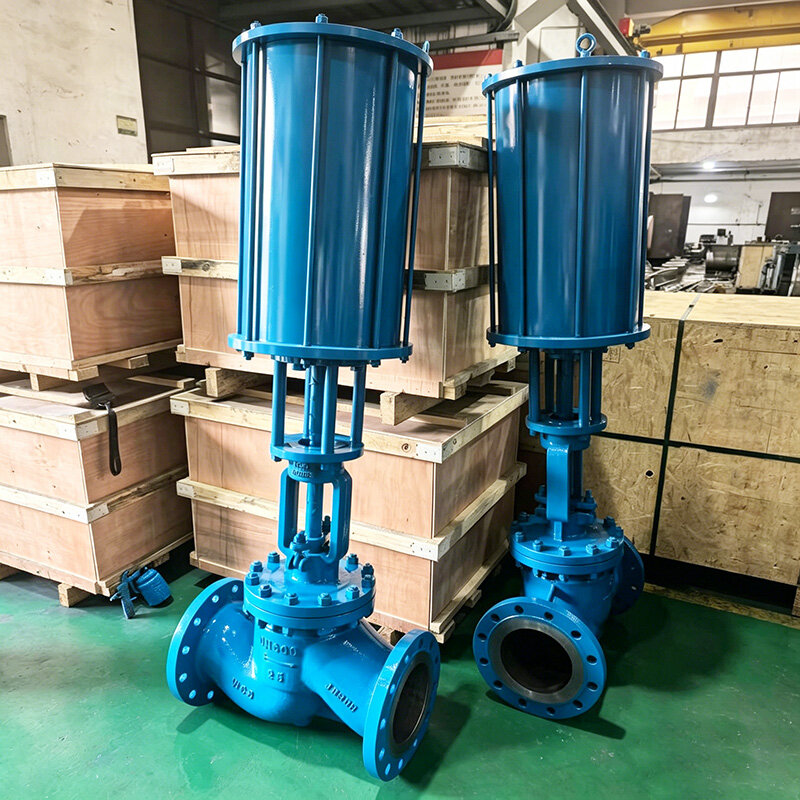

The GOST Cryogenic Steel Flanged Pneumatic Globe Valve is a high-performance low-temperature flow control valve engineered for extreme cold environments, fully compliant with Russian GOST standards (GOST 34294-2017, GOST 12815, GOST 9544) and Customs Union regulations (TR CU 010/012/032) . Constructed from premium cryogenic steel grades (1.4301/304, 1.4404/316L austenitic stainless steel or 09G2S low-temperature carbon steel), this valve features GOST 12815/EN 1092-1 flanged connections, a compact globe valve structure, and an integrated pneumatic actuator for precise remote control. Rated for PN10-PN40 (1.0-4.0 MPa) and operating temperatures ranging from -196℃ to 150℃ (-320°F to 302°F), it delivers tight shutoff (GOST 9544 Class A / API 598 Class VI), excellent cryogenic toughness, and reliable performance in handling LNG (liquefied natural gas), LOX (liquid oxygen), liquid nitrogen, and other low-temperature media. Widely trusted in Russian LNG terminals, petrochemical plants, and Central Asian industrial refrigeration systems, it balances GOST compliance, cryogenic material performance, and pneumatic control efficiency for critical low-temperature flow regulation applications.

Core Product Features

1.GOST & Customs Union Compliance for Russian Markets

Fully adheres to GOST 34294-2017 (cryogenic pipeline valves) — the core Russian standard for low-temperature valves (operating temperatures -50℃ to -270℃) , covering design, materials, testing, and safety requirements. Complies with GOST 12815 (flanged steel valves), GOST 9544 (valve leakage testing), and GOST 15150-69 (climatic design for temperate/cold regions: -60℃ to +40℃) . Meets Customs Union TR CU 010/012/032 regulations for industrial safety, ensuring seamless import and installation in Russia, Kazakhstan, Belarus, and other Eurasian Economic Union (EAEU) countries. Leakage class meets GOST 9544 Class A (tight shutoff for cryogenic media) and API 598 Class VI, preventing cold loss and environmental hazards.

2.Cryogenic Steel Construction for Extreme Low Temperatures

Available in two primary cryogenic material options to match application requirements:

·Austenitic Stainless Steel (1.4301/304, 1.4404/316L): Ideal for ultra-low temperatures down to -196℃, featuring excellent toughness (impact energy ≥27 J at -196℃) and corrosion resistance . 1.4404/316L grade includes 2-3% molybdenum for enhanced chloride pitting resistance, suitable for LNG and marine environments.

·Low-Temperature Carbon Steel (09G2S): For moderate low temperatures (-46℃ to 150℃), cost-effective with tensile strength 390-510 MPa and yield strength ≥245 MPa , compliant with GOST 19904-90 for cryogenic service.

All materials maintain structural integrity and avoid brittle fracture in extreme cold, with austenitic stainless steel offering superior performance in ultra-cold (-100℃ to -196℃) applications such as LNG/LOX handling .

3.GOST Flanged Connections for Secure Sealing

Equipped with GOST 12815/EN 1092-1 Type 11 flanged ends (weld neck), compatible with PN10-PN40 pressure classes and DN15-DN500 size range . Flange sealing face adopts RF (Raised Face) per GOST 28159-99, paired with stainless steel spiral wound gaskets (with graphite filler) for reliable sealing under temperature cycling and low-temperature shrinkage. Flanged design enables easy assembly/disassembly for maintenance, suitable for cryogenic systems where welded connections are impractical.

4.PN10-PN40 (1.0-4.0 MPa) Pressure Rating

Rated for working pressures up to 4.0 MPa (580 psi) at ambient temperature, with pressure-temperature ratings aligned to GOST 12815 and ASME B16.34 .At -196℃ (-320°F), the valve retains full pressure capacity (PN40: 4.0 MPa) for ultra-cold high-pressure applications such as LNG transfer lines. The reinforced valve body (thickened walls per GOST 34294-2017) handles thermal stress from cryogenic media, preventing deformation and leakage during rapid cooling/heating cycles.

5.Integrated Pneumatic Actuator for Precise Control

Equipped with a heavy-duty pneumatic actuator (single-acting/double-acting) designed for cryogenic environments, featuring:

·Control signal: 4-20 mA proportional control (with Tissin TS900 or equivalent positioner) or on-off control

·Action type: Single-acting (fail-safe: NC/ NO) or double-acting

·Operating pressure: 0.4-0.7 MPa (air supply)

·Protection class: IP65/IP67, with low-temperature lubrication (-40℃ compatible)

·Accessories: Limit switch, position indicator (EPI with dry contacts), manual override for emergency operation

The actuator enables precise flow regulation (globe valve linear motion) and remote control, ideal for unattended cryogenic facilities such as LNG terminals and industrial refrigeration systems .

6.Cryogenic-Optimized Design for Reliability

·Extended bonnet: Reduces heat transfer from ambient to low-temperature media, preventing valve stem freezing and packing damage.

·Low-temperature packing: Flexible graphite + PTFE composite packing, resistant to cold brittleness and ensuring stem sealing at -196℃.

·Tight metal-to-metal seal: Valve disc/seat overlay-welded with Stellite 6 alloy (hardness HRC 48-62), wear-resistant and compatible with cryogenic media, meeting GOST 9544 Class A leakage standards .

·Compact structure: Globe valve design with short face-to-face dimensions (per GOST 12820), saving installation space in dense cryogenic piping systems.

7.Long Service Life & Safety Features

Designed for 20-year service life under normal operating conditions , with key components (stem, disc, seat) made of corrosion-resistant cryogenic materials. Anti-static device (optional) discharges static electricity from flowing cryogenic media, reducing explosion risks. Complies with GOST 12.2.052-81 safety requirements for oxygen service (when used with LOX media), ensuring operational safety in hazardous low-temperature environments.

Technical Specifications

Applications

• LNG/LOX Terminals: LNG storage and transfer lines, liquid oxygen/liquid nitrogen distribution systems

• Petrochemical Industry: Cryogenic separation processes, refrigeration systems, low-temperature reactor feed lines

• Russian Industrial Plants: Chemical refrigeration, natural gas liquefaction, cold storage facilities (compliant with GOST 34294-2017)

• Customs Union Projects: Central Asian oil & gas facilities, Kazakhstani LNG plants, Belarusian chemical refineries

• Marine & Offshore: Russian offshore LNG platforms, cryogenic cargo ship piping systems

• Food & Pharmaceutical: Industrial freeze-drying equipment, low-temperature storage pipelines

• Metallurgy: Cryogenic treatment of metals, liquid nitrogen cooling systems

Why Choose Our GOST Cryogenic Steel Pneumatic Globe Valve?

✅ GOST & TR CU Compliance: Meets Russian and Customs Union standards, eliminating import barriers for EAEU markets

✅ Ultra-Cold Performance: -196℃ rated cryogenic steel (1.4301/1.4404) resists brittle fracture and cold loss

✅ Precise Pneumatic Control: 4-20 mA proportional control with IP67 actuator, ideal for unattended cryogenic facilities

✅ Tight Shutoff for Cryogenics: GOST 9544 Class A / API 598 Class VI leakage rating, preventing media waste

✅ Flanged Reliability: GOST 12815 flanges ensure secure sealing under temperature cycling

✅ Proven Russian Market Performance: Trusted in LNG terminals and petrochemical plants across Russia and Central Asia

Order & Certification Information

• Minimum Order Quantity (MOQ): 1 Unit

• Lead Time: 20~35 Working Days (Standard Sizes); 35~50 Working Days (Customized Cryogenic Grades)

• Payment Terms: T/T (30% Advance + 70% Against B/L Copy), L/C, Western Union

• Shipping Method: Sea Freight (FCL/LCL), Air Freight (Urgent Orders for Cryogenic Projects)

• Packaging: Insulated Anti-Corrosion Coating + Wooden Case + GOST/Export Labeling (Compliant with GOST 19815-93)

• After-Sales Service: 18-Month Warranty, Russian-Speaking Technical Support, Spare Parts Supply, On-Site Installation Guidance

• Certifications Provided: Material Test Certificate (EN 10204 3.1), GOST 9544 Cryogenic Test Report, ISO 9001 Certificate, TR CU Compliance Certificate, GOST 34294-2017 Conformity Document

Contact Our GOST Cryogenic Valve Experts for customized quotes, 2D/3D drawings (per GOST 12820), cryogenic material certificates, or Russian-language technical documentation. We specialize in low-temperature valve solutions for Russian and Eurasian markets — let us tailor a product for your LNG, petrochemical, or industrial refrigeration project.
