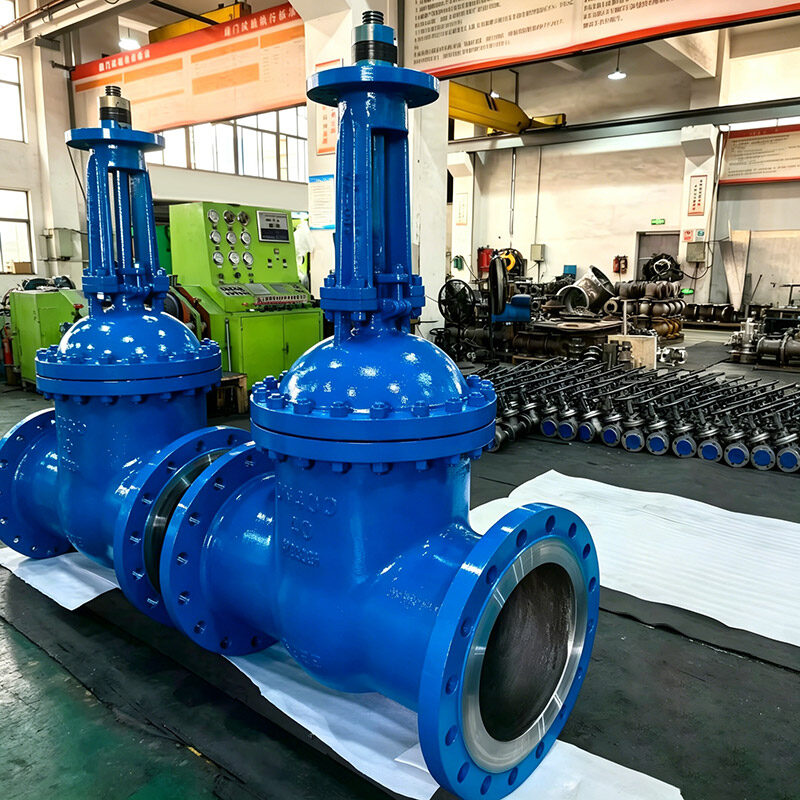

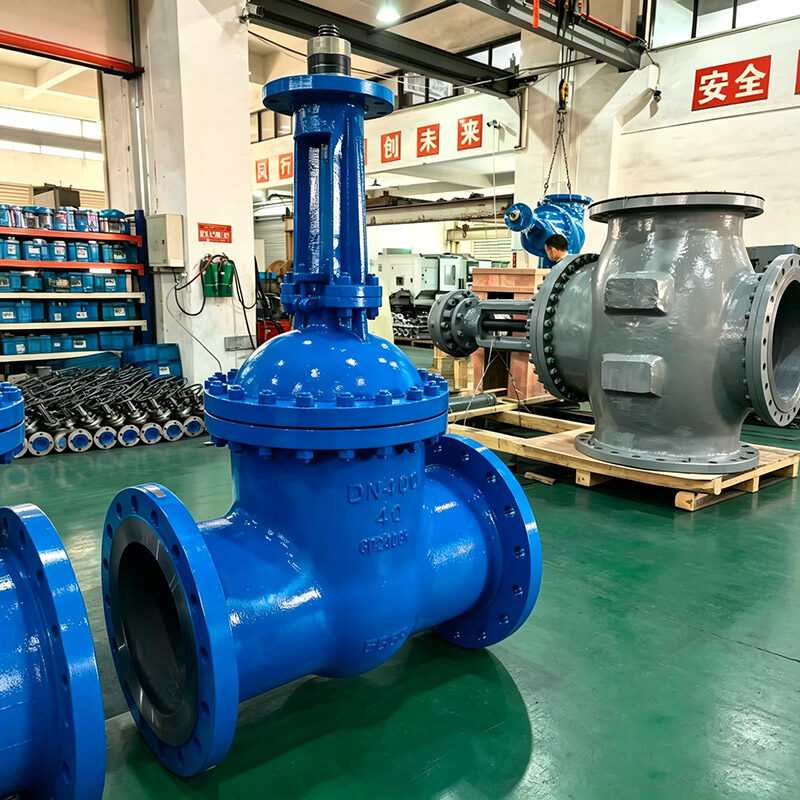

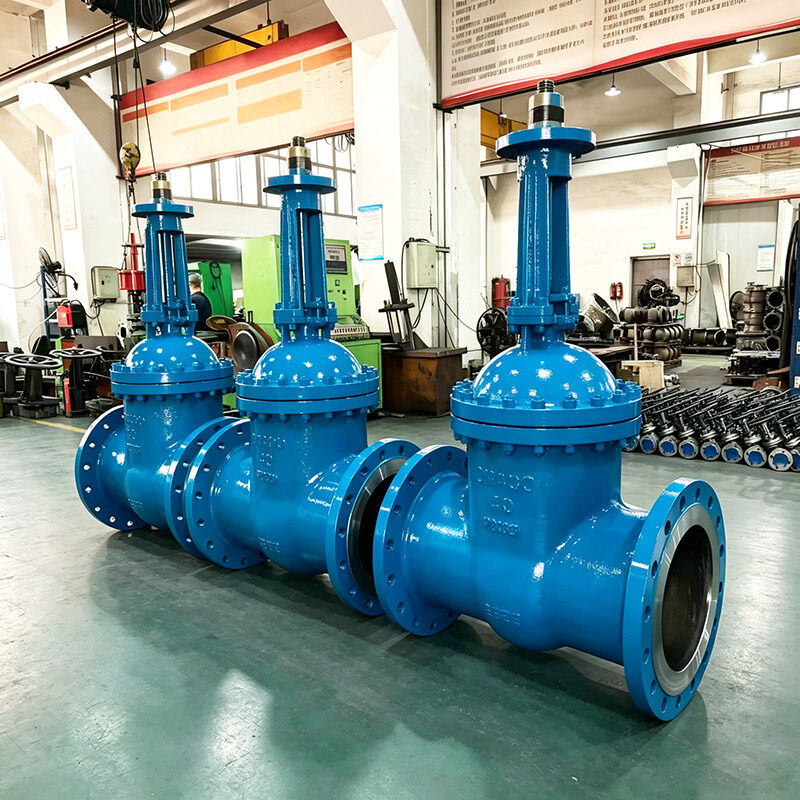

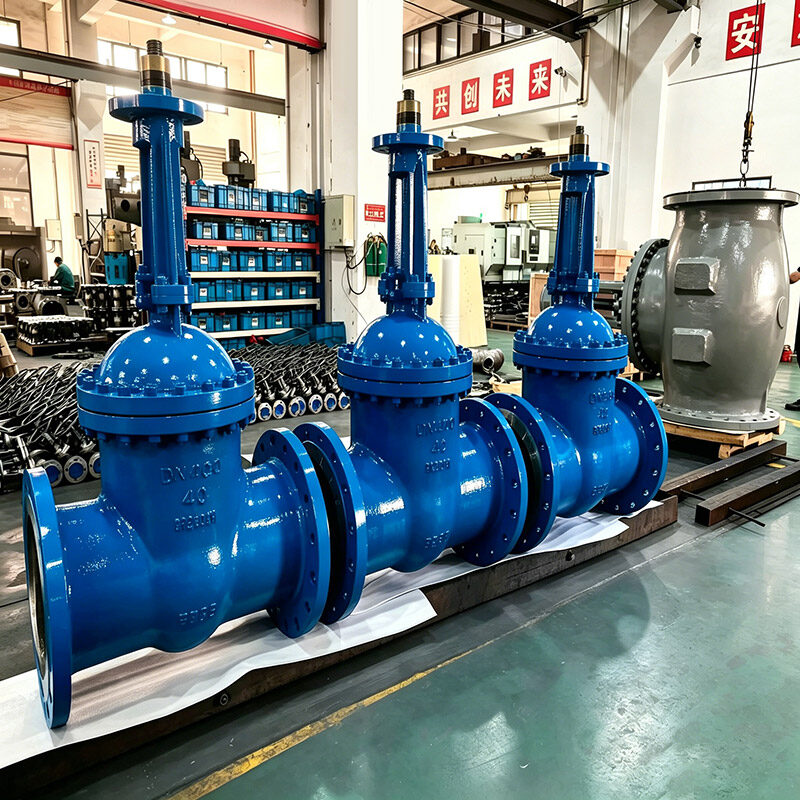

WCB Electric Flanged PN40 DIN Gate Valve

Product Overview

The WCB Electric Flanged PN40 DIN Gate Valve is a medium-to-high pressure flow control valve engineered for European industrial systems, fully complying with German DIN standards and EN specifications. Constructed with premium ASTM A216 WCB carbon steel — a cost-effective and robust material ideal for non-corrosive media — this valve features PN40 (4.0 MPa / 580 psi) pressure rating, EN 1092-1/DIN 2503 flanged connections, and an integrated electric actuator for remote automatic control. Operating within a temperature range of -29℃ to 425℃ (-20°F to 800°F), it adopts a full-port, OS&Y (Outside Screw and Yoke) rising stem design, delivering minimal flow resistance, tight shutoff (EN 12266-1 Class IV), and long-term durability in handling water, steam, oil, and natural gas. Widely trusted in European process industries, power generation, municipal engineering, and oil & gas pipelines, it balances DIN standard compliance, operational efficiency, and electric control convenience for critical medium-high pressure applications.

Key Features & Advantages

1.Premium WCB Cast Steel Construction

Manufactured from ASTM A216 WCB carbon steel (equivalent to EN 10222-2 P250GH), with chemical composition: C ≤0.25%, Mn 0.50-1.00%, Si 0.15-0.40% ; mechanical properties: tensile strength 485-655 MPa, yield strength ≥275 MPa, elongation ≥20% . The cast structure ensures uniform wall thickness per DIN 3352 standards, complying with PN40 pressure-temperature ratings (EN 1092-1 Table 1) and capable of withstanding cyclic pressure loads. WCB offers excellent cost-effectiveness while maintaining structural integrity, making it the preferred choice for DIN-standard valves in non-corrosive industrial environments up to 425℃.

2.DIN/EN Standard Compliance

Fully adheres to DIN 3352 (German standard for cast steel gate valves) for structural design, DIN 3202 for face-to-face dimensions, and DIN 3230 for testing requirements . Flanged connections comply with EN 1092-1 Type 11 (weld neck flange) and DIN 2503 (PN40 flange dimensions), ensuring seamless compatibility with European pipeline systems . Meets EN 12266-1 leakage standards (Class IV) and ISO 15848 fugitive emissions requirements, guaranteeing reliability in European industrial safety regulations. The standard-compliant design enables global interchangeability with DIN-certified valves.

3.PN40 (4.0 MPa) Medium-High Pressure Rating

Rated for working pressure up to 4.0 MPa (580 psi) at ambient temperature, with pressure-temperature ratings aligned to EN 1092-1 and DIN 3352 specifications . At 300℃ (572°F), the valve retains a working pressure of 3.1 MPa (450 psi), ensuring stable performance in medium-high pressure systems such as boiler feedwater lines, process pipelines, and steam distribution networks . The reinforced WCB body and precision-engineered internal components handle pressure fluctuations without deformation or leakage.

4.EN 1092-1/DIN 2503 Flanged Connections

Equipped with flanged ends per EN 1092-1 Type 11 (weld neck) and DIN 2503 (PN40), featuring Form B (Raised Face) sealing surface . Compatible with 304+graphite or spiral wound gaskets, the RF face ensures reliable sealing against pressure variations. The flanged design facilitates easy assembly, disassembly, and maintenance — critical for periodic inspection of industrial valves — and is available in sizes from DN20 to DN400 (3/4" to 16") .

5.Electric Actuator for Remote Control

Integrated with a heavy-duty electric actuator (AC220V/380V or DC24V) designed for DIN-standard valves, featuring output torque of 100~2000 N·m (customizable for large sizes), full-stroke time of 5~30 seconds, and support for on-off or proportional control (4-20mA signal) . With IP67 protection class, the actuator is dustproof and waterproof, integrated with overload protection, limit switches, and manual emergency override — ideal for unattended or hazardous areas in European industrial plants . Direct mount design (per DIN 3337) ensures easy installation and alignment with the valve stem.

6.Full-Port OS&Y Design for Efficiency & Safety

Features a full-port flow channel that minimizes pressure drop by up to 30% compared to standard-bore valves, optimizing energy efficiency for bulk fluid transfer . The OS&Y (Outside Screw and Yoke) rising stem design keeps threads isolated from media to avoid corrosion, extending service life, while the visible stem position provides clear open/closed indication for operational safety . The rigid wedge disc with precision-machined seating surfaces (13Cr or Stellite 6 overlay) ensures tight metal-to-metal sealing (EN 12266-1 Class IV) .

7.Low-Maintenance Bolted Bonnet Design

Bolted bonnet construction with a backseat design allows in-line maintenance — inspection, repair, or replacement of internal components (stem, disc, seat) — without removing the valve from the pipeline . Key components include forged 2Cr13 stainless steel stem (ASTM A182 F6a), high-strength bolts (DIN EN 14399-4 Grade 8.8), and flexible graphite packing for reliable stem sealing . All wetted parts are manufactured from WCB or corrosion-resistant alloys, ensuring long service life in non-corrosive environments.

Technical Specifications

Applications

•Oil & Gas Industry: European Pipeline Networks, Refineries, Natural Gas Transmission

•Power Generation: Thermal Power Plants, Boiler Feedwater Lines, Steam Distribution Systems

•Petrochemical & Chemical Industry: Non-Corrosive Process Pipes, High-Pressure Reactors

•Municipal Engineering: Large-Scale Water Supply, Wastewater Treatment, District Heating

•Industrial Boilers: High-Pressure Steam Supply, Hydraulic Systems

•Marine & Offshore: European Vessel Piping, Offshore Platform Utilities

•HVAC Systems: Large Commercial & Industrial Heating/Cooling Pipelines

Why Choose Our WCB Electric PN40 DIN Gate Valve?

✅ DIN/EN Standard Compliance: Fully meets German and European standards for seamless integration into European industrial systems .

✅ PN40 High-Pressure Reliability: Rated for 4.0 MPa service, stable for medium-high pressure industrial applications .

✅ Remote Electric Control: IP67-protected actuator with proportional control option, ideal for unattended European plants .

✅ Full-Port Low Resistance: Minimizes pressure drop and energy consumption for bulk fluid transfer .

✅ Easy Installation & Maintenance: EN 1092-1 flanges and bolted bonnet enable quick assembly and in-line service .

✅ Cost-Effective Durability: WCB carbon steel balances performance and cost for non-corrosive DIN-standard applications.

Order Information

•Minimum Order Quantity (MOQ): 1 Unit

•Lead Time: 15~30 Working Days (Standard Sizes); 30~45 Working Days (Customized Orders)

•Payment Terms: T/T (30% Advance + 70% Against B/L Copy), L/C, Western Union

•Shipping Method: Sea Freight (FCL/LCL), Air Freight, Express (DHL/FedEx/UPS)

•Packaging: Anti-Corrosion Coating + Plywood Case + Export Labeling (EN Standards Compliant)

•After-Sales Service: 12-Month Warranty, Technical Support, Spare Parts Supply, On-Site Installation Guidance

•Certificates Provided: Material Test Certificate (EN 10204 3.1), DIN 3230 Test Report, ISO 9001 Certificate, CE Certification

Contact our technical sales team for custom quotes, 2D/3D drawings, WCB material certificates, and actuator specifications—we provide tailored DIN-standard valve solutions for your European industrial projects.

What Is a WCB Electric Flanged PN40 DIN Gate Valve

A WCB Electric Flanged PN40 DIN Gate Valve is an automated isolation valve used to open or close the flow of liquids, gases, and steam in industrial pipelines. The body is made from WCB cast carbon steel, which provides high strength and dependable performance in demanding operating conditions. An electric actuator drives the stem and wedge for remote operation. Flanged ends conform to DIN standards, and the PN40 pressure rating is suitable for medium to high pressure service.

Why the WCB Electric Flanged PN40 DIN Gate Valve Matters

This valve is important because it combines reliable shutoff with automated control. Electric actuation allows operators to control the valve from a distance and integrate it into plant control systems. WCB carbon steel offers durability and broad compatibility with common industrial media. DIN flanged connections ensure secure installation and easy maintenance, helping improve efficiency, safety, and process continuity in critical applications.

Common Product Types by WCB Electric Flanged PN40 DIN Gate Valve

Common product types include rising stem gate valves, non rising stem gate valves, and flexible wedge gate valves. Electric actuators may be configured for on off service or modulating control. Optional features include manual override, torque protection, limit switches, and position indicators. Fire safe, low emission, and corrosion resistant trim options are available to meet specialized operating requirements.

Key Advantages of WCB Electric Flanged PN40 DIN Gate Valve

The valve offers low flow resistance, dependable bidirectional sealing, and convenient remote operation. Electric actuation reduces manual labor and provides consistent opening and closing. WCB cast steel delivers strong mechanical properties and long service life. DIN flanged ends simplify installation and replacement. The full port design preserves system efficiency when the valve is fully open, while robust construction reduces maintenance needs.

WCB Electric Flanged PN40 DIN Gate Valve Machine Structure and Core Stations

Manufacturing begins with casting the body, bonnet, wedge, and yoke from WCB carbon steel. Core stations include heat treatment, CNC machining of flange faces, guide slots, sealing surfaces, and stem threads. Assembly stations install the wedge, stem, packing, bonnet, and electric actuator with control components. Final operations include seat lapping, pressure testing, actuator calibration, coating, marking, and packaging to ensure reliable automated performance.
