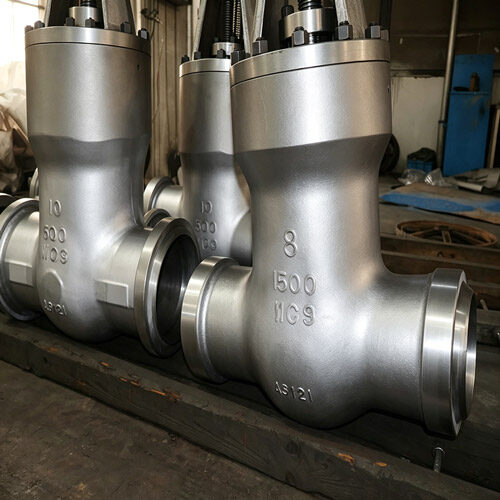

The Imperative of Dye Penetrant Inspection for High-Pressure Self-Sealing Gate Valves

Enhancing Safety & Reliability: The Imperative of Dye Penetrant Inspection for High-Pressure Self-Sealing Gate Valves

Zhejiang Shangtie Valve Co., Ltd., a leading global manufacturer of high-performance industrial valves, today underscores the critical importance of dye penetrant inspection (DPI) in ensuring the structural integrity and long-term reliability of high-pressure self-sealing gate valves. As these valves play a pivotal role in critical applications such as power plants, petrochemical facilities, and oil & gas pipelines, stringent quality control measures, including DPI testing, are indispensable to mitigate risks and safeguard operations.

High-Pressure Self-Sealing Gate Valves: The Backbone of Critical Infrastructure

High-pressure self-sealing gate valves are engineered to withstand extreme conditions, with pressure ratings often exceeding 1500 psi and temperatures reaching 600°C. Their self-sealing design, featuring resilient graphite gaskets or metal-to-metal seals, ensures leak-tight performance even under fluctuating pressures. These valves are the linchpin of industrial systems, regulating the flow of hazardous or high-value media. Any structural flaw, even microscopic cracks or porosity, can lead to catastrophic failures, posing severe safety risks, environmental hazards, and colossal financial losses.

The Science Behind Dye Penetrant Inspection (DPI): Unveiling Invisible Defects

DPI, a non-destructive testing (NDT) method, is a proven technique to detect surface-breaking defects in metallic components. The process involves applying a dye penetrant, typically a brightly colored liquid containing specialized dyes, to the valve’s surface. Capillary action draws the penetrant into minute cracks, pores, or inclusions. After thorough cleaning to remove excess penetrant, a developer is applied, which attracts the trapped dye back to the surface, creating vivid, visible indications of defects. DPI excels in identifying flaws such as fatigue cracks, forging defects, welding porosities, and stress corrosion cracking that may be invisible to the naked eye.

Why DPI is Indispensable for High-Pressure Gate Valves:

1.Material Integrity Validation: Forged steel bodies (e.g., F11, F22, or austenitic stainless steel) used in these valves are susceptible to manufacturing defects. DPI confirms the absence of subsurface flaws that could propagate under cyclic loading.

2.Seal Surface Assurance: The precision-machined sealing surfaces of gate valves demand flawless finishes. DPI ensures that critical sealing areas are free from micro-cracks or pits that could compromise leak-tightness.

3.Compliance with Stringent Standards: Industry codes (API 6D, ASME B16.34) and international regulations mandate NDT for safety-critical components. DPI is a cost-effective yet robust method to meet these requirements.

4.Preventing Catastrophic Failures: Even minor defects can escalate into catastrophic leaks under high pressures. DPI acts as a proactive failsafe, preventing potential disasters and associated downtime.

Zhejiang Shangtie Valve Co., Ltd.’s Commitment to Flawless Quality: DPI in Action

At Zhejiang Shangtie Valve Co., Ltd., DPI is an integral step in our ISO-certified quality management system. Every high-pressure gate valve undergoes rigorous DPI testing, adhering to ASTM E165 and EN 1371-1 standards. Our state-of-the-art testing lab, equipped with automated DPI systems and trained Level II NDT technicians, ensures:

•100% Inspection Coverage: All critical areas, including sealing faces, weld joints, and threaded regions, are scrutinized.

•Traceability & Documentation: Detailed test reports, complete with defect mappings and photographic evidence, accompany each valve, providing clients with full transparency.

•Zero-Tolerance Policy: Any component failing DPI is immediately quarantined and subjected to corrective actions, ensuring only defect-free products reach customers.

Real-World Impact: A Case Study

In a recent project supplying valves for a natural gas pipeline, DPI revealed a hairline crack in a DN300 valve’s body during final inspection. The defect, undetectable visually, would have posed a significant rupture risk under operational pressures. Thanks to DPI, the valve was promptly replaced, preventing a potential disaster and earning the client’s trust in our unwavering commitment to safety.

Industry Leadership Through Innovation

Zhejiang Shangtie Valve Co., Ltd. is pioneering advancements in NDT, exploring hybrid inspection techniques combining DPI with phased array ultrasonics to enhance defect detection sensitivity. Our R&D team collaborates with global certification bodies to refine testing protocols, staying ahead of industry standards to deliver unparalleled product reliability.

Conclusion: Safety First, Quality Assured

As industries demand ever-greater pressures and temperatures, the reliability of high-pressure gate valves is non-negotiable. Dye penetrant inspection stands as a sentinel technology, guaranteeing that every valve leaving our facility meets the highest standards of safety and performance. Zhejiang Shangtie Valve Co., Ltd. remains steadfast in its pledge to prioritize quality, employing the most stringent testing methodologies to protect people, environments, and assets worldwide.

About Zhejiang Shangtie Valve Co., Ltd.:

Zhejiang Shangtie Valve Co., Ltd. is a global leader in the design and manufacture of high-integrity valves, serving energy, chemical, and critical infrastructure sectors for 20 years. With ISO 9001, API 6D, and CE certifications, we specialize in forged steel, exotic alloy, and custom-engineered valves, backed by an unwavering commitment to innovation and quality.
